TK 55711-19-OP-EN
19

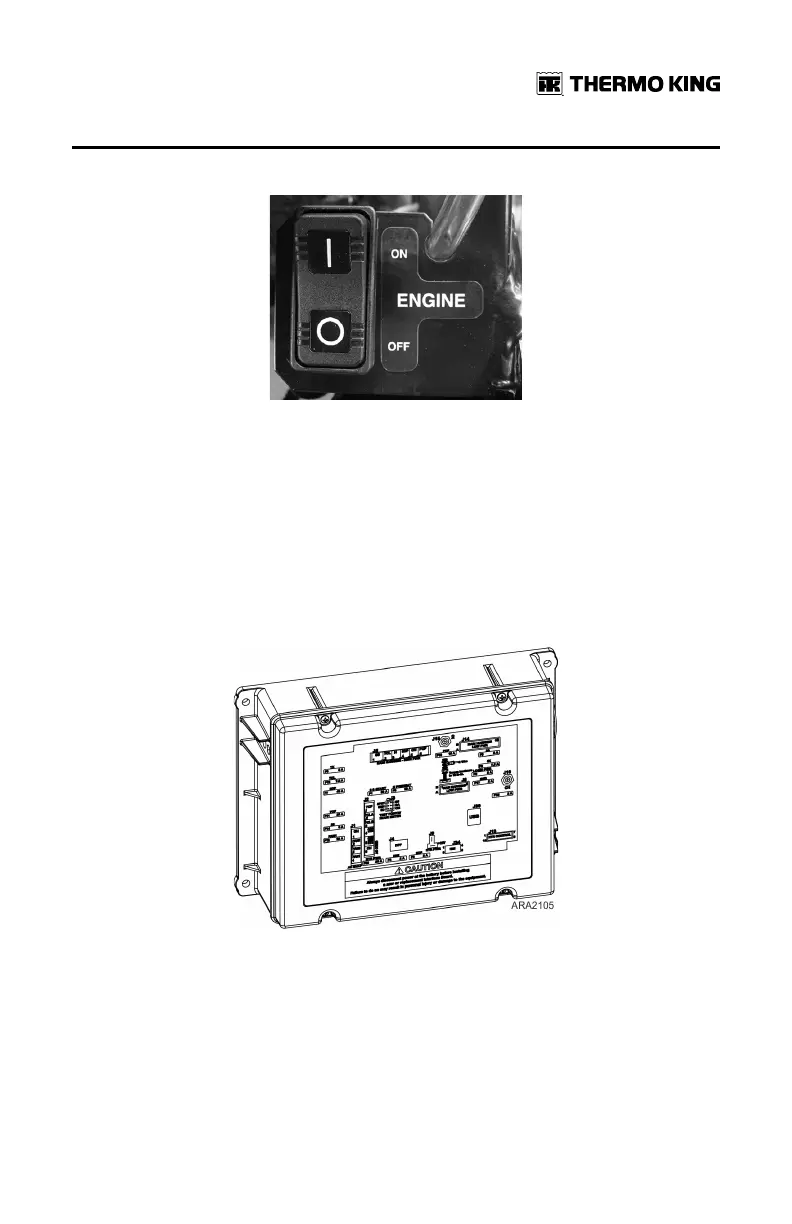

Figure 10. Engine On/Off Switch
Control Box
The control box is typically located in the bunk area. The control box
contains the circuit board and operates on 12 Volt DC supplied by the truck
batteries.
The electrical system is protected by a number of fuses. Most of the fuses
are located inside the control box. Other fuses are located in fuse holders in
wire harnesses. Refer to (“Fuses,” p. 39).
Figure 11. Control Box
UUnniitt DDeessccrriippttiioonn
