Trane GEHE - Page 109

Wiring Diagrams
WSHP-SVX01L-EN 109

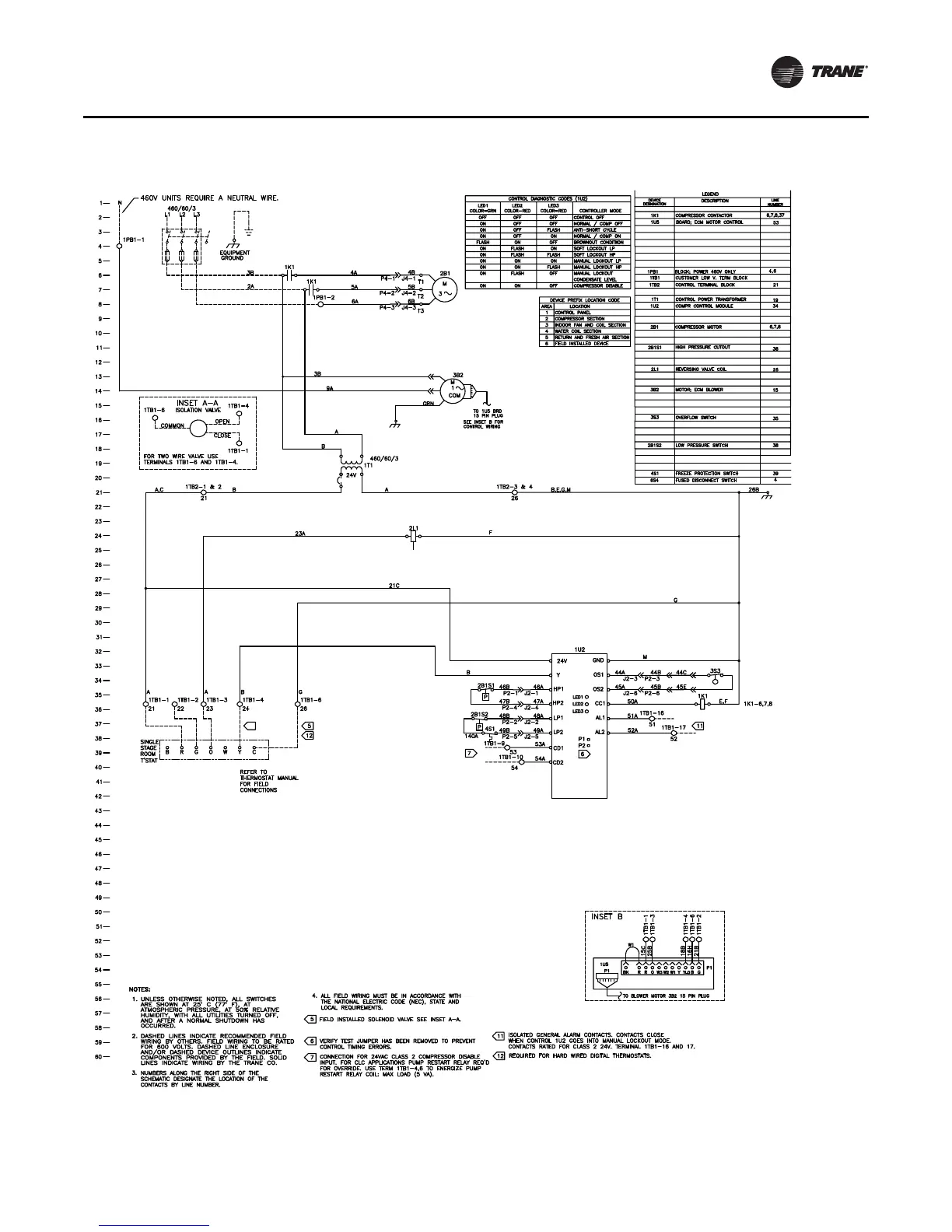

Figure 85. Deluxe 24V - 460V-60 Hz - 3 ph
(a)
- EXH/EXV - (ECM Motor Wiring Diagram)
(a) Wiring diagrams provided in the catalog are generic. A unit specific As Built wiring diagram is located on the unit control panel.
