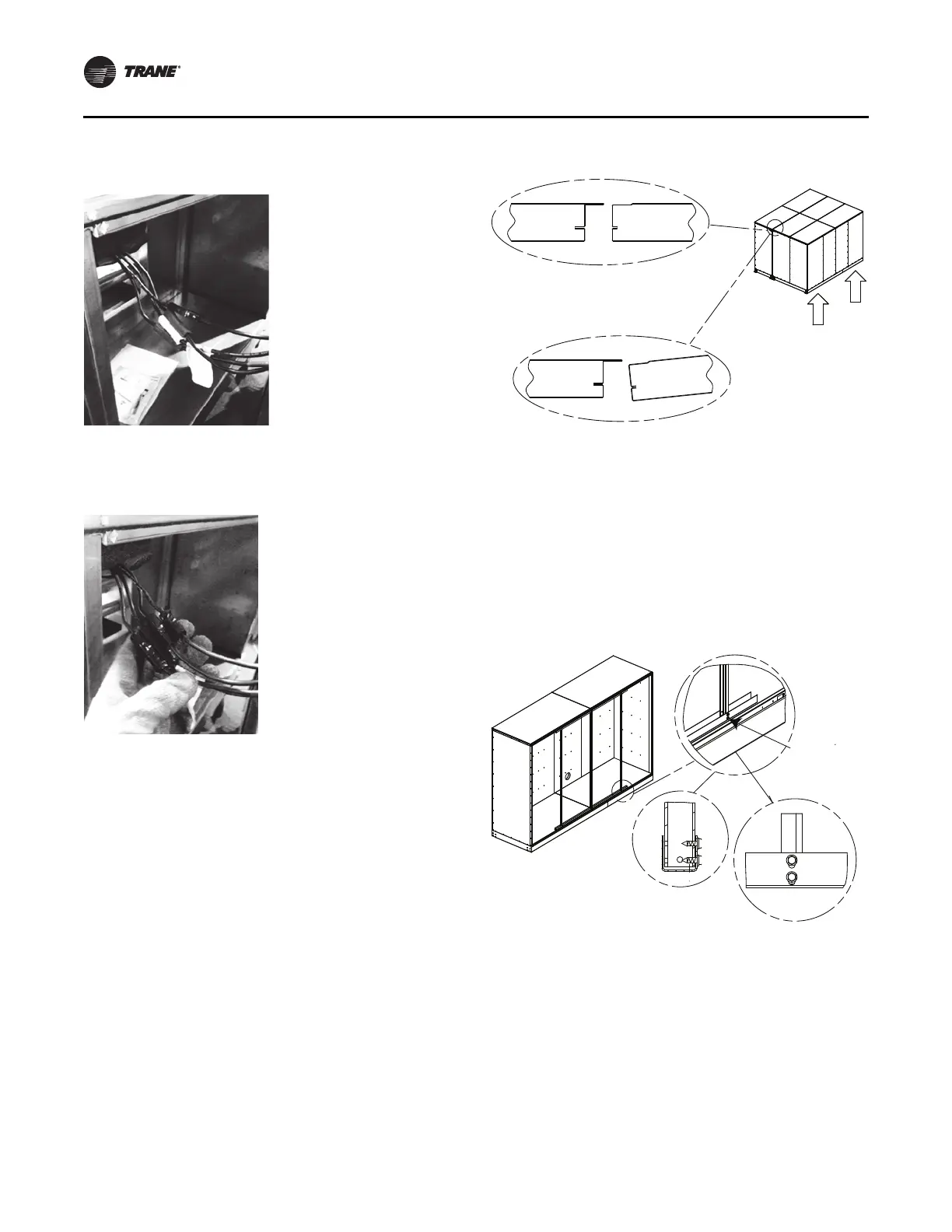

Figure 21. Horizontal section-to-section high voltage
quick connects
Installation - Mechanical
20 CLCH-SVX013B-EN
5. Assemble and seat connections per color code.
Figure 22. Horizontal section-to-section high voltage
quick connects
6. Wrap each connection individually with black electrical
tape.
7. Fully wrap the connection with tape.
8. U
se a bar clamp to pull adjacent shipping section lifting
lugs together.
9. For larger indoor and outdoor units, a wedge block is
p
rov
ided to aid in pulling and aligning the units
together. Attach the wedge blocks to both sides of the
units being pulled together, matching the correct
wedge block with the correct hole pattern. See
Figure 26, p. 21.
10. Verify that the subassembly with
the overhang profile
on the roof is higher than the mating subassembly. If it
is not, raise one end of the subassembly and bring the
unit together. See Figure 23.
11. Due to unlevel floor and platforms,
the roof may be
misaligned as shown in Figure 23. A commo
n solution
is to raise one end of the shipping section to clear the
hemming before pulling the units together.
Figure 23. Roof alignment (indoor unit only)
12. In addition, an adjustment can also be made to the
height of the roof of either subassembly. At the center
(width-wise) of the unit, measure the height of each
adjacent subassembly and verify that the subassembly
with the overlap sheet metal is higher than the mating
subassembly roof. If it is not, adjust the height of either
subassembly by loosening the screws in the vertical
channels or component structure and adjust the height
of the roof. See Figure 24 and Figure 25).
Figure 24. Adjust height of ro
of by adju
sting vertical
channels
Loosen screws
along width of
unit for roof
height
adjustment.
To Next Page
