Trane Precedent TSK036 Series - Page 17

RT-SVX092A-EN
17

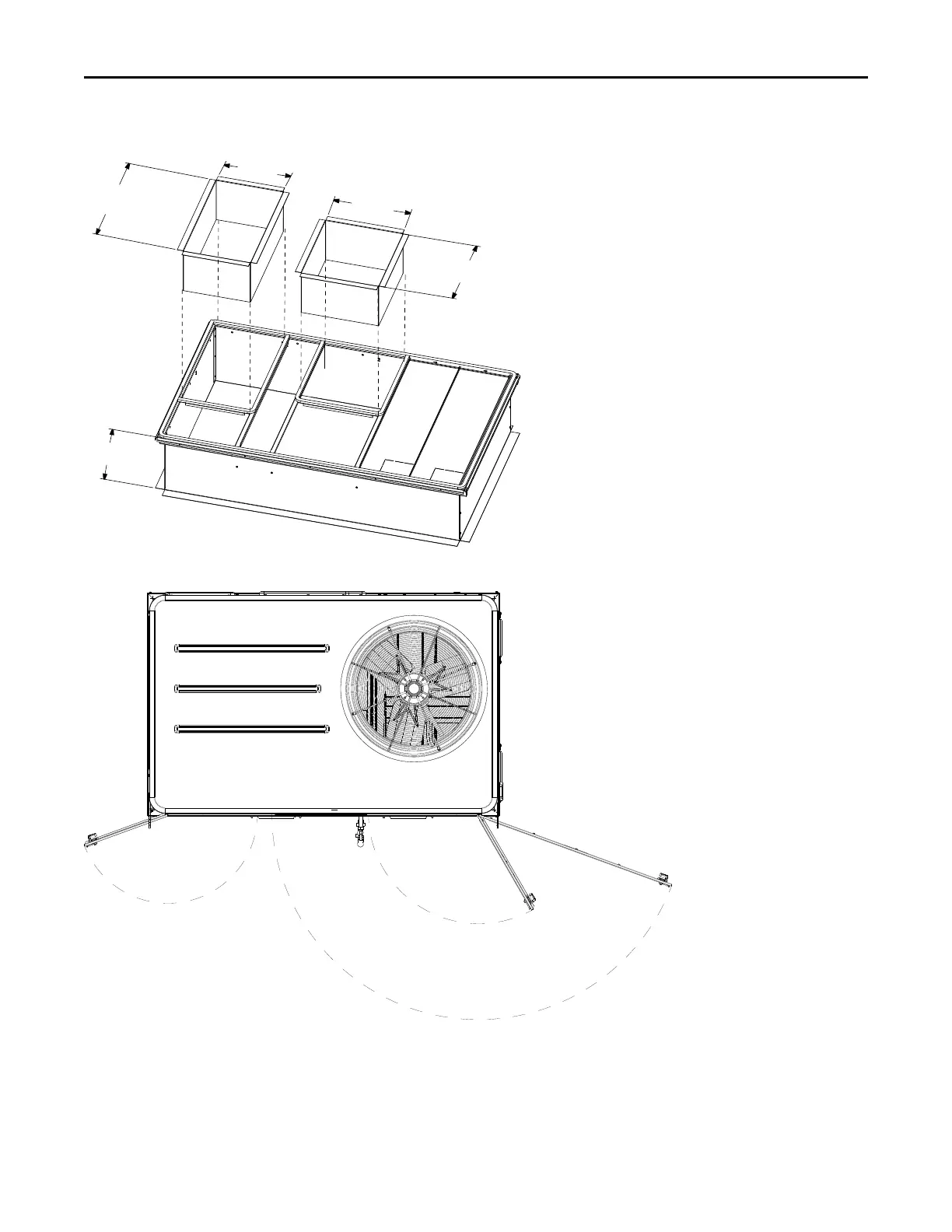

Figure 8. A.0 cabinet – downflow duct connections, field fabricated
ALL FLANGES 1 1/4” (32 MM)
24 3/8”
(619 MM)
14 1/16”
(357 MM)
16 3/16”
(411 MM)
17 1/16”
(433 MM)
14”
(356 MM)
RETURN
SUPPLY
Figure 9. A.0 cabinet – swing diameter for hinged door(s) option
17-5/8"
[448]
40-3/4"
[1035]
21-7/8"
[554]
Dimensions and Weights
