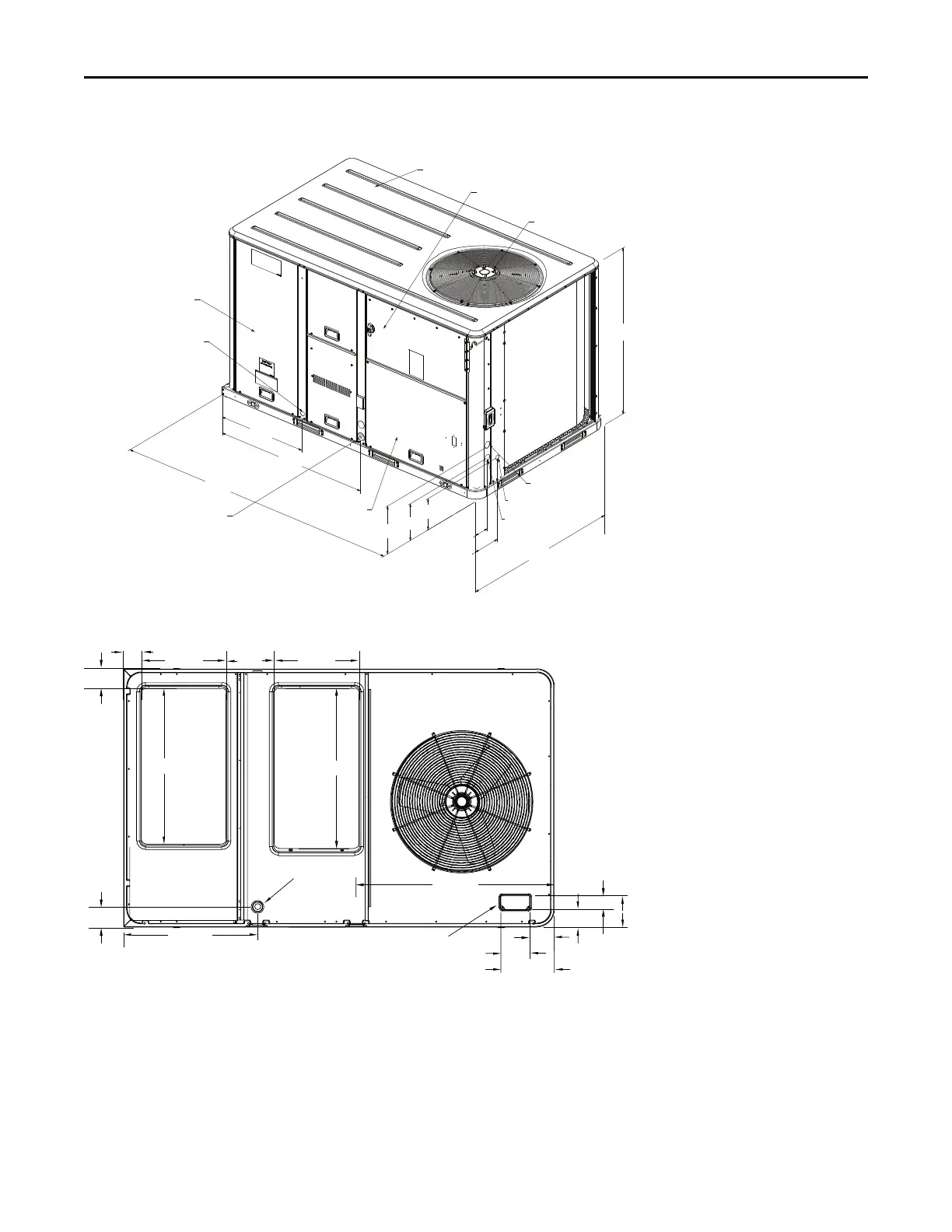

Figure 10. B.0 cabinet
47-7/8"
[1217]
ALTERNATE CONDENSATE
CONNECTION 3/4 - 14 NPT DIA. HOLE
1/2 NPT GAS CONNECTION
(80 MBh, 120 MBh)
3/4 NPT GAS CONNECTION
(150 MBh, 200 MBh, 250 MBh)
AND ALL MOD GAS
COMPRESSOR ACCESS PANEL
CONTROL PANEL ACCESS
TOP PANEL
CONDENSER FAN
UNIT POWER WIRE
2" (50 MM) DIA. HOLE
SERVICE GAUGE PORT ACCESS
1-3/8" (35 MM) DIA. HOLE
UNIT CONTROL WIRE
2" (50 MM) DIA. HOLE
EVAPORATOR SECTION
ACCESS PANEL
15-1/4"
[388]
27-5/8"
[700]
88-1/8"
[2238]
11-1/4"
[286]
9-5/8"
[244]
4-7/8"
[123]
9"
[229]
53-1/4"
[1352]
50-7/8"
[1293]
Figure 11. B.0 cabinet – downflow airflow supply/return, through-the-base utilities
3 5/8”
92 MM
17 1/2”
444 MM
4”
102 MM
9 7/8”
251 MM
17 1/2”
444 MM
32 1/8”
816 MM
RETURN
SUPPLY
33”
838 MM
4 1/8”
104 MM
27 5/8”
701 MM
THROUGH THE
BASE CONDENSATE
40 3/4”
1035 MM
THROUGH THE
BASE ELECTRICAL
5 7/8”
149 MM
5”
127 MM
10 7/8”
276 MM
3 3/4”
95 MM
2 3/4”
71 MM
6 1/2”
165 MM
