26
RT-SVX092A-EN

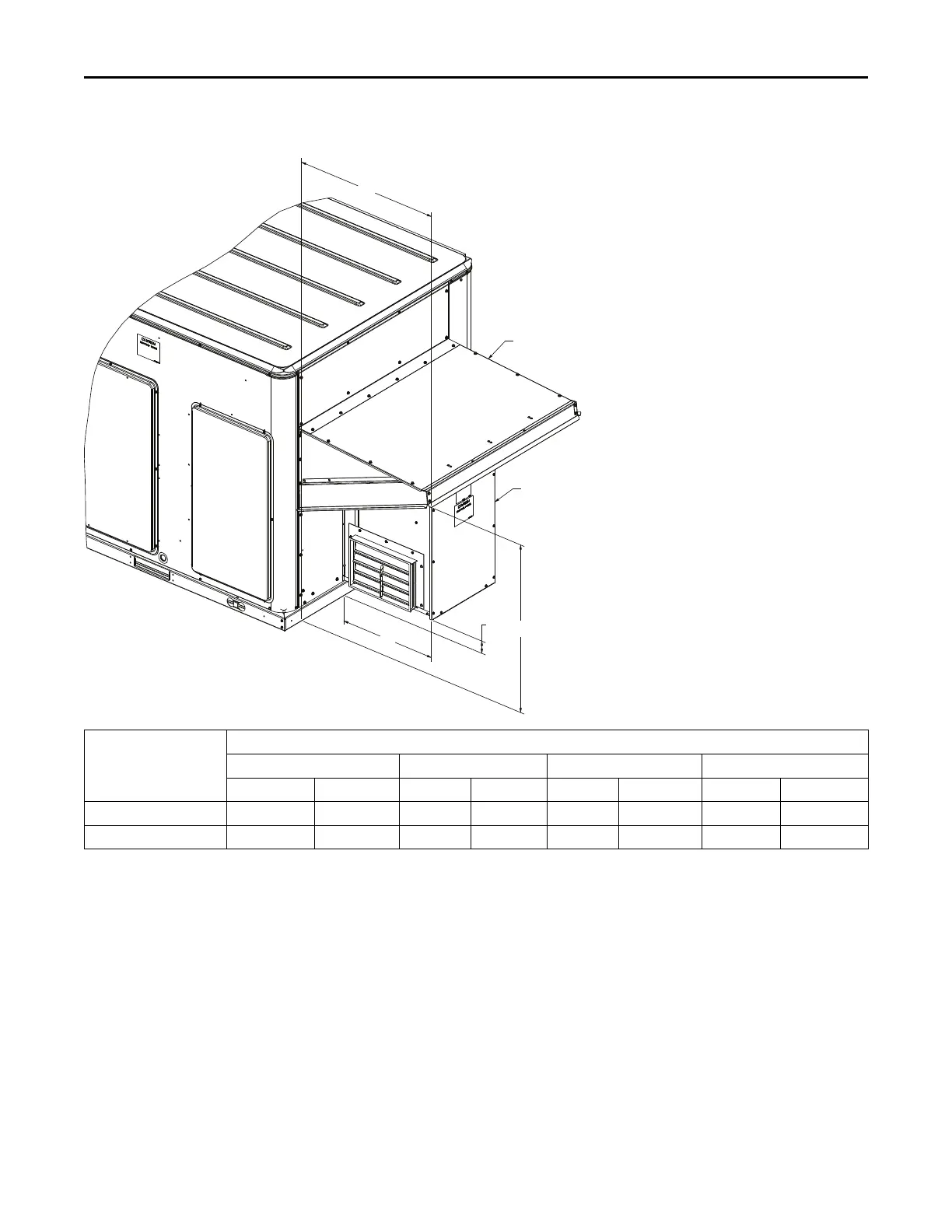

Figure 25. A.0, B.0, and C.0 cabinet – powered exhaust with low leak economizer
E
F
H
G
POWER
EXHAUST
ECONOMIZER
HOOD
Cabinet
Dimension
E F G H
inch mm inch mm inch mm inch mm
A.0 2 1/2 64 16 406 19 3/4 502 27 686
B.0 and C.0 2 1/2 64 19 3/4 502 29 1/4 743 33 1/2 852
Dimensions and Weights
