Trane Precedent TSK036 Series - Page 27

RT-SVX092A-EN
27

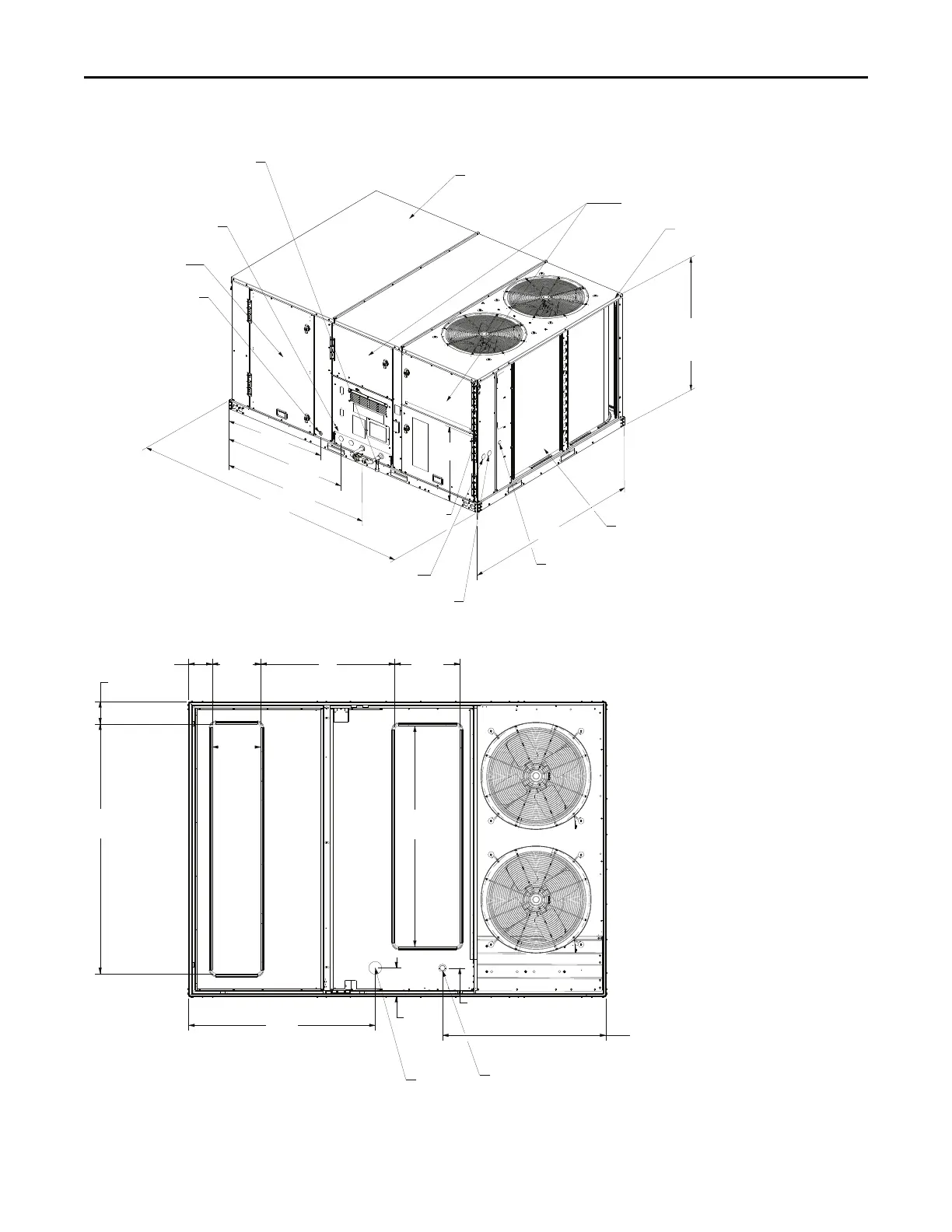

Figure 26. D.0 and D.1 cabinets
123''
[3124]
87''
[2210]
59'' D.0 CAB OR
[1499]
66'' D.1 CAB
[1676]
65 5/8''
[1668]
55''
[1398]
31 7/8''
[810]
44 3/4''
[1135]
GAS CONNECTION
3/4 NPT (250, 320, 400 MBh)
EVAPORATOR SECTION
ACCESS PANEL
CONDENSATE DRAIN
INDOOR TOP PANEL
CONTROL BOX SECTION
ACCESS PANEL
UNIT CONTROL WIRE
2'' (50 MM) DIA. HOLE
UNIT POWER WIRE
2'' (50 MM) DIA. HOLE
OUTDOOR T
OP PANEL
SERVICE GAUGE PORT ACCESS
1 3/8'' (35 MM) DIA. HOLE
2" ELECTRICAL CONN SINGLE POINT
POWER "T" MODELS ONLY
UNIT CONTROL WIRE
CONDENSER COIL
Figure 27. D.0 and D.1 cabinets – downflow airflow supply/return, through-the-base utilities
7"
177 MM
14 3/8"
365 MM
14 7/16"
365MM
40"
1002MM
19 3/8"
488MM
65"
1652MM
73 5/8"
1868MM
8 3/8"
212MM
48"
1223MM
6 5/8''
167 MM
8''
205MM
55 3/8''
1404MM
THROUGH
THE BASE
ELECTRICAL
THROUGH
THE BASE GAS PIPING
Dimensions and Weights
