30
RT-SVX092A-EN

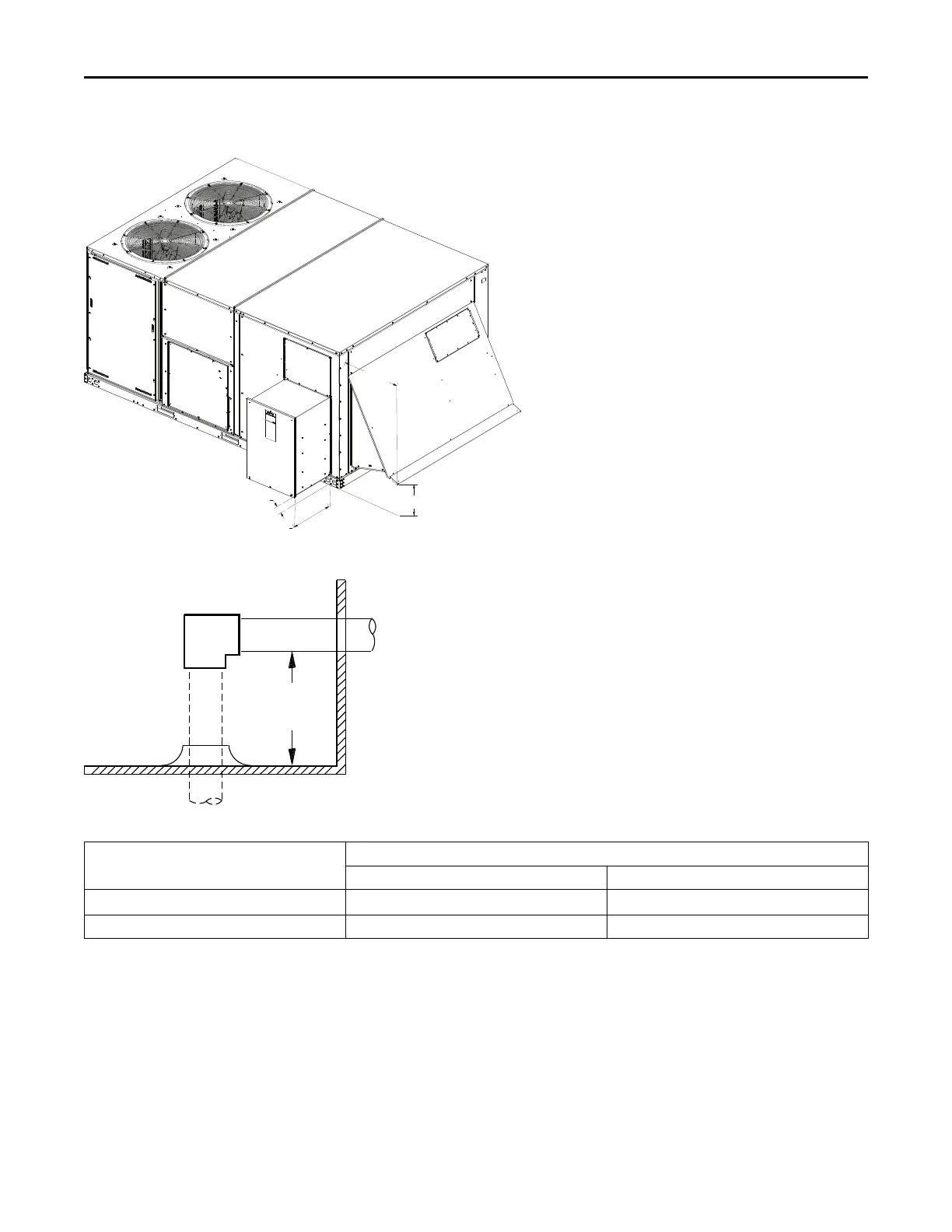

Figure 32. D.0 and D.1 cabinets – power exhaust
4.4
21.4
7.0
22.7
Figure 33. Gas pipe height
A
Note: Height of gas pipe required from inside unit base to gas shut off assembly (factory provided).
Cabinet
Dimension A
inch mm
A.0, B.0, and C.0
4 5/8 117
D.0 and D.1 1 3/6 30
Dimensions and Weights
