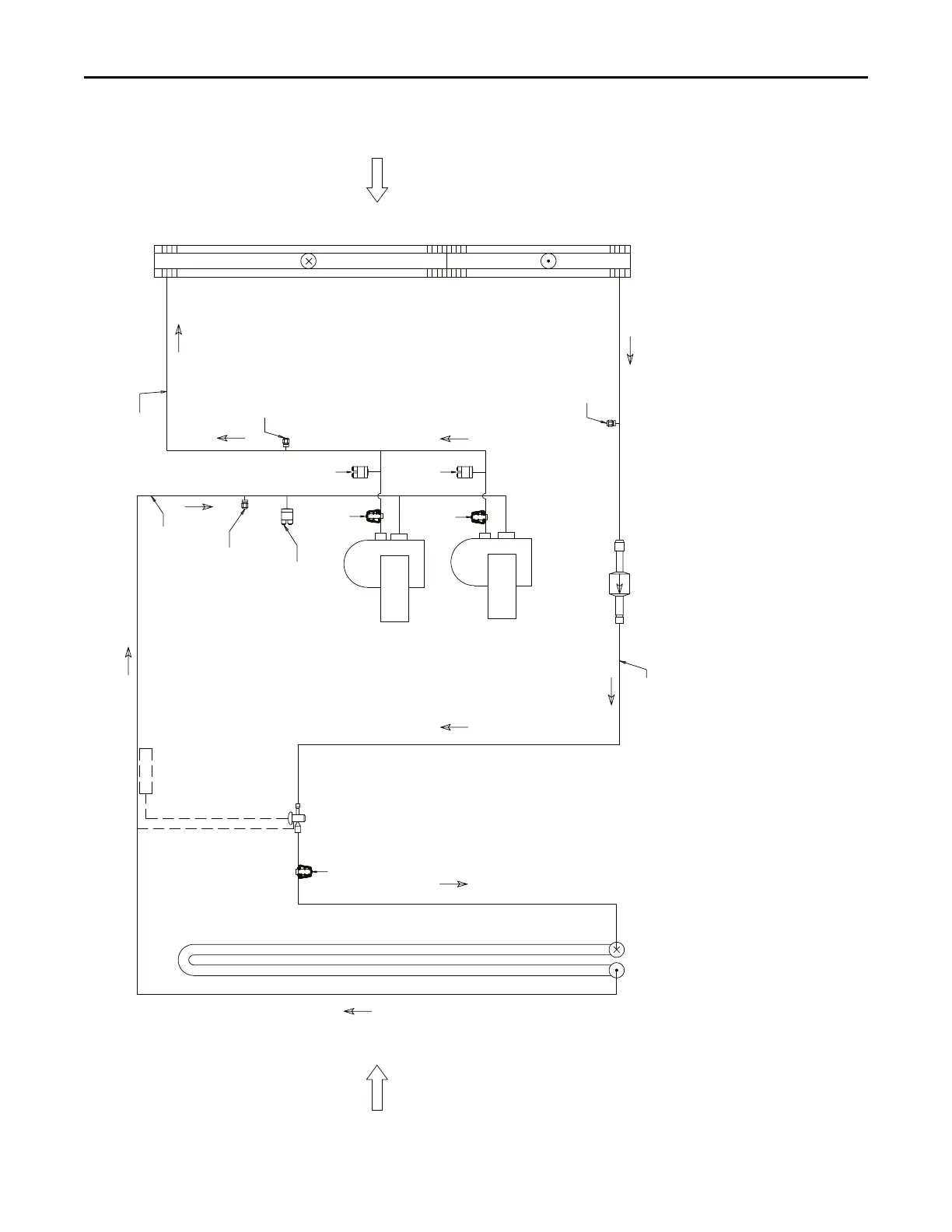

Figure 92. Piping diagram – 6 to 10 tons (T/Y)(S/H)K(072-120), and 12.5 tons standard efficiency (T/Y)SK150
INDOOR COIL
AIR
SERVICE
VALVE
SU
C
TIO
N
LINE
LIQUID LINE
FITER DRIER
TXV
TXV BULB
EQUALIZING LINE
SERVICE
VALVE
AIR
OUTDOOR COIL
LOW
PRESSURE CONTROL
DISCHARGE LINE
COMPRESSOR
1A
S
D
COMPRESSOR
1B
DISCHARGE LINE
THERMOSTAT
FROSTAT
HIGH
PRESSURE CONTROL
D
DISCHARGE LINE
THERMOSTAT
HIGH
PRESSURE CONTROL
S
SERVICE
VALVE
Piping Diagrams
