Trane RTHD series User Manual

Installation Mechanical
26 RTHD-SVX02H-EN

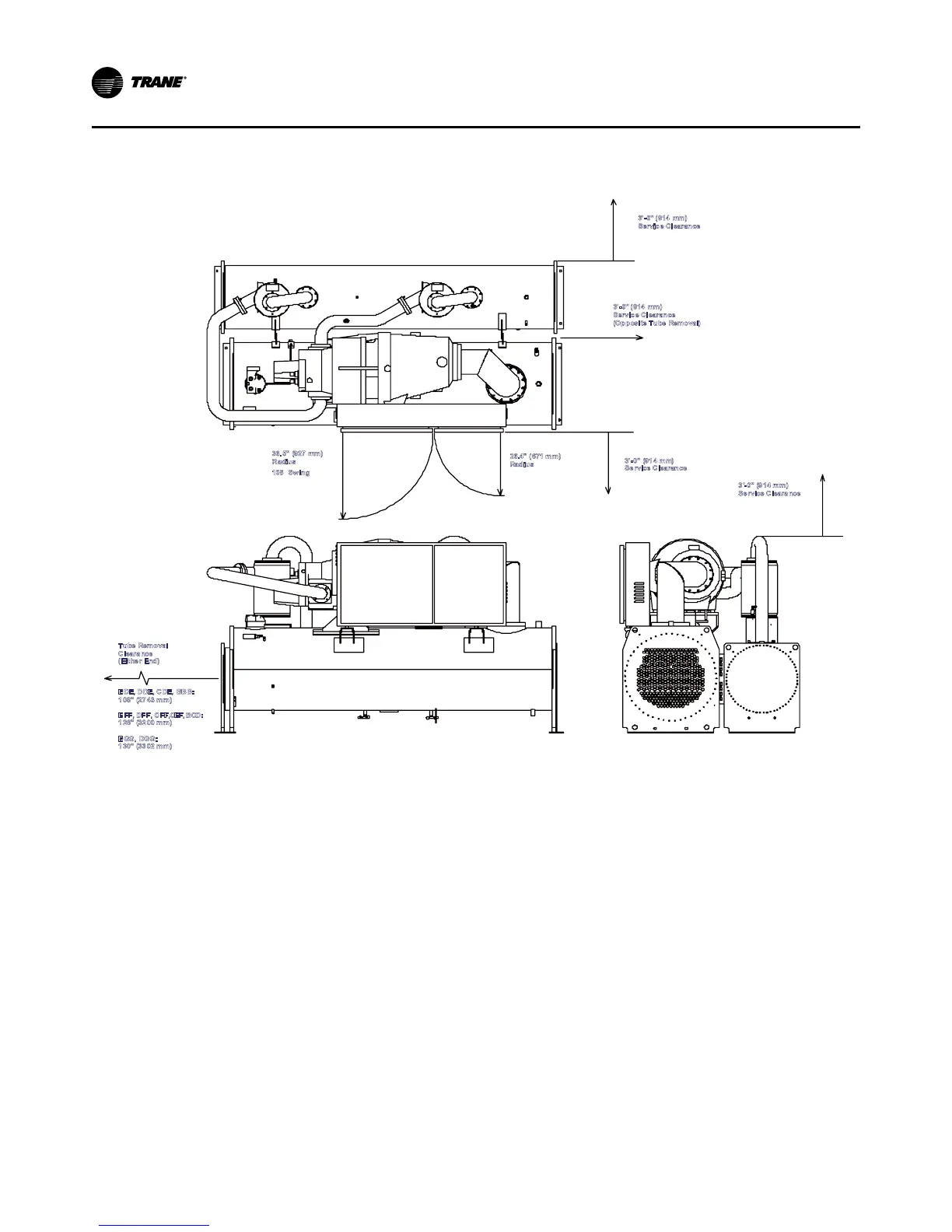

Figure 8. Recommended Operating and Service Clearances
3'-0" (91 4 mm)
Service Clearance
3'-0" (914 mm)
Servic e Clearance
26.4" (671 mm)
Radius
36.5" (927 mm)
Radius
105
~ Swing
3'-0" (914 mm)
Servic e Clearance
(Opposite Tube Removal)
3'-0" (9 14 mm)
Service Clearance
Tube Removal
Cleara nce
(Either End)
E DE, DDE, CDE, BBB:
108" (27 43 mm)
E FF, DFF, CFF,CEF, BCD:
1
26" (3200 mm)
E GG, DGG
:
1
30" (3302 mm)
