Service Clearance

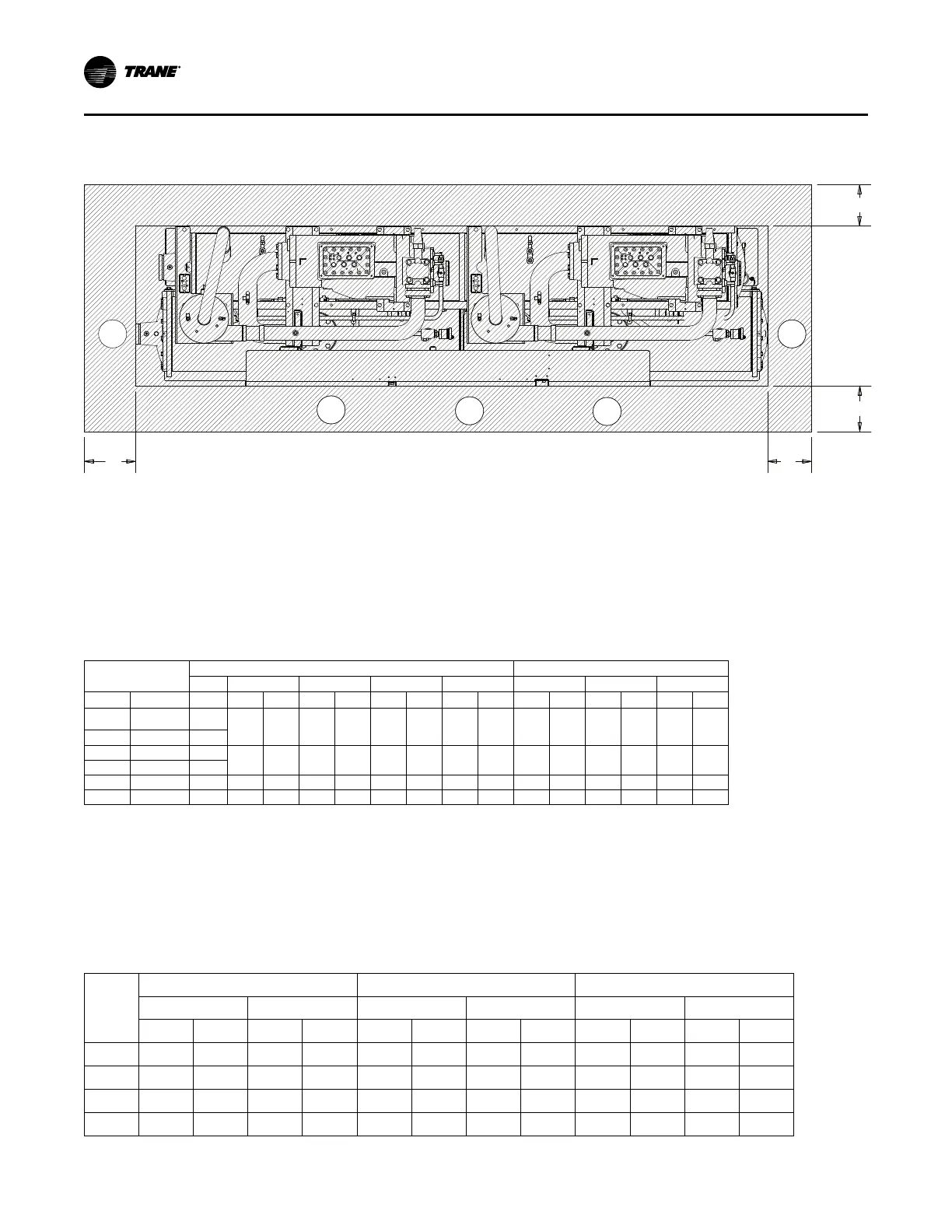

Figure 4. RTWD service clearances
AA
B
C
D
E
F G
Notes:
• See table below for clearance values.
• All unit configurations require 36 inch (914 mm)
clearance above the unit.
• All clearance values are taken from the edge of
the unit. Actual unit configuration may vary from
that shown in figure above.
Table 9. Service clearances
Unit Configuration
Clearance
Door Swing
A
(a)
B
C
(b)
D
(c)
E
(d)
F
(e)
G
(f)
Tons
Efficiency
Hz in mm in mm in mm in mm in mm in mm in mm
80-140 Standard 60
36 914 36 914 36 914 127 3226 31.3 796.9 31.1 790.1 22.4 568.1
70-150 Standard 50
80-130
High
60
36 914 36 914 36 914 115 2921 31.3 796.9 31.1 790.1 22.4 568.1
60-120
High
50
150-250
High
60 36 914 36 914 40 1016 114.8 2916 31.3 796.9 31.1 790.1 22.4 568.1
150-200 Premium 60 36 914 36 914 40 1016 134.5 3416 31.3 796.9 31.1 790.1 22.4 568.1
(a)
Condenser supply waterbox end - minimum clearance required for maintenance.
(b)
Clearance of 42 inches (1067 mm) is required to other ground parts. Clearance of 48 inches (1220 mm) required for two units installed with panels facing each other or other
live parts.
(c)
Condenser return waterbox end - minimum clearance required for tube removal.
(d)
Door swing - panel power section (left).
(e)
Door swing - panel power section (middle).
(f)
Door swing - panel control section door swing.
RTWD Weights
Table 10. Weights – RTWD, 60 Hz
Model
Standard Efficiency High Efficiency Premium Efficiency rating
Operating Shipping Operating Shipping Operating Shipping
lb
kg
lb
kg
lb
kg
lb
kg
lb
kg
lb
kg
80 5900 2676 5703 2587 5732 2600 5551 2518 - - - -
90 5933 2691 5721 2595 5792 2627 5587 2534 - - - -
100 6140 2785 5902 2677 6255 2837 6025 2733 - - - -
110 6332 2872 6074 2755 6475 2937 6208 2816 - - - -
