Trane S Series - Evaporator Water Piping

RLC-SVX09Q-EN
31
Table 13. Corner weights, RTWD, 60 Hz (continued)
G1 G2 G3 G4
Unit lb
kg
lb
kg
lb
kg
lb
kg
160 1987 901 2261 1025 1946 883 2215 1004
180 2002 908 2284 1036 1969 893 2246 1019
200 2020 916 2309 1047 1989 902 2273 1031
220 2171 985 2515 1141 2226 1010 2579 1170
250 2256 1023 2728 1237 2296 1041 2776 1259
Premium Efficiency
150 2089 947 2195 996 2171 985 2281 1035
160 2173 985 2416 1096 2176 987 2420 1097
180 2194 995 2454 1113 2198 997 2458 1115
200 2207 1001 2461 1116 2213 1004 2468 1119
Evaporator Water Piping

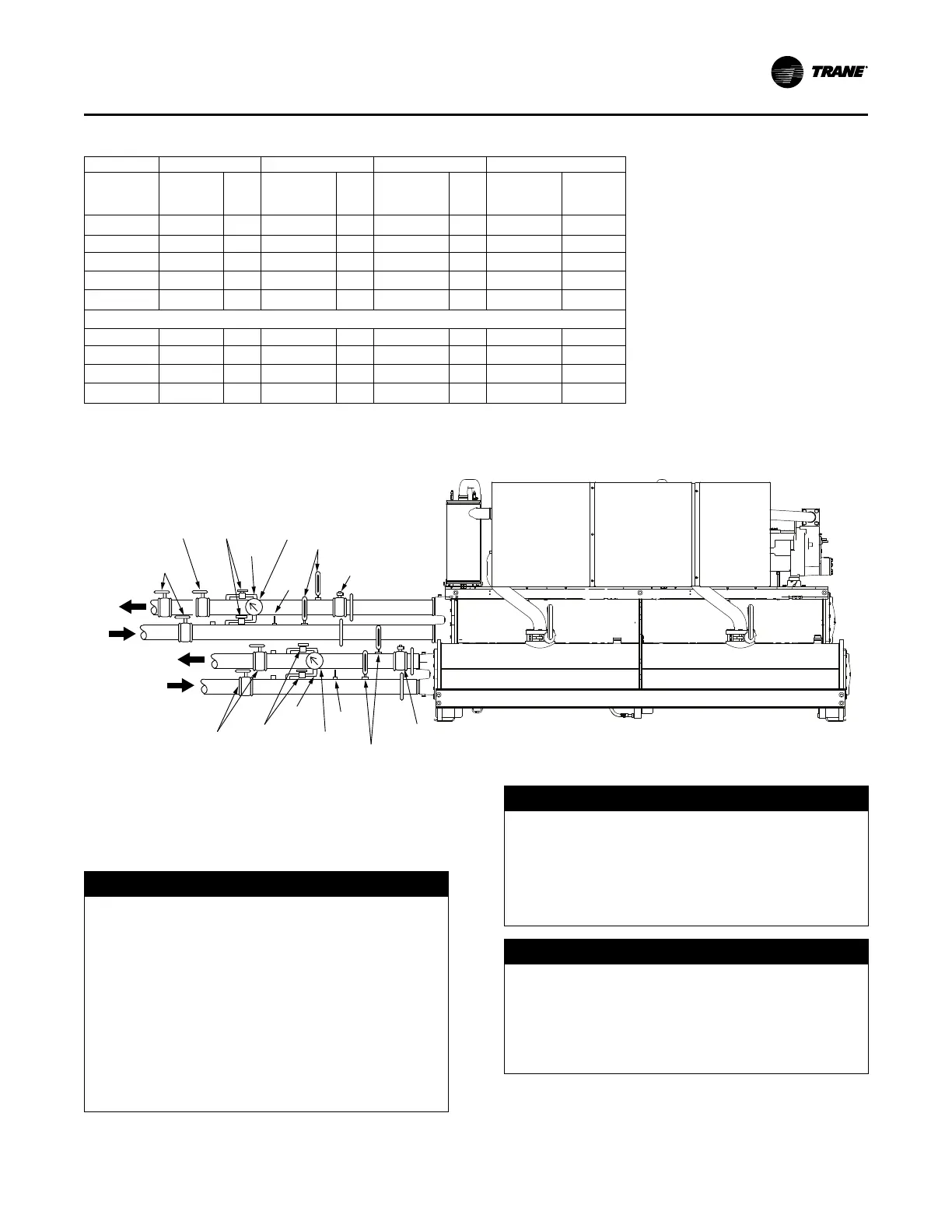

Figure 14. Typical water piping setup
Evap
Water
Flow
Cond
Water
Flow
Isolation
Valves
Shutoff
Valves
Manifold
Relief
Valve
Flow
Switch
Pressure
Differential
Gauge
Thermometers
Water Regulating
Valve
Isolation
Valves
Shutoff
Valves
Manifold
Relief
Valve
Flow
Switch
Pressure
Differential
Gauge
Thermometers
Thoroughly flush all water piping to the unit before making
the final piping connections to the unit.
Components and layout will vary slightly, depending on the
location of connections and the water source.
NOTICE
Evaporator Damage!
Failure to follow instructions below could cause
damage to the evaporator.
The chilled water connections to the evaporator are to
be grooved-pipe type connections. Do not attempt to
weld these connections, as the heat generated from
welding can cause microscopic and macroscopic
fractures on the cast iron waterboxes that can lead to
premature failure of the waterbox. To prevent damage
to chilled water components, do not allow evaporator
pressure (maximum working pressure) to exceed 150
psig (10.5 bar).
NOTICE
Equipment Damage!
Failure to follow instructions below could result in
damage to internal components of the evaporator.
If using an acidic commercial flushing solution when
flushing the water piping, construct a temporary
bypass around the unit.
NOTICE
Water Borne Debris!
To prevent components damage, pipe strainers must
be installed in the water supplies to protect
components from water borne debris. Trane is not
responsible for equipment-only-damage caused by
water borne debris.
Installation - Mechanical
