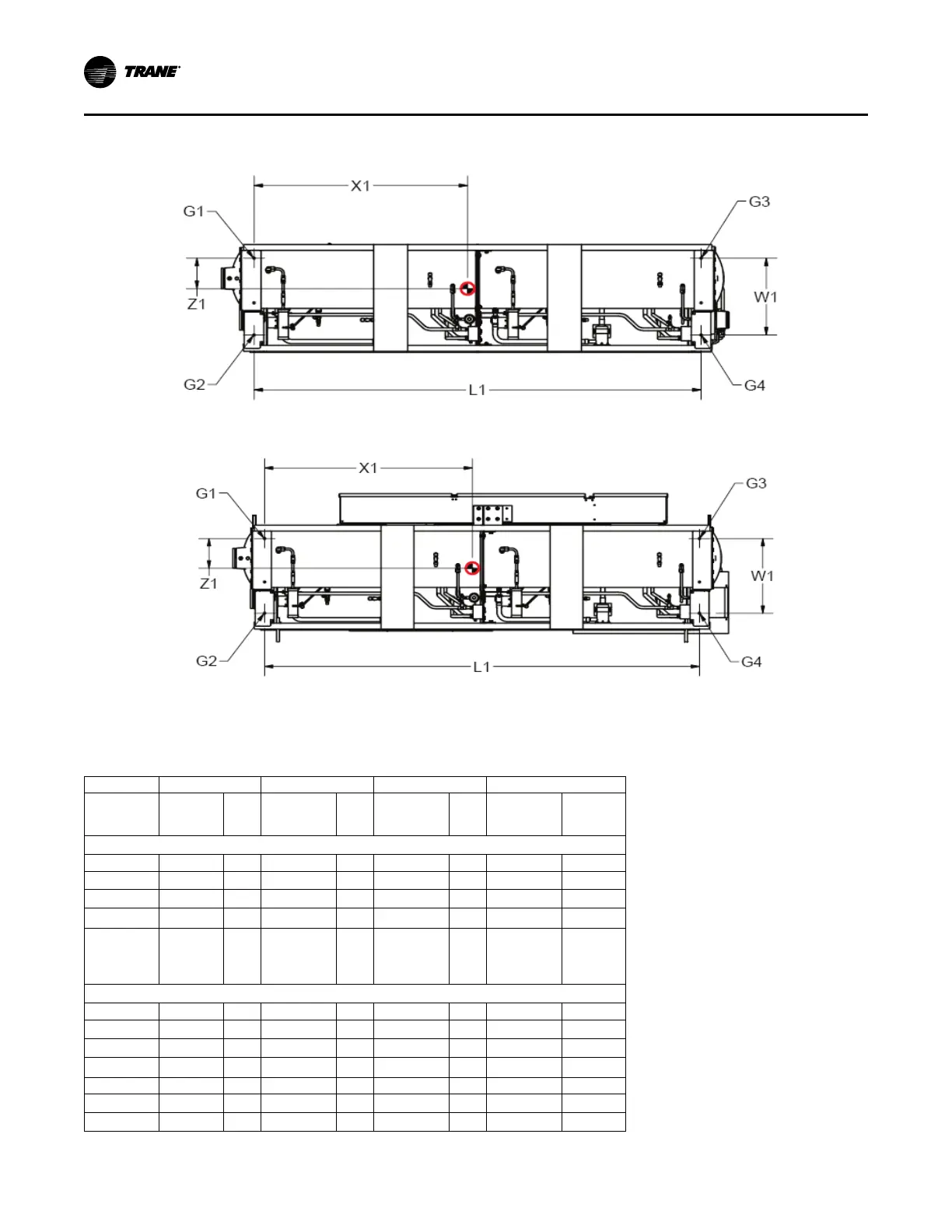

Figure 13. Mounting point locations and weights – RTWD Premium efficiency (all), RTWD High efficiency: 150 – 250T
(60 Hz)
Important: Isolators need to be placed under G1, G2, G3
and G4.
Table 13. Corner weights, RTWD, 60 Hz
G1 G2 G3 G4
Unit lb
kg
lb
kg
lb
kg
lb
kg
Standard Efficiency
80 1566 710 1566 710 1385 628 1385 628
90 1571 713 1577 715 1390 630 1396 633
100 1599 725 1617 733 1454 660 1471 667
110 1662 754 1690 767 1477 670 1503 681
120
130
140
1689
1688
1654
766
765
750
1795
1797
1905
814
815
864
1477
1478
1586
670
670
719
1569
1573
1827
712
713
829
High Efficiency
80 1465 664 1595 724 1279 580 1393 632
90 1479 671 1610 730 1294 587 1409 639
100 1602 726 1704 773 1429 648 1521 690
110 1673 759 1789 811 1457 661 1557 706
120 1680 762 1798 816 1465 664 1569 711
130 1685 764 1808 820 1472 668 1580 716
150 1181 853 2010 911 1937 878 2070 939
Installation - Mechanical
