WARNING
Improper Unit Lift!
Failure to properly lift unit in a LEVEL position could
result in unit dropping and possibly crushing
operator/technician which could result in death or
serious injury, and equipment or property-only
damage.
Test lift unit approximately 24 inches (61 cm) to verify
proper center of gravity lift point. To avoid dropping of
unit, reposition lifting point if unit is not level.
Lifting Procedure
Attach chains or cables to lifting beam, as shown in Figure
9, p. 27. Lifting beam crossbars MUST be positioned so
lifting cables do not contact the sides of the unit. Attach the
anti-rolling cable to the circuit 2 compressor suction pipe.
Adjust as necessary for even level lift.

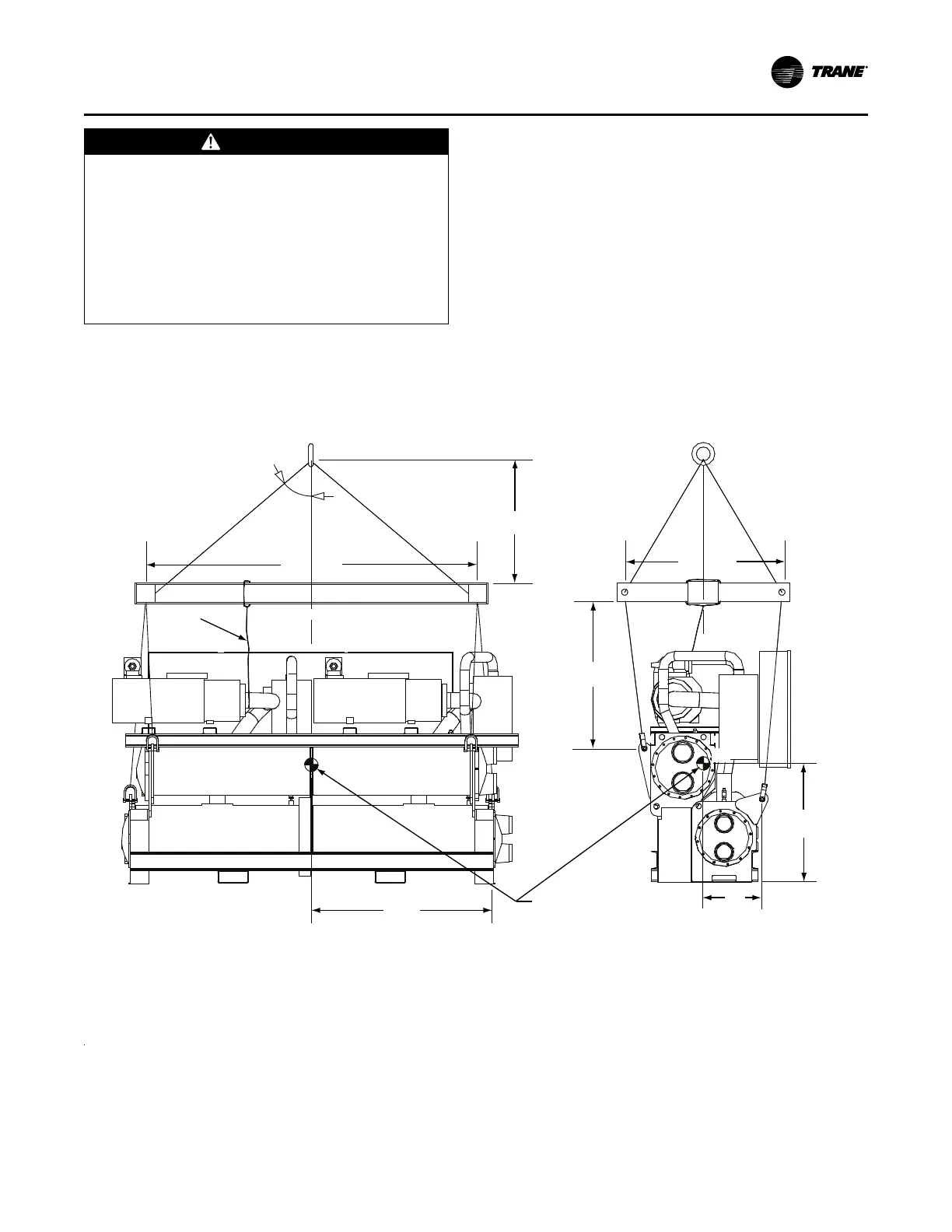

Figure 9. RTWD rigging
C G
C G
60 D eg . M A X
48” MIN
40” MIN
Approximate location
of center of gravity
X
Y
110” MIN
ANTI-ROLLING CABLE
Z
48” MIN
Unit Isolation and Leveling
Mounting
Construct an isolated concrete pad for the unit or provide
concrete footings at each of the four unit mounting points.
Mount the unit directly to the concrete pads or footings.
Level the unit using the base rail as a reference. The unit
must be level within 1/4 inch over the entire length and
width. Use shims as necessary to level the unit.
