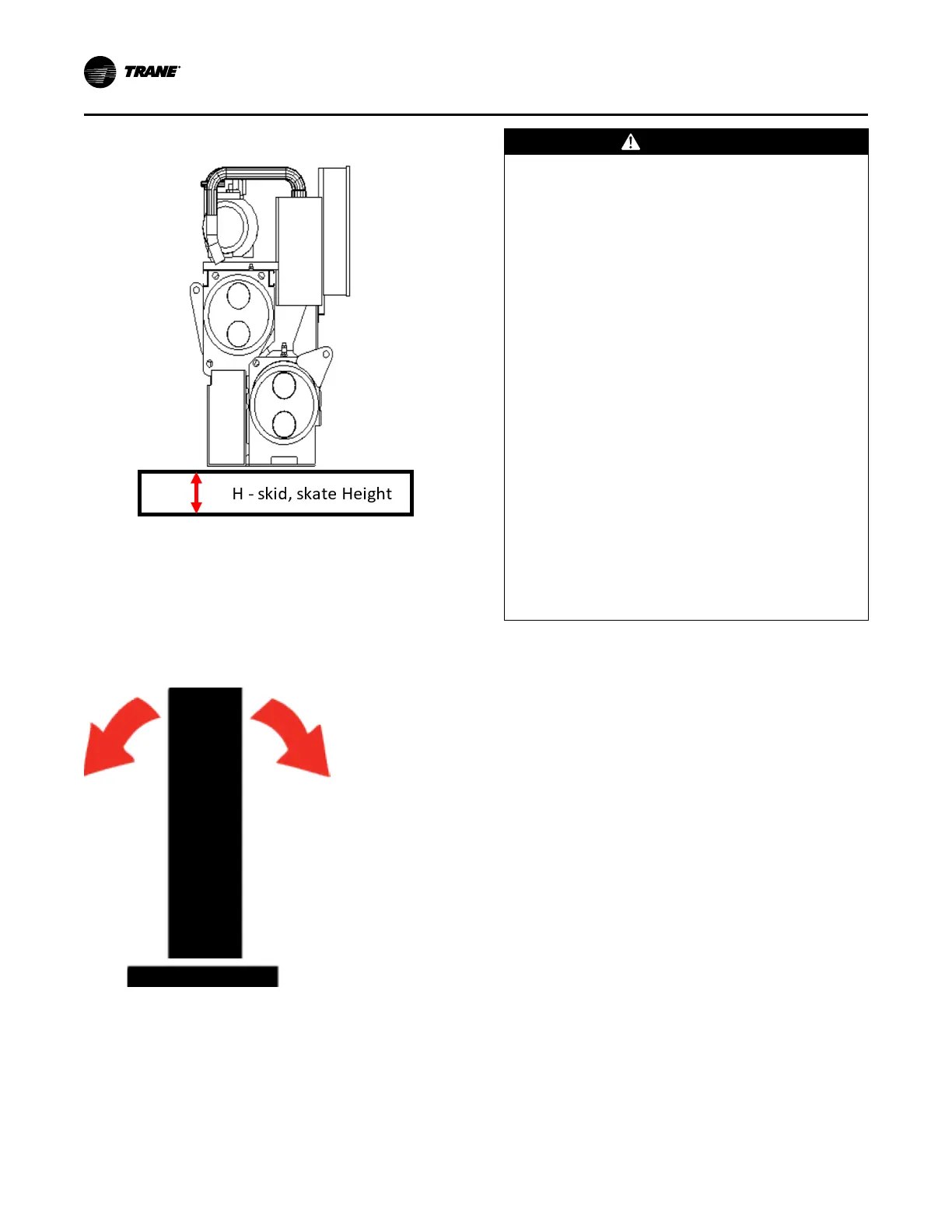

Figure 7. RTWD – anti tipping
The chiller should be moved by lifting, unless the unit is
ordered with the base rail forklifting option. Refer to the unit
model number, digit 46, for more details.
See thru “RTWD Weights,” p. 22 for typical unit lifting
weights Refer to the rigging label attached to the unit for
further details.
WARNING
Heavy Objects!
Failure to follow instructions below or properly lift
unit could result in unit dropping and possibly
crushing operator/technician which could result in
death or serious injury, and equipment or property-
only damage.
• Equipment is top heavy. Use caution when
lifting/ moving equipment to prevent unit from
tipping.
• Ensure that all the lifting equipment used is
properly rated for the weight of the unit being
lifted. Each of the cables (chains or slings),
hooks, and shackles used to lift the unit must be
capable of supporting the entire weight of the
unit. Lifting cables (chains or slings) may not be
of the same length. Adjust as necessary for
even unit lift.
• The high center of gravity on this unit requires
the use of an anti-rolling cable (chain or sling).
To prevent unit from rolling, attach cable (chain
or sling) with no tension and minimal slack
around compressor suction pipe as shown.
• Do not use forklift to move or lift unit unless unit
has lifting base with base rail forklifting option.
Figure 8. Equipment is top heavy (see warning above)
Installation - Mechanical
