Isolation Pads
Note: The elastomeric pads shipped (as standard) are
adequate for most installations. Consult an
acoustical engineer for sound-sensitive installations.
During final positioning of the unit, place the isolation pads
under the evaporator and condenser tube sheet supports
as shown in Figure 10, p. 28. Level the unit as described in
the next main paragraph.

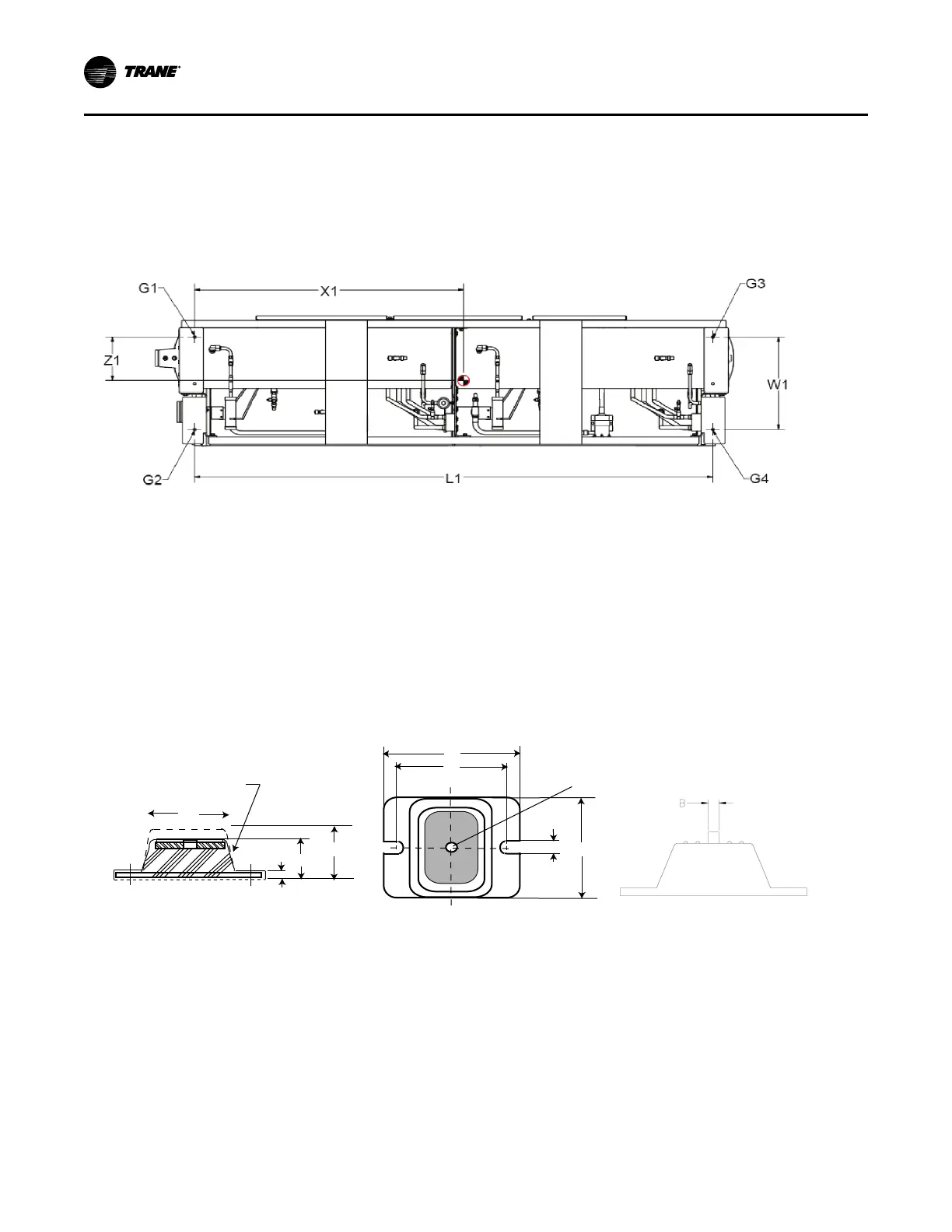

Figure 10. Isolator pad placement
NOTE: Unit level to 1/4-inch (6.35mm) across width and length.
Neoprene Isolator Installation (optional)
Install the optional neoprene isolators at each mounting
location. Isolators are identified by part number and color.
Refer to submittal drawing for correct isolators.
1. Secure the isolators to the mounting surface, using the
mounting slots in the isolator base plate, as shown in
Figure 11, p. 28. Do not fully tighten the isolator
mounting bolts at this time.
2. Align the mounting holes in the base of the unit with the
threaded positioning pins on the top of the isolators.
3. Lower the unit on the isolators and secure the isolator
to the unit with a nut.
4. Level the unit carefully. See “Unit Isolation and
Leveling,” p. 27. Fully tighten the isolator mounting
bolts.
Figure 11. RTWD neoprene isolator
L
C
D
1/2-13NC-2B
W
Mounting molded in Neoprene
H (RD)
H (R)
E
A
Installation - Mechanical
