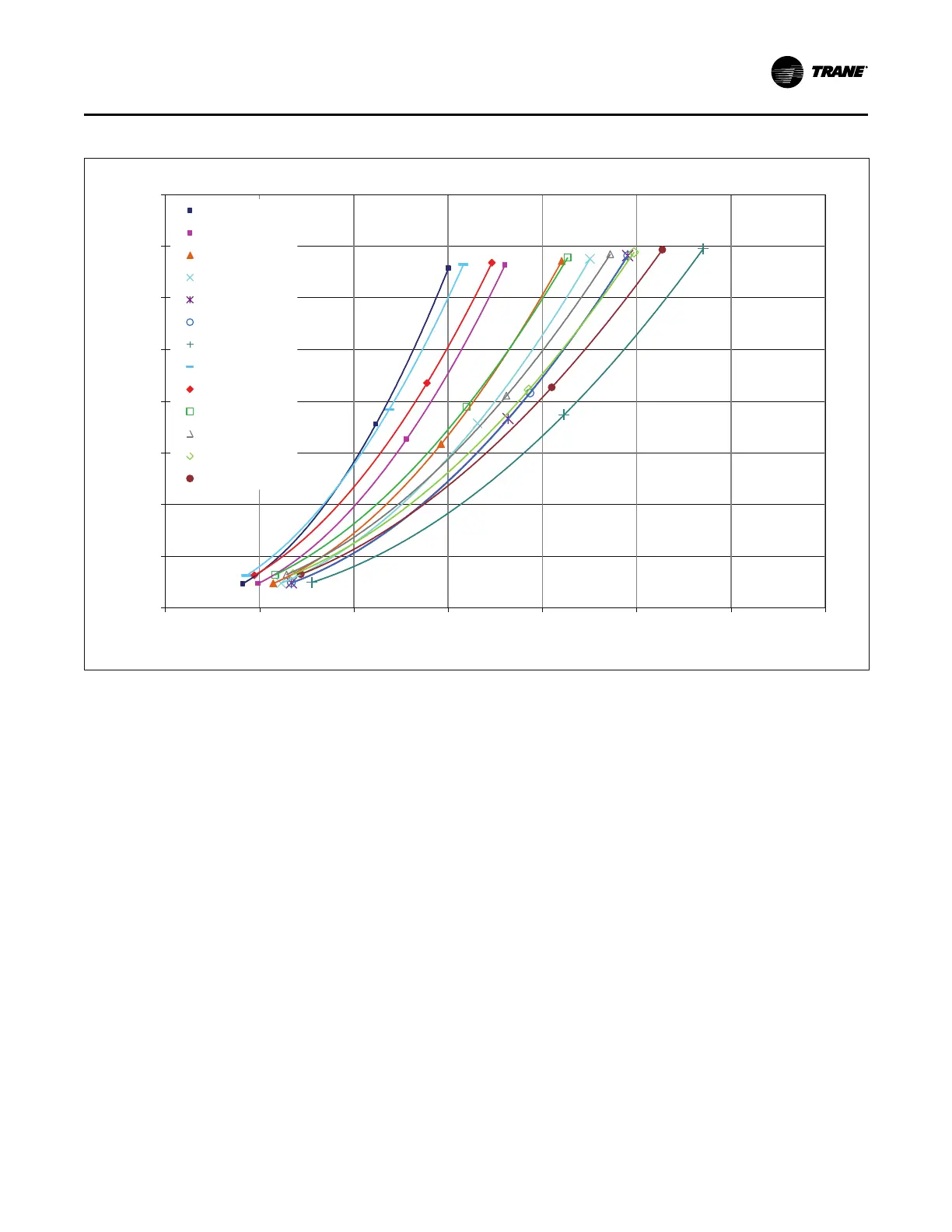

Figure 22. Condenser pressure drop curves - RTWD 60 Hz
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
0.0 100.0 200.0 300.0 400.0 500.0 600.0 700.0
Pressure Drop (ft. H2O)
Water Flow (GPM)
Waterside Pressure Drop - 60 Hz Units - Condenser
RTWD080 Std
RTWD090 Std
RTWD100 Std
RTWD110 Std
RTWD120 Std
RTWD130 Std
RTWD140 Std
RTWD80 High
RTWD90 High
RTWD100 High
RTWD110 High
RTWD120 High
RTWD130 High
Installation - Mechanical
