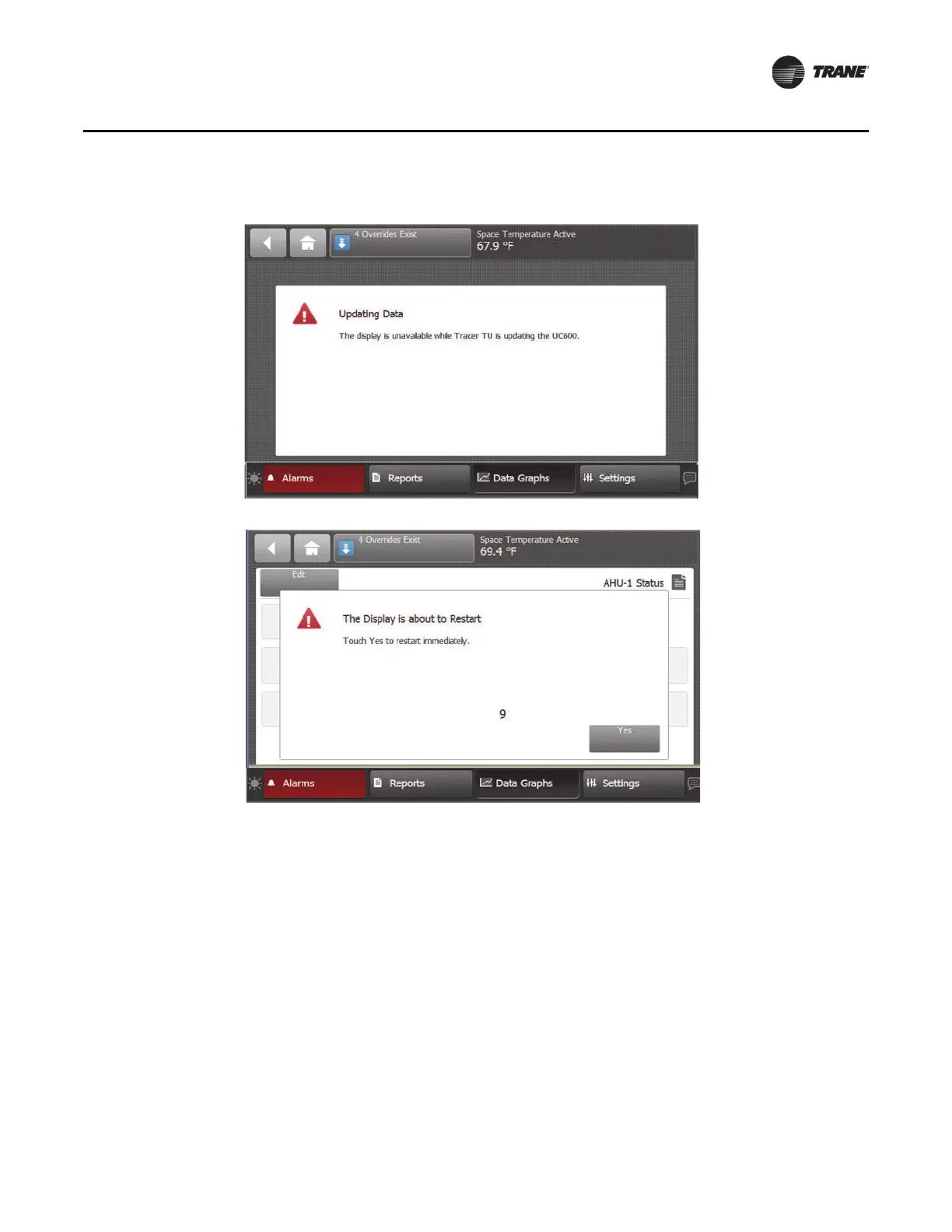

Figure 67.
Automati
c rediscover
and automat
ic
restart messages
BAS-SVX50F-EN
67
Troubleshooting
Automatic rediscover:
This message appears
when data is being
updated.
Automatic restart:
This message appears
whenever
a user is
added or deleted.
66
68
Table of Contents
Table of Contents
4
Introduction
7
Hardware
7
AC Power
7
Communication
7
Screen Characteristics
7
Touchscreen Guidelines
7
Dimensions
8
Specifications and Agency Compliance
9
Controller and Service Tool Requirements
9
Supported Languages
9
Screen Overview
10
Top Display Area
10
Main Display Area
10
Bottom Display Area
11
Installing the Tracer TD7 Display
12
Packaged Contents
12
Additional Mounting Parts
12
Installing the TD7 Display in a Trane Large Enclosure
13
Installing the TD7 Display Onto a VESA Mounting Bracket
15
Setting up and Using the TD7 Display Portable Carry Case
17
Setting up the TD7 Portable Carry Case
17
Using the TD7 Portable Display
18
Powering up the TD7 Display for the First Time
18
Alarms
19
Active Alarms
19
All Alarms
19
Viewing Active and All Alarms
20
Alarm Icons
21
Sorting Alarms
21
Overrides
22
The Point Override Screen
22
Binary Overrides
23
Multistate Overrides
23
Analog Overrides
24
Setting up a Temporary Override
25
Reports
26
Custom Graphics
26
Accessing a Graphic
27
Graphics Best Practices
27
Custom Reports
28
Creating a Custom Report
28
Editing a Custom Report
29
Override Summary
30
All Points Report
31
About
32
Expansion Modules
33
TGP2 Programs
34
Overrides
35
The Point Override Screen
35
Binary Overrides
36
Multistate Overrides
36
Analog Overrides
37
Setting up a Temporary Override
38
Data Graphs
39
Creating a Data Graph
39
Settings
44
Control Settings
44
Schedules
44
Display Settings Screen
44
Display Preferences
44
Language
48
Date and Time
48
Clean Touchscreen
49
Security Settings
49
Log in
49
Log out
50
Setting up and Maintaining Schedules
51
Creating a Schedule
51
Setting Schedule Defaults and Adding Events
54
About the Schedule Default Value
54
Setting Schedule Defaults
54
Adding Exceptions to a Schedule
56
Viewing the Schedule
61
Deleting a Schedule
61
Overrides
62
The Point Override Screen
62
Binary Overrides
63
Multistate Overrides
63
Analog Overrides
64
Setting up a Temporary Override
65
