Trane UniTrane Installation, Operation And Maintenance Instructions

11 8 UNT-SVX07B-EN
Diagnostics
Testing Battery Status
Initiate a battery status test as follows:
• On model WTS, push the Test button on the sensor (see location on Figure 31, p. 11 6 ). LED5 on
the sensor responds by indicating the level of battery strength, as shown in Ta ble 42.
• On model WDS, push the Test button on the sensor (see location on Figure 31, p. 116 ). In
response, a battery test symbol a
ppears on the display. The symbol shown indicates battery life
expectancy (see Ta ble 43, p. 11 8 ).
Table 41. Observing signal strength on the receiver
User action LED state (receiver, all models) Indicates...
None LED1: Off
LED2: Off
LED3: Off
Normal state
• No Test button press.
Press Test button
on the sensor
LED1: On
LED2: On
LED3: On
Displays for 5 seconds, then constantly Off
Excellent signal strength
• Good signal margin for reliable communication.
LED1: Off
LED2: On
LED3: On
Displays for 5 seconds, then constantly Off
Satisfactory signal strength
• Adequate signal strength for reliable communication.
• Moving sensor or receiver may improve signal strength.
• Increased channel switching may reduce battery life.
LED1: Off
LED2: Off
LED3: On
Displays for 5 seconds, then constantly Off
Poor signal strength
• Unreliable communication
• Strongly recommend moving the sensor or receiver to a better
location
Table 42. Battery status: LED5 on model WTS sensors
User action LED state (WTS) Indicates...
Press Test button Solid green for 5 seconds Battery is adequate for proper operation.
Solid red for 5 seconds 25% battery life left. Batteries should be replaced.
No light Batteries life expired or not installed properly, or sensor is defective.
None Blinking red: 1-blink pattern
(a)
repeated 5 times.
Cycle repeats every 15 minutes.
Approximately 14 days of operation remain before the battery is too weak
to power the sensor.
(a) Blink pattern is On for 1/4 s, Off for 3/4 s, with 2 s Off between repetitions.

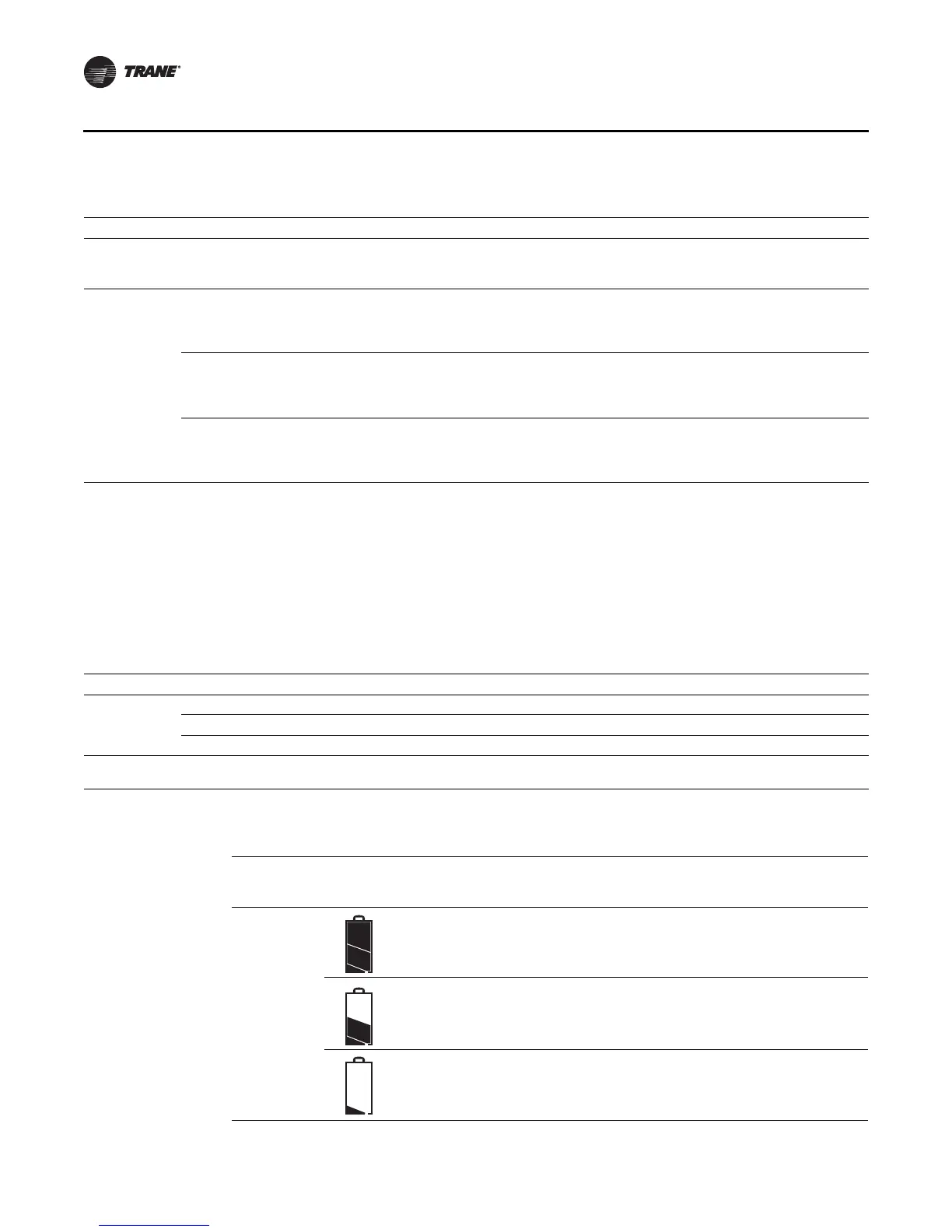

Table 43. Battery status: Battery symbol on model WDS sensor display
User action
Battery
test
symbol Indicates...
Press Test
button
Full battery power.
50% battery life left.
25% battery life left. Replace batteries.
Flashing symbol indicates that approximately 14 days of operation remain before the
battery is too weak to power the sensor.
