Trane UniTrane Installation, Operation And Maintenance Instructions

UNT-SVX07B-EN 11 7
Diagnostics
LED1, LED2, and LED3, located on the receiver of all models, respond to diagnostics by exhibiting
specific blinking patterns. They respond independently of any user action (see Table 39).
Testing Signal Strength
To initiate a signal strength test, push the Test button on the sensor (see location of Test button in
Figure 31, p. 116).
• Models WTS: LED1, LED2, and LED3 respond by indicating signal strength. You can view them
on the sensor (Tab l e 40) and the receiver (Ta bl e 41, p. 118 ).
• Mo
del WDS: Test symbols on the sensor display indicate signal strength (Ta b le 40). LED1, LED2,
and LED3, on the receiver, respond b
y indicating signal strength (Ta bl e 41, p. 11 8).
Table 39. Diagnostics on the receiver
LED state Indicates...
LED1: Off
LED2: Off
LED3: 1-blink pattern repeated continuously
(a)
Disassociated
• Receiver is not associated, waiting for a sensor.
• Receiver lost communication with sensor.
• Receiver has no devices on its wireless personal area network.
• Association with a device has been manually removed.
LED1: Off
LED2: Off
LED3: 2-blink pattern repeated continuously
(a)
Address set to 000
• Address not set to between 001–999.
LED1: Off
LED2: Off
LED3: 3-blink pattern repeated continuously
(a)
Not configured
• Receiver configuration properties not properly set (defective receiver).
(a) Blink pattern is On for 1/4 s, Off for 1/4 s, with 2 s Off between repetitions.

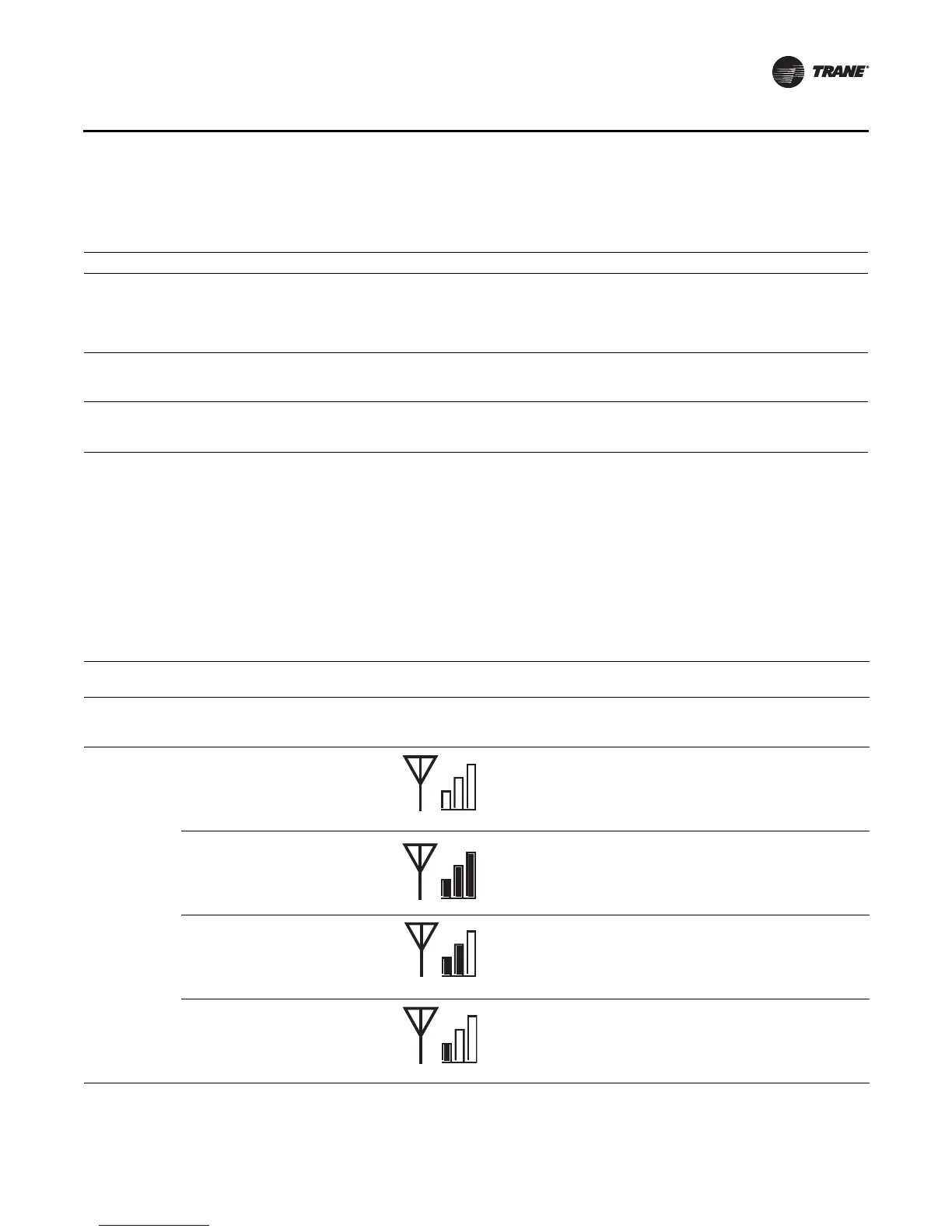

Table 40. Observing signal strength on the sensor
User action LED state (WTS sensors)
Symbol (WDS
sensor display) Indicates...
None LED1: Off
LED2: Off
LED3: Off
No Test symbols
appear
Normal state
• No Test button press.
Press Test button
on the sensor
LED1: Off
LED2: Off
LED3: Off
Associated; no communication with receiver
• Associated, but no signal from the receiver after pressing Test
button.
LED1: On
LED2: On
LED3: On
Displays for 5 seconds, then constantly
Off
Excellent signal strength
• Good signal margin for reliable communication.
LED1: Off
LED2: On
LED3: On
Displays for 5 seconds, then constantly
Off
Satisfactory signal strength
• Adequate signal strength for reliable communication.
• Moving sensor or receiver may improve signal strength.
• Increased channel switching may reduce battery life.
LED1: Off
LED2: Off
LED3: On
Displays for 5 seconds, then constantly
Off
Poor signal strength
• Unreliable communication.
• Strongly recommend moving the sensor or receiver to a better
location.
