TRENDnet User’s Guide
TEW-715APO
*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual
data throughput and coverage will vary depending on interference, network traffic, building
materials and other conditions.
Product Hardware Features

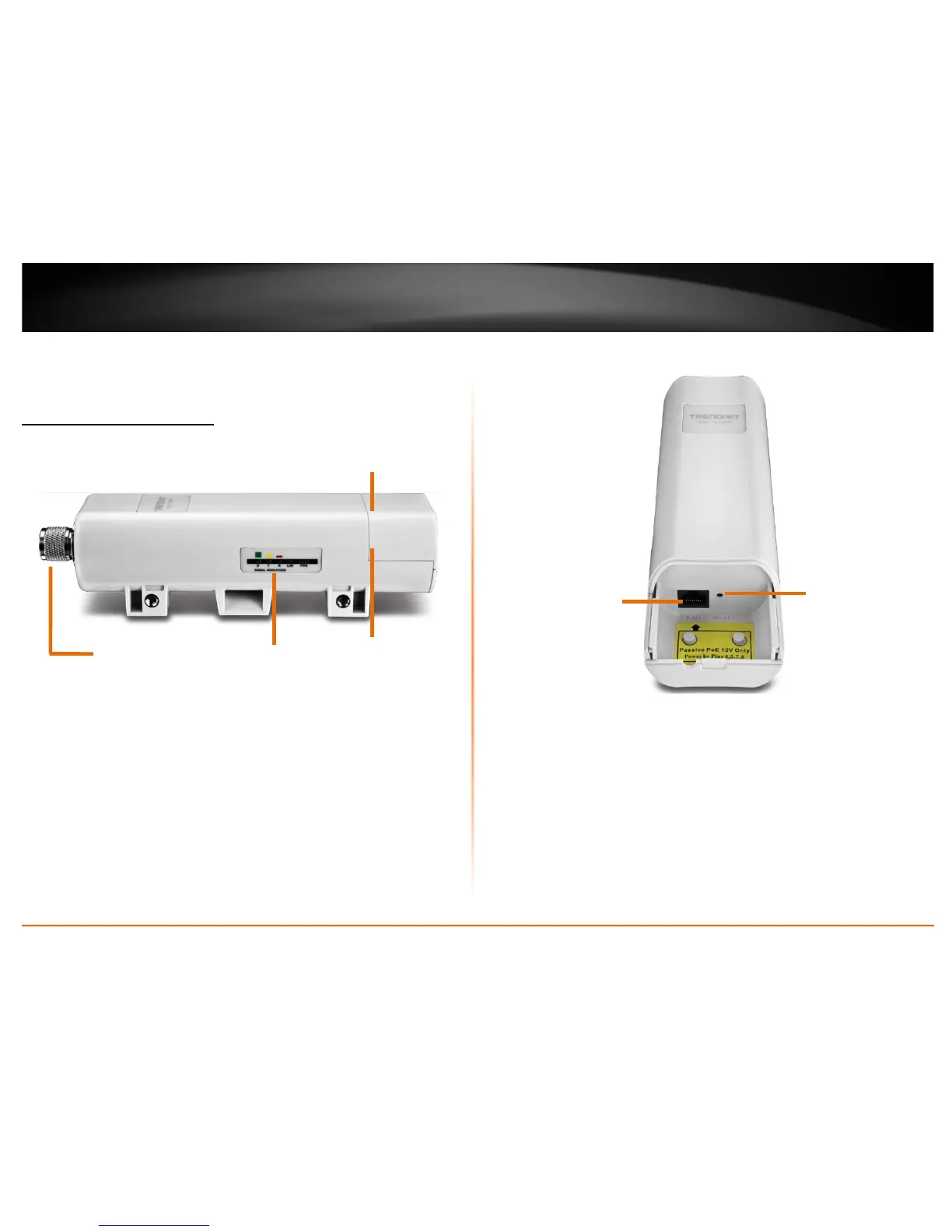

Access Point Side View
• External Antenna (optional): N-Type connector for the option to connect an
external antenna and not use the built in antenna.
• Diagnostic LEDs: Provides device status.
o Wireless Signal: Blinks green during wireless network activity.
Green (Good), Yellow (Moderate), Red (Poor)
o LAN: Blinks green during network activity
o Power: Solid green when the device has power
• Ethernet port: 1x 10/100Mbps Auto-MDIX port. Connect the side marked “PoE”
of PoE adapter to this port. Depending on the mode settings applied, the
Ethernet port can function as the network WAN port or LAN port. Note:To access
the Ethernet port, remove the bottom cap.
• Reset button: Press and hold the reset button for 15seconds to reset the unit
back the factory default settings. Note: To access the reset button, remove the
bottom cap
Access Point Front View with Bottom Cap Removed
• Ethernet port: 1x 10/100Mbps Auto-MDIX port. Connect the side marked “PoE”
of PoE adapter to this port. Depending on the mode settings applied, the
Ethernet port can function as the network WAN port or LAN port
• Reset button: Press and hold the reset button for 15seconds to reset the unit
back the factory default settings.
LAN Port
To Next Page
