© Copyright 2012 TRENDnet. All Rights Reserved.
5
TRENDnet User’s Guide
TEW-715APO

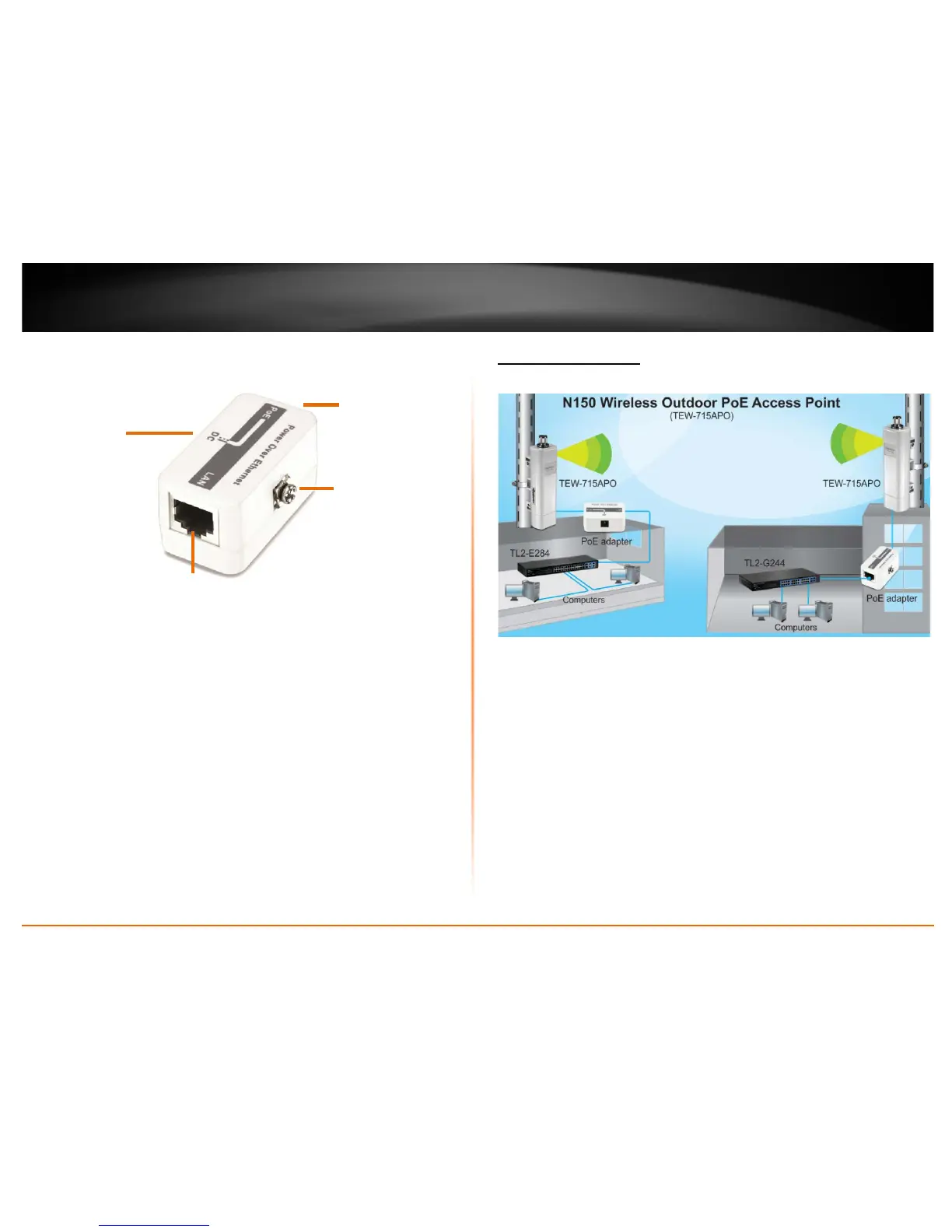

PoE Adapter View
• PoE: Provides power to the access point. Connect this side to the access point
Ethernet port.
• DC Power port: Powers up the PoE adapter.
• LAN: Provides network connectivity to the access point and your network.
Connect this side to your router or network.
• Ground: Provides extra grounding connection to protect the access point.
Application Diagram
The access point is mounted a pole which is connected to the provided PoE adapter and
then connected to your network switch or router. Wireless signals from the access point
are broadcasted to each creating a Bridge/WDS connection, thereby providing network
connection between both networks.
