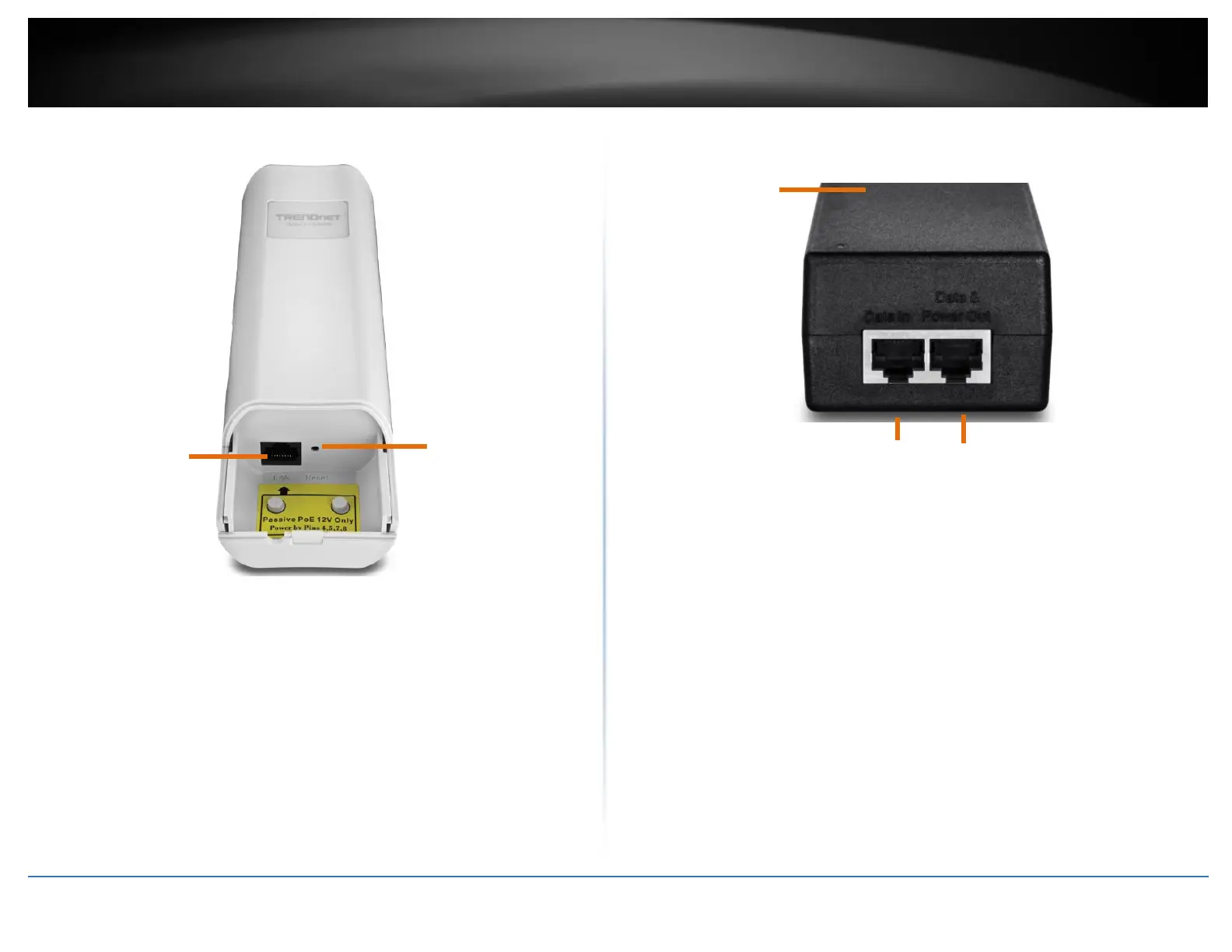

Access Point Front View with Bottom Cap Removed
 Ethernet port: 1x 10/100Mbps Auto-MDIX port. Connect the side marked “PoE”
of PoE adapter to this port. Depending on the mode settings applied, the
Ethernet port can function as the network WAN port or LAN port
 Reset button: Press and hold the reset button for 15seconds to reset the unit
back the factory default settings.
PoE Adapter View
 DC Power port: Powers up the PoE adapter.
 PoE: Provides power to the access point. Connect this side to the access point
Ethernet port.
 LAN: Provides network connectivity to the access point and your network.
Connect this side to your router or network.
PoE
LAN
DC Power Port
Ethernet Port
Reset Button
