Trident DRYSPELL PLUS 10 - Servicing the Bottom Shuttle

8.5.1.2 Servicing the bottom shuttle

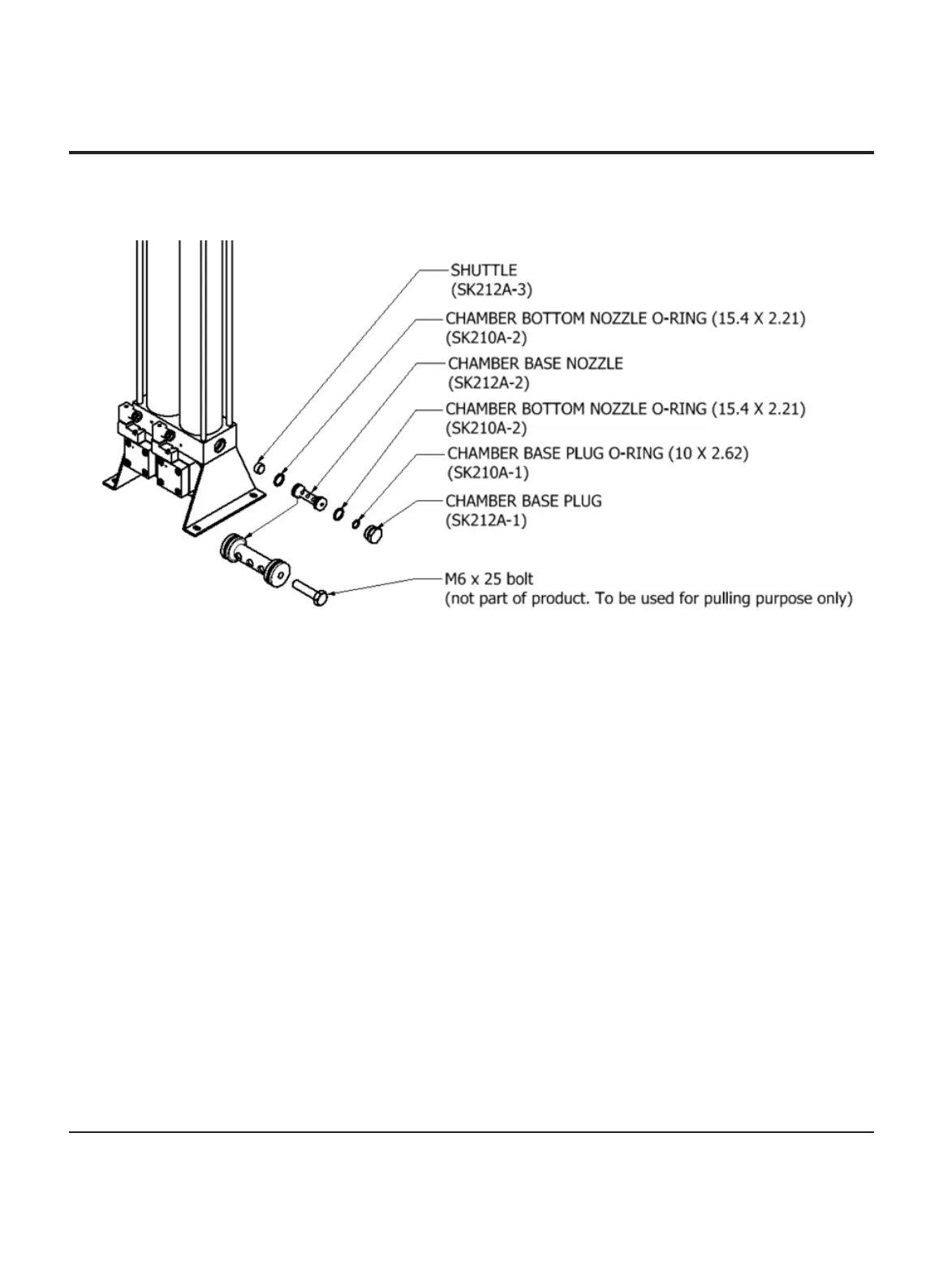

Figure 10. Exploded view of bottom shuttle of Dryspell Plus 10
l Remove the chamber base plug (use spanner no. 21)
l Remove the chamber base plug O-ring (10 mm * 2.62 mm). Discard the ring
l Replace it with a new O-ring (10 mm * 2.62 mm)
l Pull out the chamber base nozzle using an M6 * 25 bolt
l Remove the nozzle O-rings (15.4 mm * 2.21 mm, two) and discard them
l Clean the chamber base nozzle and replace the two O-rings (15.4 mm * 2.21 mm, two)
l Remove the shuttle and discard it
l Replace it with a new shuttle
l Coat the nozzle and all the O-rings with food-grade grease
l Fasten an M6 * 25 bolt in the chamber base nozzle and draw the bolt out
l Secure the chamber base plug with O-rings (15.4 mm * 2.21 mm and 10 mm * 2.62 mm)
