8.5.2.4 Servicing the top shuttle

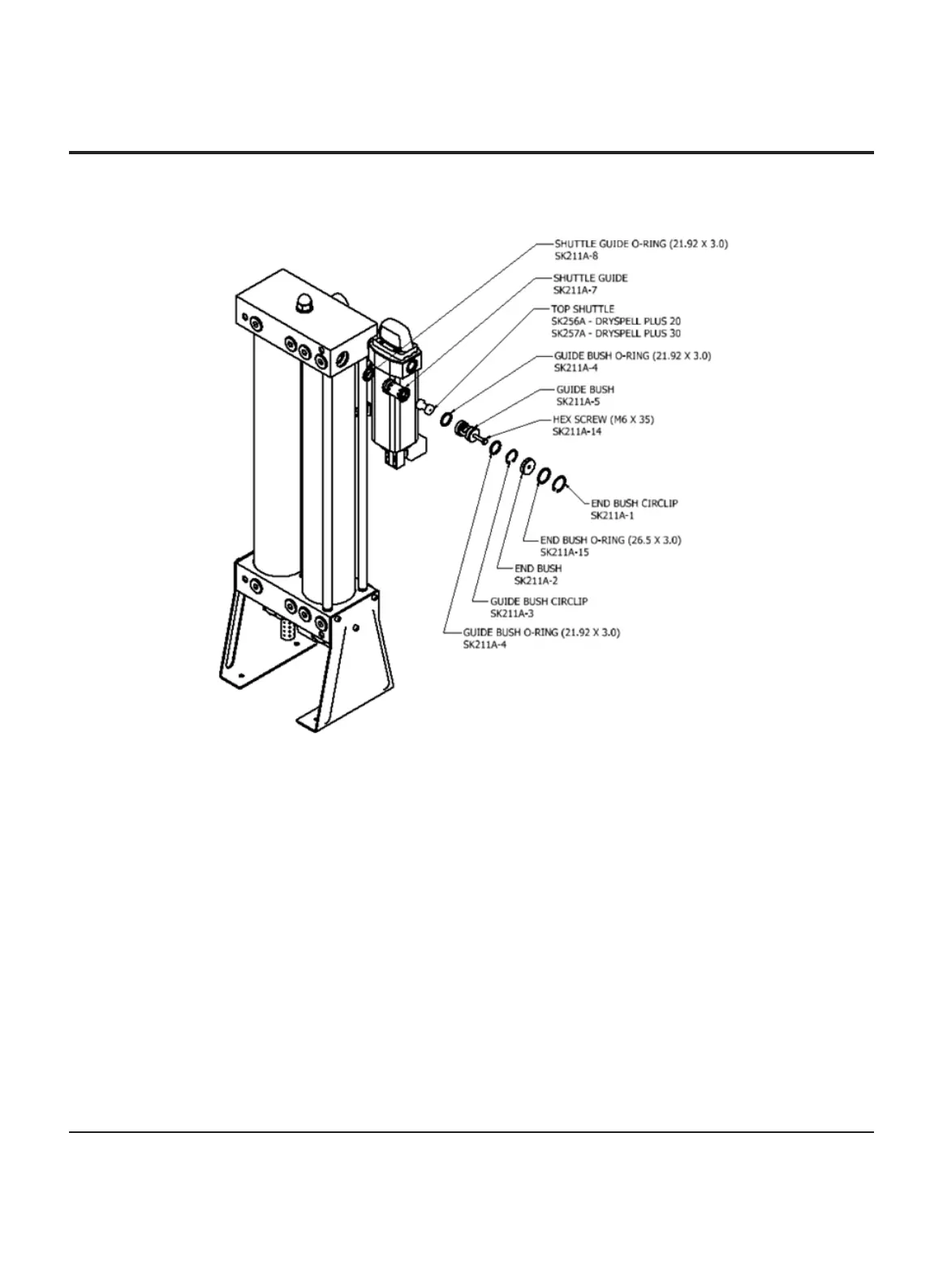

Figure 17. Exploded view to illustrate servicing of top shuttle in
Dryspell Plus models 20 and 30
l Using circlip pliers, remove the end bus circlip. Discard the circlip
l Discard the end bush O-ring
l Remove the end bush using an M6 screw
l Discard the guide bush circlip
l Draw the hex screw assembly using an M6 * 25 bolt
l Remove the guide bush and guide bush O-ring (21.92 mm * 3 mm). Discard the O-ring
l Remove the shuttle guide O-ring
l Discard the top shuttle
l Clean and replace the shuttle guide with a new O-ring (21.92 mm * 3 mm)
l Reassemble the parts. Use new parts in place of the discarded components
