Trident DRYSPELL PLUS 10 - Changing the Inlet Valve Assembly

8.5.4.3 Changing the inlet valve assembly in Dryspell Plus model

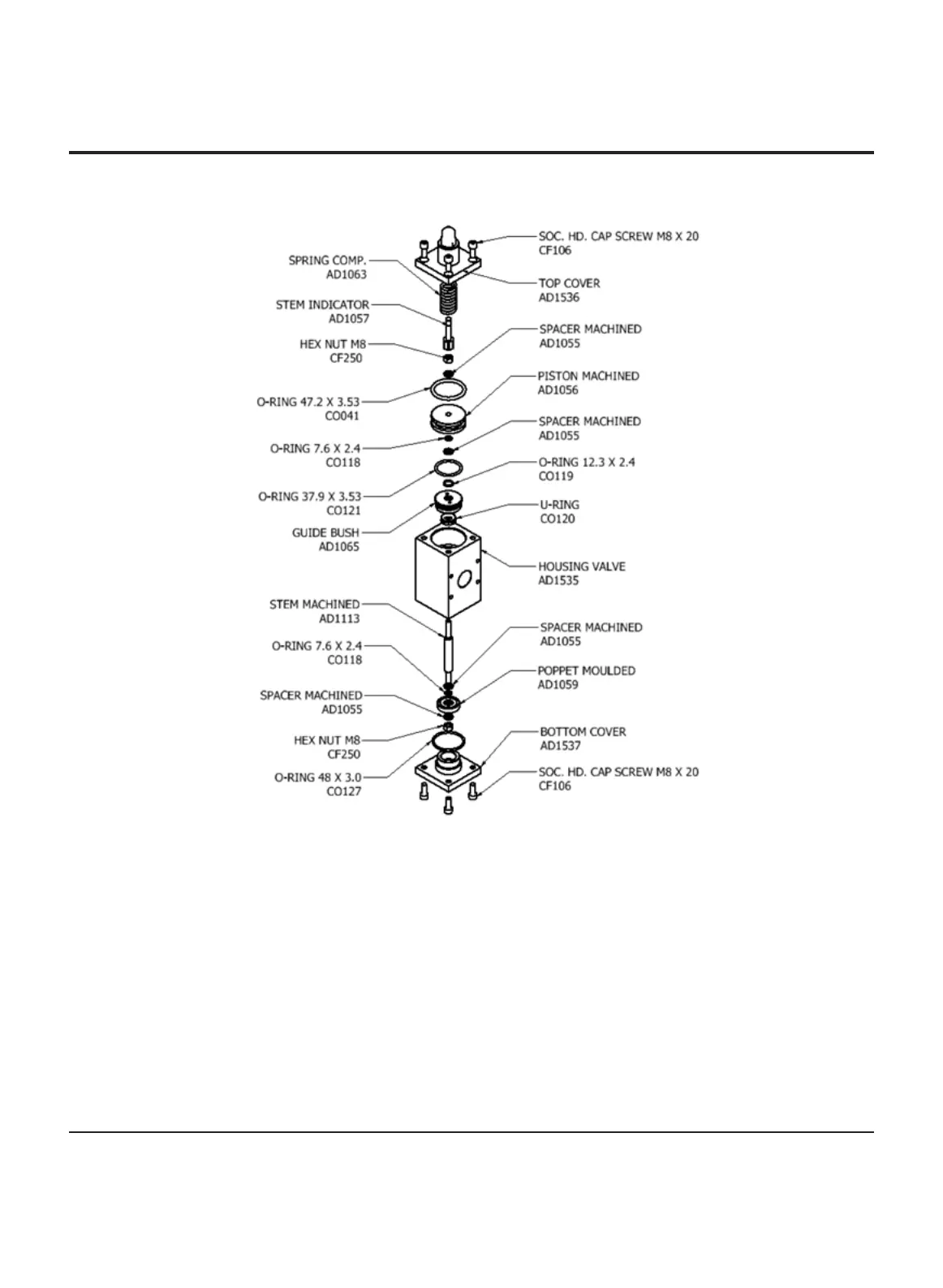

Figure 28. Exploded view of inlet valve assembly-Dryspell Plus models 100 & 125
l Using an Allen key, remove the screws M8 *20 at the bottom cover assembly
l Remove the bottom cover and clean it.
l Discard the O- ring (48 mm × 3.0 mm)
l Remove the M8 hex nut and take out the spacer machined. Clean the spacer machined
l Remove and discard the poppet moulded AD1059
l Discard the O-ring (7.6 mm × 2.4 mm).
l Remove the spacer machined and clean it.
l Using an Allen key, remove the screws at the top of the assembly.
