8.5.1.5 Changing the inlet tube

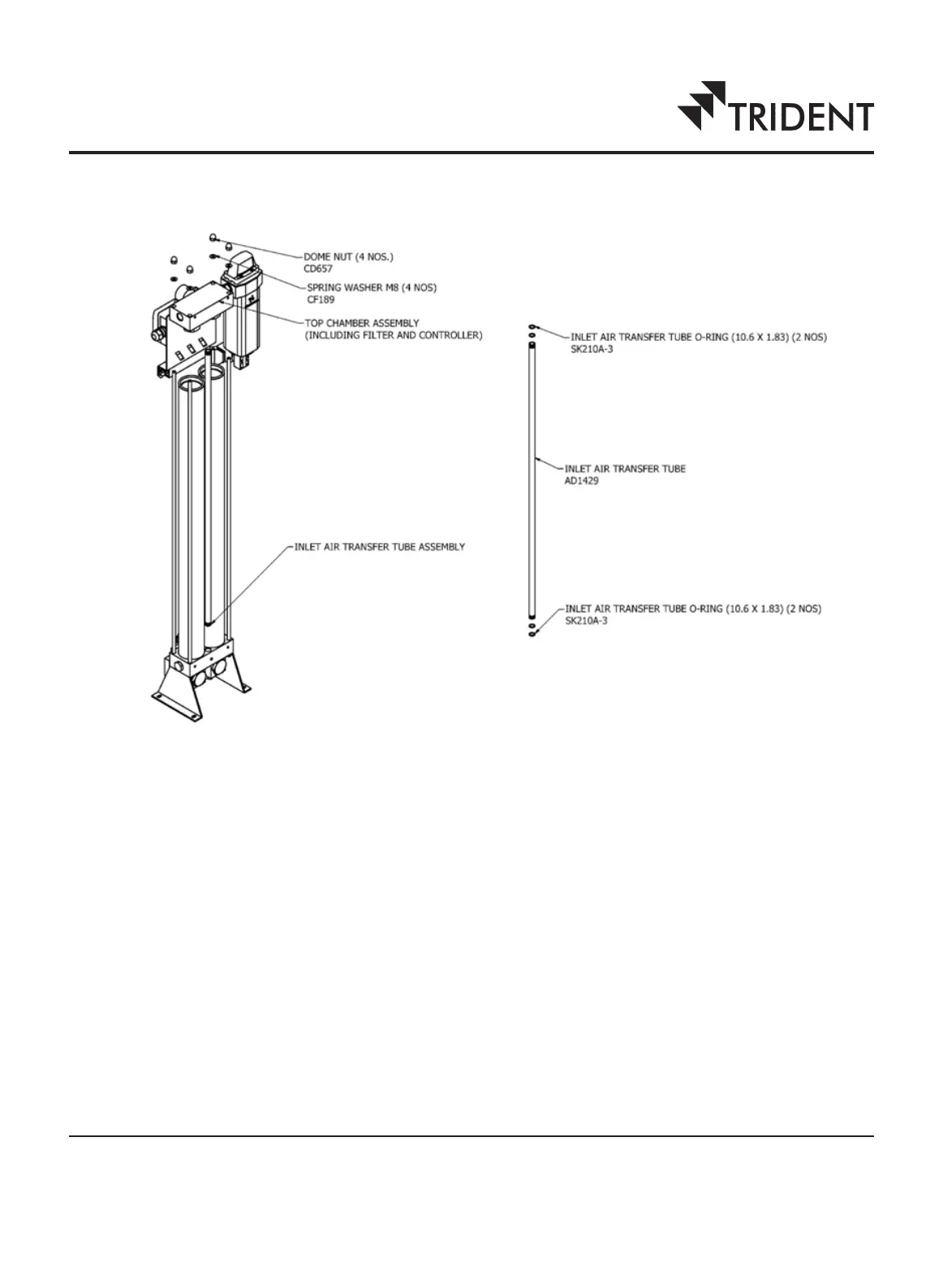

Figure 13. Views showing inlet air tube and associated components-
Dryspell Plus model 10
l Using a screwdriver, disconnect the controller wire from the exhaust solenoid valve and prefilter solenoid valve
l Remove the dome nuts and spring washers
l Remove the top block
l Discard the inlet air transfer tube
l Discard the O-rings (10.6 mm * 1.83 mm)
l Replace the inlet transfer tube with a new one
l Fix the inlet tube on the bottom block with new O-rings
l Replace the top block
l Complete the reassembly with the spring washers and dome nuts
23
