Trident DRYSPELL PLUS 10 - Servicing the Exhaust Valve

l Remove the socket head cap screws using a 5 mm Allen key
l Remove the spring washer and the end cover
l Discard the three O-rings (51.6 mm * 2.4 mm)
l Draw the shuttle guide out using a 6 mm bolt
l Clean the shuttle guide
l Discard the O-ring (51.6 mm * 2.4 mm)
l Remove the shuttle closer and o-ring (39.34 * 2.62) and discard it Replace it with new one
l Remove the shuttle inlet and the shuttle closer
l Discard the circlip and replace it with a new circlip
l Reassemble the parts. Replace the discarded parts with new components
8.5.3.3 Servicing the exhaust valve

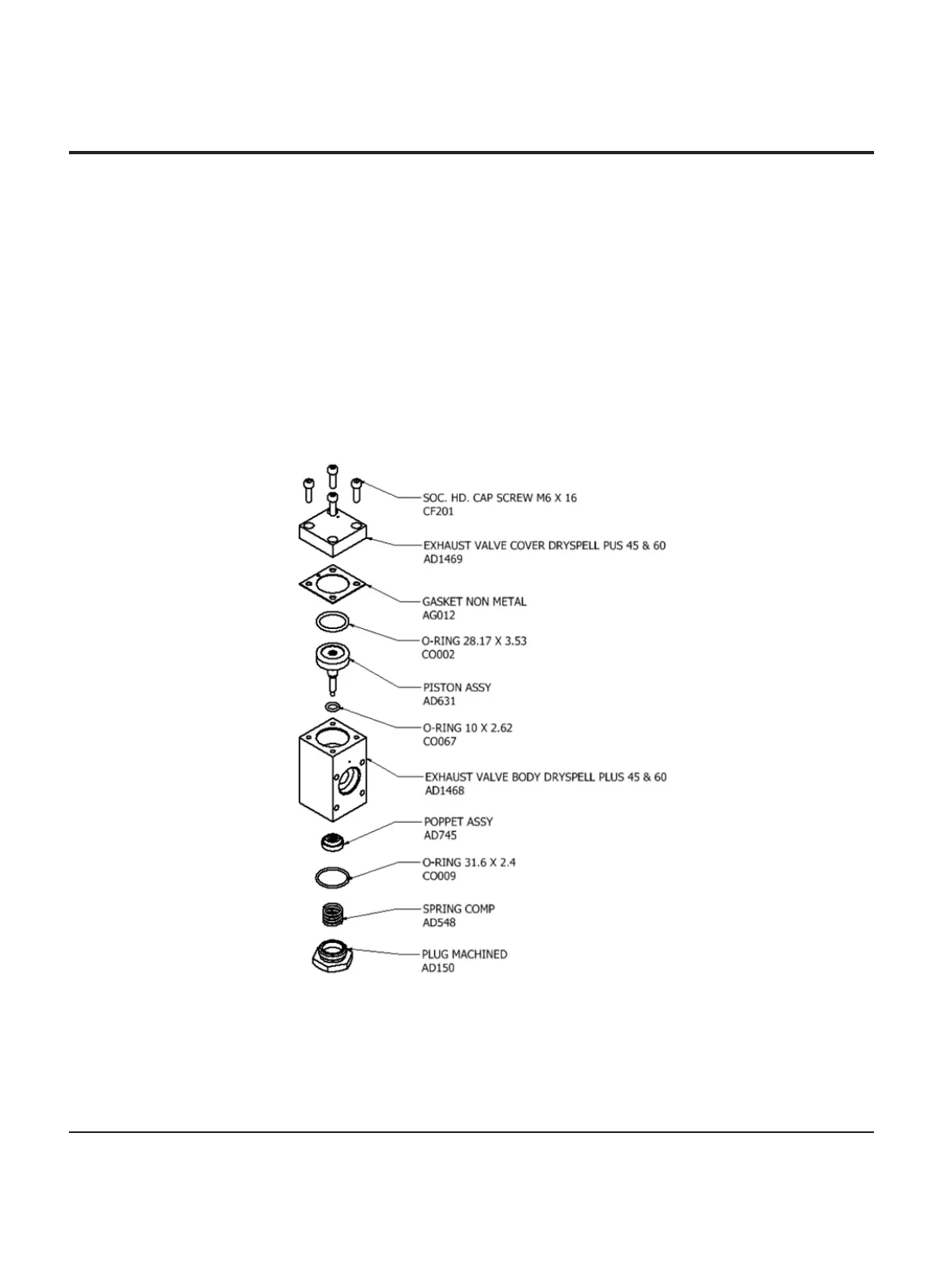

Figure 22. Exploded view of exhaust valve- Dryspell Plus models 45 and 60
