8.5.4.4 Servicing the exhaust valve 100 & above

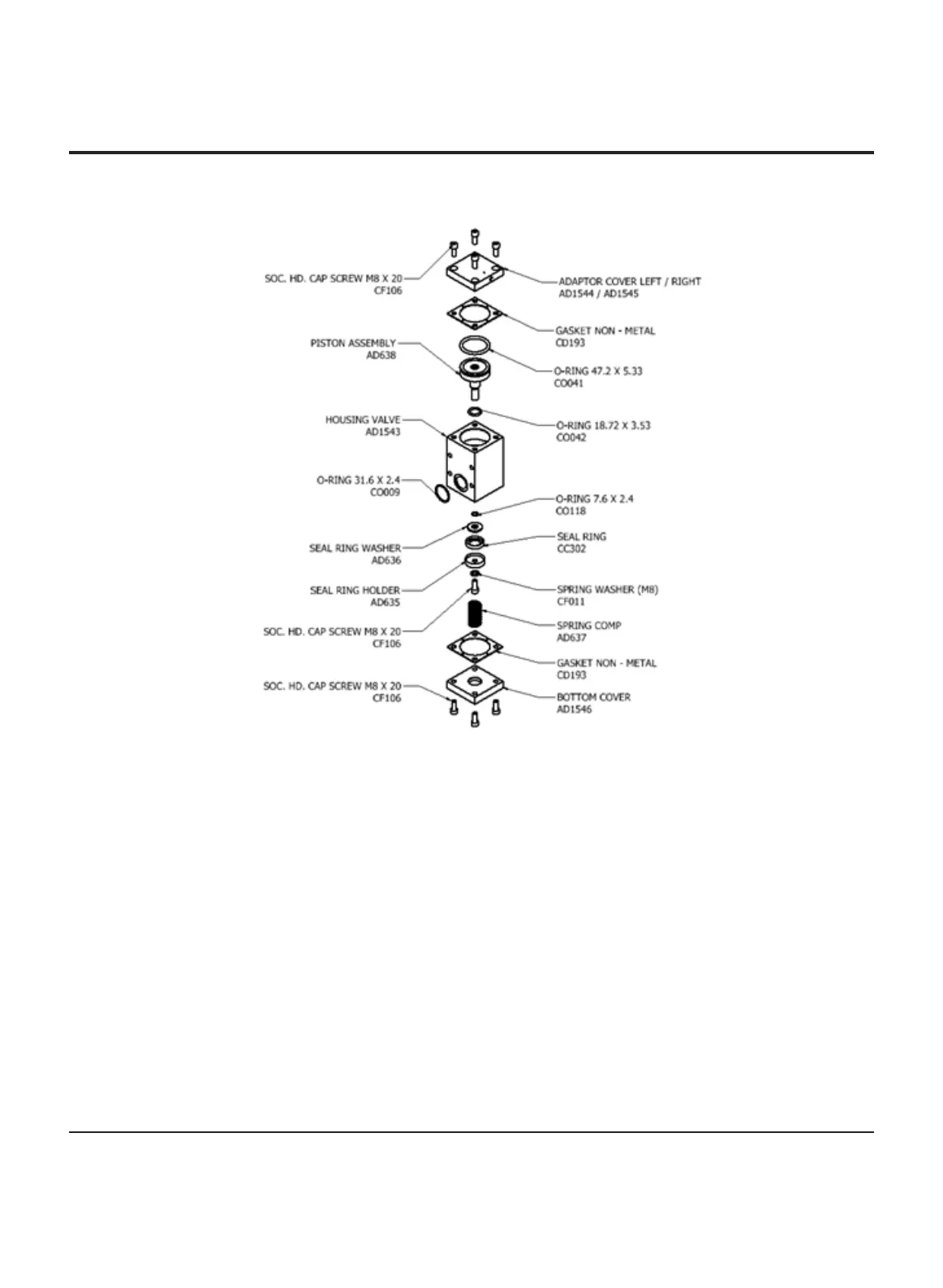

Figure 29. Exploded view of exhaust valve- Dryspell Plus models 100 & above
l Remove M8 * 20 cap screw
l Remove the bottom cover and discard & replace the
gasket non metal
l Remove the spring compression
l Remove the cap screw M8 * 20 and spring washer
l Remove seal ring washer and holder
l Replace the seal ring
l Remove the o -ring 7.6 *2.4 from the valve housing
l Remove M * 20 cap screw to remove the adapter cover
l Remove the adapter cover and discard the gasket non
metal and replace with new one
l Push the poppet assembly outside
l Replace the O- ring 47.2 * 5.33 andO - ring 18.72 *3.53
l Reassemble the piston assembly into housing valve
l Fix the top adaptor cover
l Reassemble the O- ring 7.6*2.4 into the housing valve
l Reassemble the Seal ring assembly and fix the new spring
l Fit the Gasket non-metal
l Reassemble the bottom cover and tighten the screws
INSTRUCTION MANUAL - Dryspell Plus
Reference : Manual Version
44
