8.5.2.2 Servicing the bottom shuttle

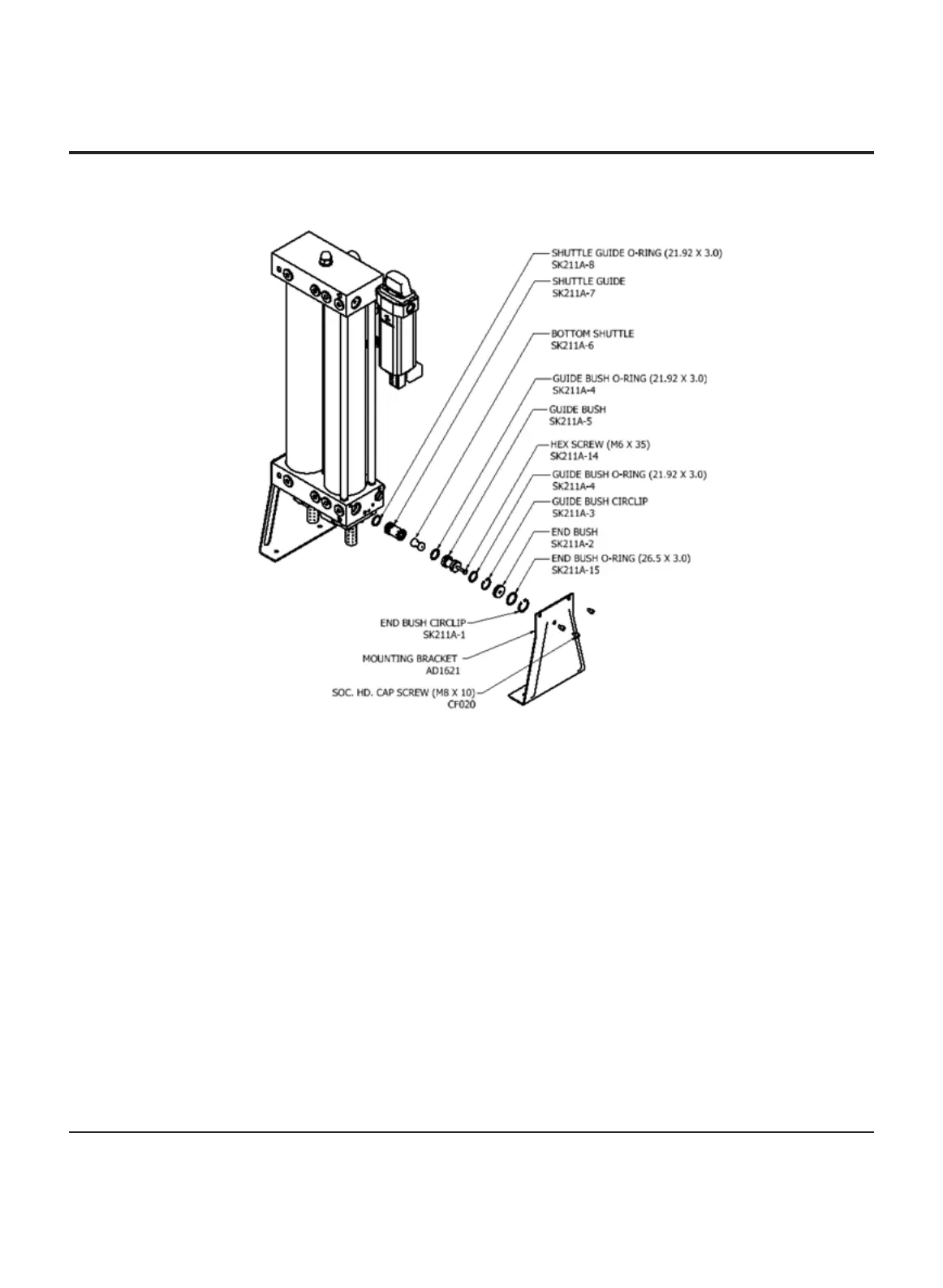

Figure 15. Exploded view of bottom shuttle-Dryspell Plus models 20 and 30
l Unscrew the socket head cap screw (M8) and remove the mounting bracket of the dryer
l Remove the circlip on the end bush and discard it
l Remove the O-ring (26.5 mm * 3 mm) and discard it
l Remove the end bush
l Discard the circlip on the guide bush
l Remove the hex screw assembly
l Remove the guide bush. Discard the O-ring (21.92 mm * 3 mm)
l Remove the shuttle and discard it
l Remove the shuttle guide and clean it. Discard the O-ring (21.92 mm * 3 mm)
l Apply grease on the various parts
l Reassemble the parts of the assembly, replacing the discarded parts with new components
