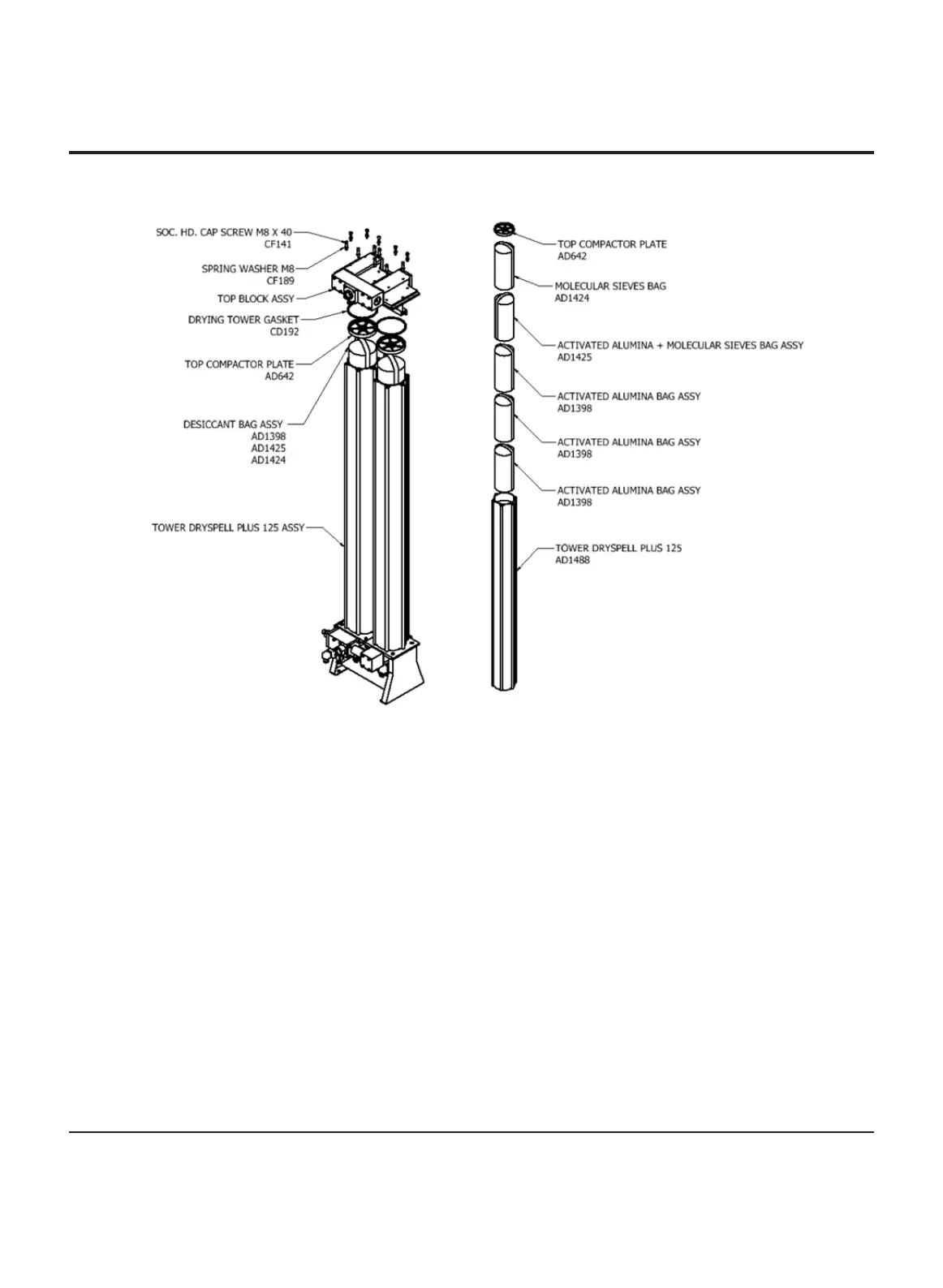

Figure 26. Changing desiccant-Dryspell Plus model 125
l Disconnect the solenoid coil and inlet valve wire connection
l Remove the pilot air connection from the top block assembly
l Remove the socket head cap screws M8 * 40
l Remove the top chamber with the controller
l Remove the drying tower gasket and replace with new ones
l Remove the top compactor plates (two)
l Remove the old desiccant bags
l Clean the drying towers
l Filling the Desiccant bag assembly :
Dryspell Plus model 100:
Fill the desiccant bag assembly firstly with 3 bags of Activated Alumina AD1398 followed by a bag of molecular sieves
AD1424 as shown in the figure 25
INSTRUCTION MANUAL - Dryspell Plus
