8.2. Circuit diagrams

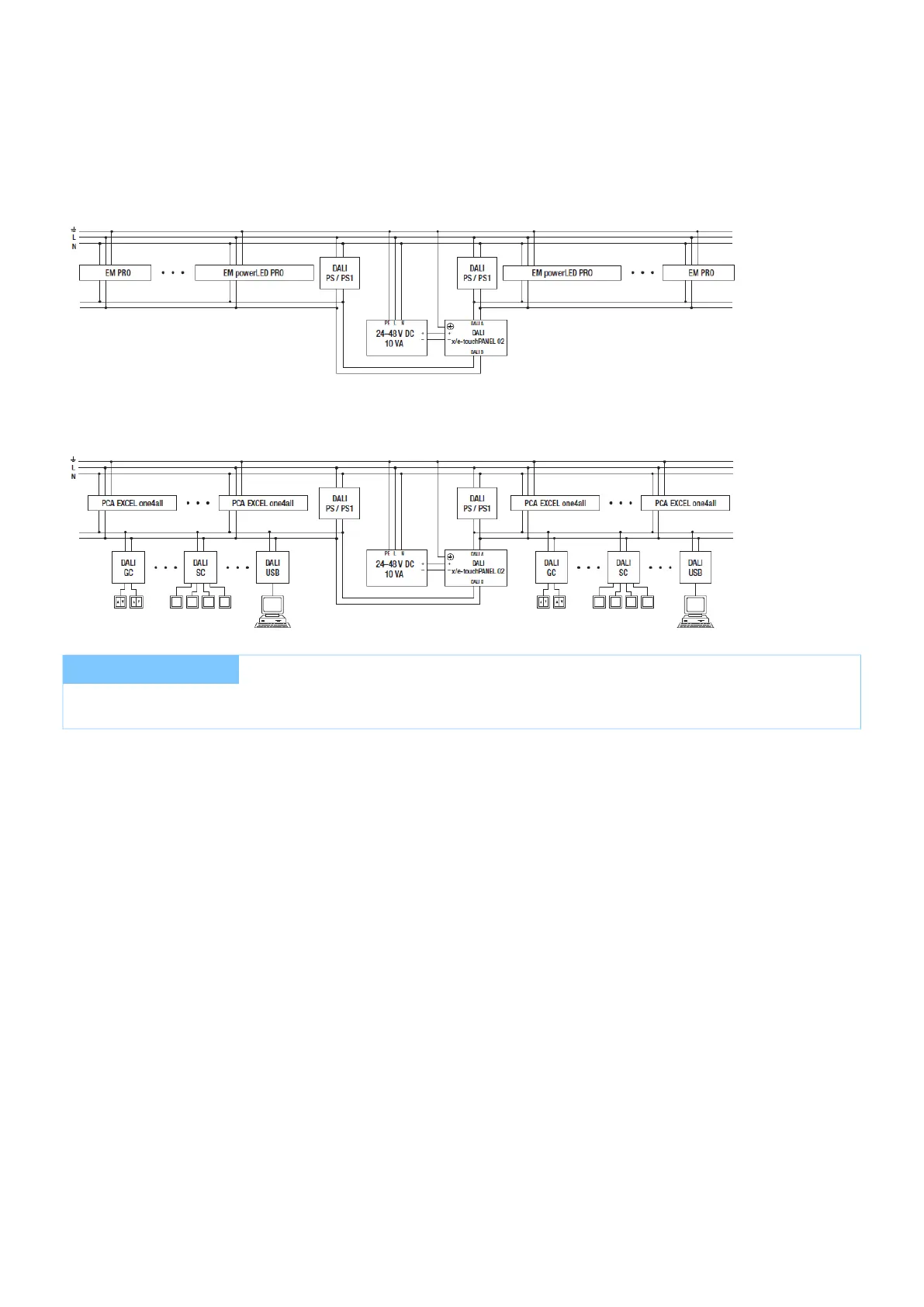

8.2.1. Circuit diagram EMERGENCY Application
8.2.2. Circuit diagram Basic Colour, Plug Application
...
I NOTICE
The x/e-touchPANEL requires a separate bus supply for each DALI line.
