Tridonic x/e-touchPANEL 02 - Page 96

Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en
Interfaces
c
96 / 118
5.
6.
7.
8.
9.
10.

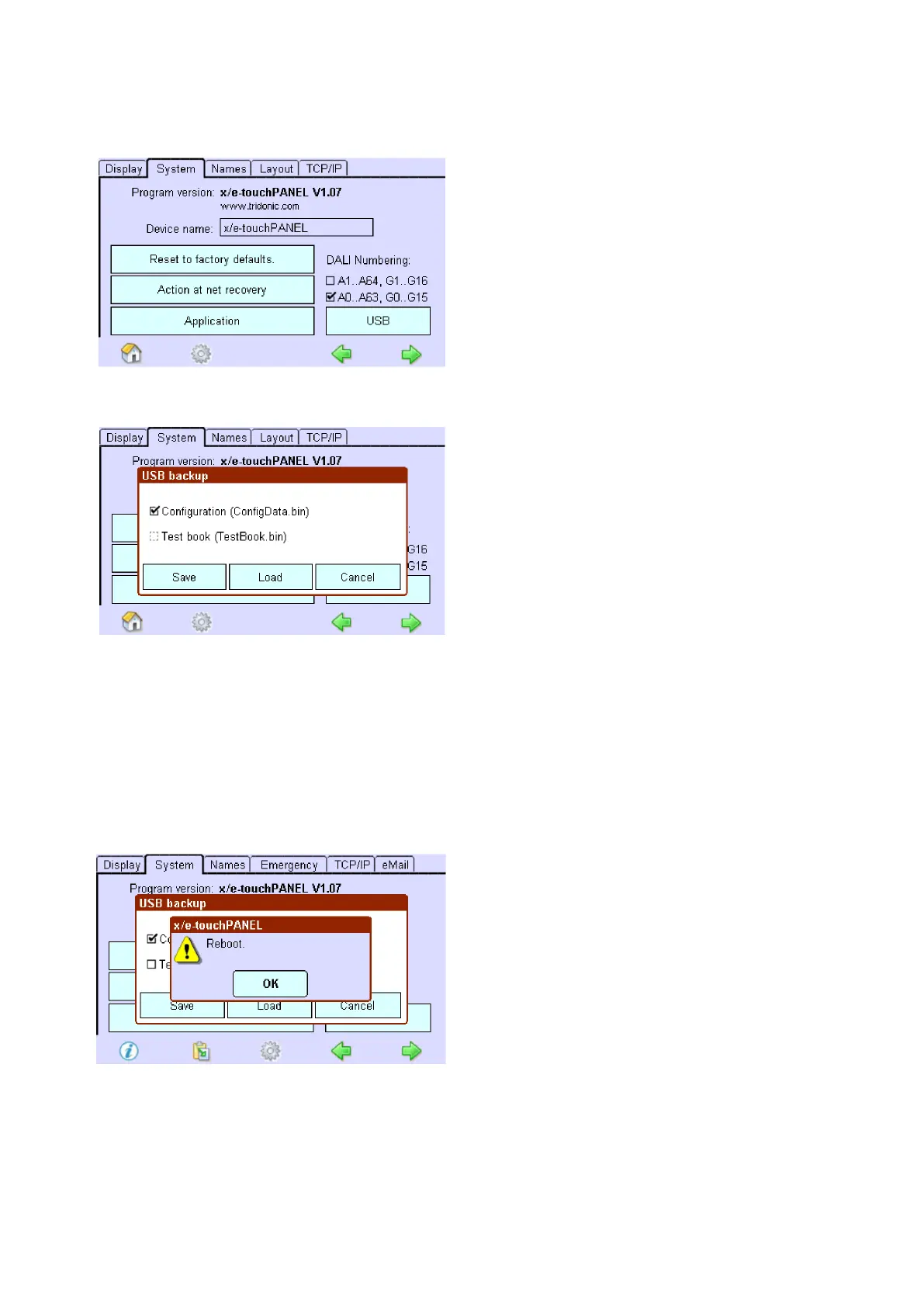

Click on "USB" button
-> The dialog box "USB backup" is displayed.
Activate checkbox "Configuration (ConfigData.bin)" to load configuration file to x/e-touchPANEL (all
Applications).
- or -
Activate checkbox "Test book (TestBook.bin)" to load testbook to x/e-touchPANEL (only available in
EMERGENCY Application).
Click button "Configuration".
Click button "Load".
-> The dialog box "Reboot" is displayed.
Confirm with OK.
-> x/e-touchPANEL is restarted.
-> After restart the configuration file and/or testbook is loaded.
