2.4.6 500-06 SERIES MATRIX CARDS
Finally, fit these in the remaining positions. Depending on the system order, the quantities of
matrix cards and RCU’s may not match exactly. The current version is part no. 500-06-02;
legacy versions are covered in section 8.1.

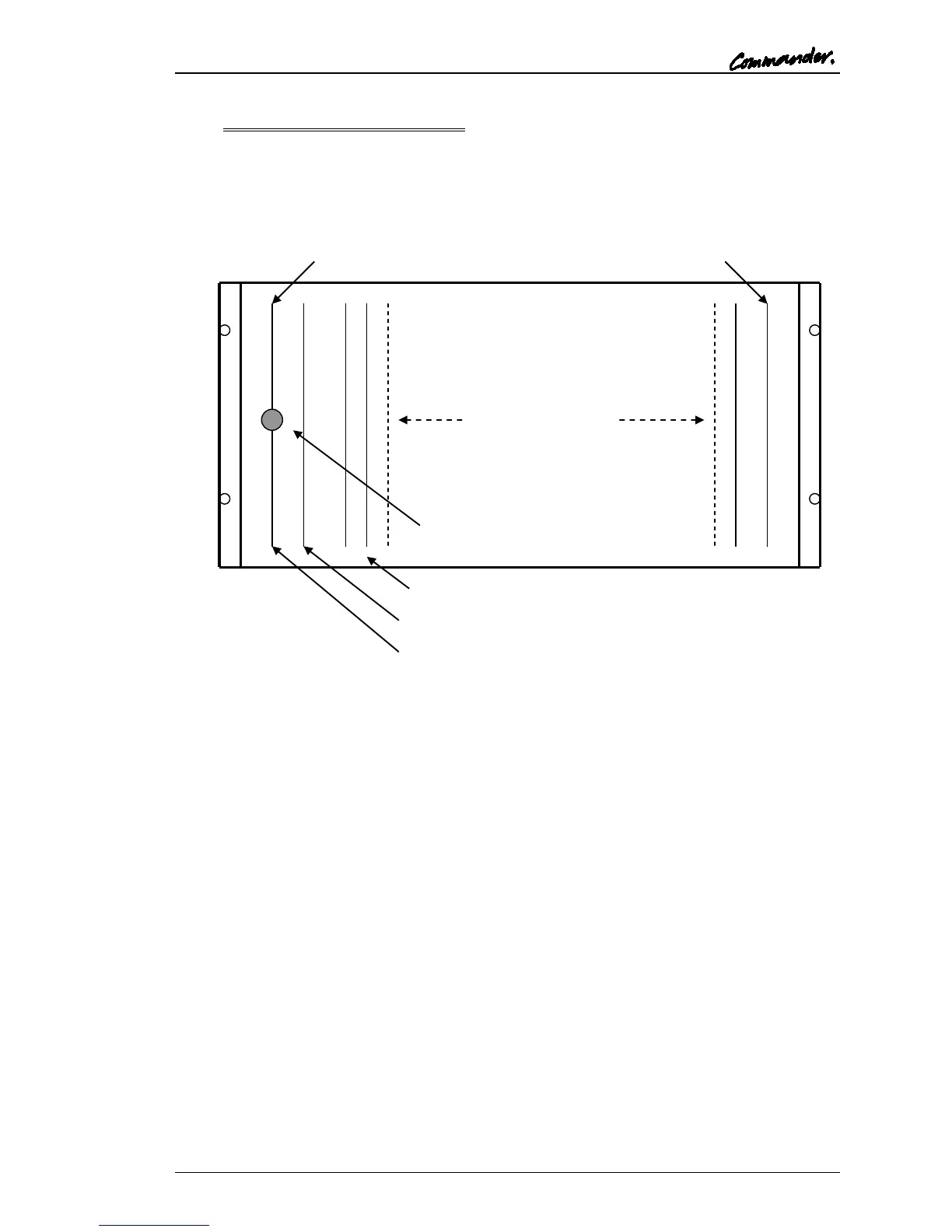

The following diagram shows the location of these modules within the frame.
The 500-06 modules have an onboard link, which increases the gain of the 6
th
port on the
card, when it is used in conjunction with a "cameras" rear connector unit (RCU). If this option
has been ordered the frame will be fitted with an alternative RCU which has a 15 way D type
connector in the 6
th
position. Refer to section 3.5 for information on setting this link.
The 500-06-02 modules also have compatibility links, which allows them to emulate the older
500-06-00 series modules. When 500-06-00 and 500-06-02 modules are fitted together in a
single frame, links J8 and J9 on the 500-06-02 should be set to position A. See section 3.5.1
for details.
