Trilogy Communications Commander - Way Rotary Encoder Expansion Panel; Specification; Rear Connector Layout

Commander Installation Guide
Page 42 of 81 Trilogy Communications Limited
Issue 9.1
5.6 500-43-50 12 WAY ROTARY ENCODER EXPANSION PANEL
These may only be connected to panels from the 500-xx--5x range.
Information about the following legacy panel types is also provided here:
• 500-43-51 1U, 8 REN level control panel
5.6.1 SPECIFICATION
Dimensions
485mm wide x 44.5mm high x 150mm deep
(excluding connectors) 200m approx. (including
mating connectors)
19” x 1RU rack mounting
Mains Input
90 – 260 V ac, 50-60Hz
Current Consumption
150mA @ 90V ac, 50mA @ 250V ac.

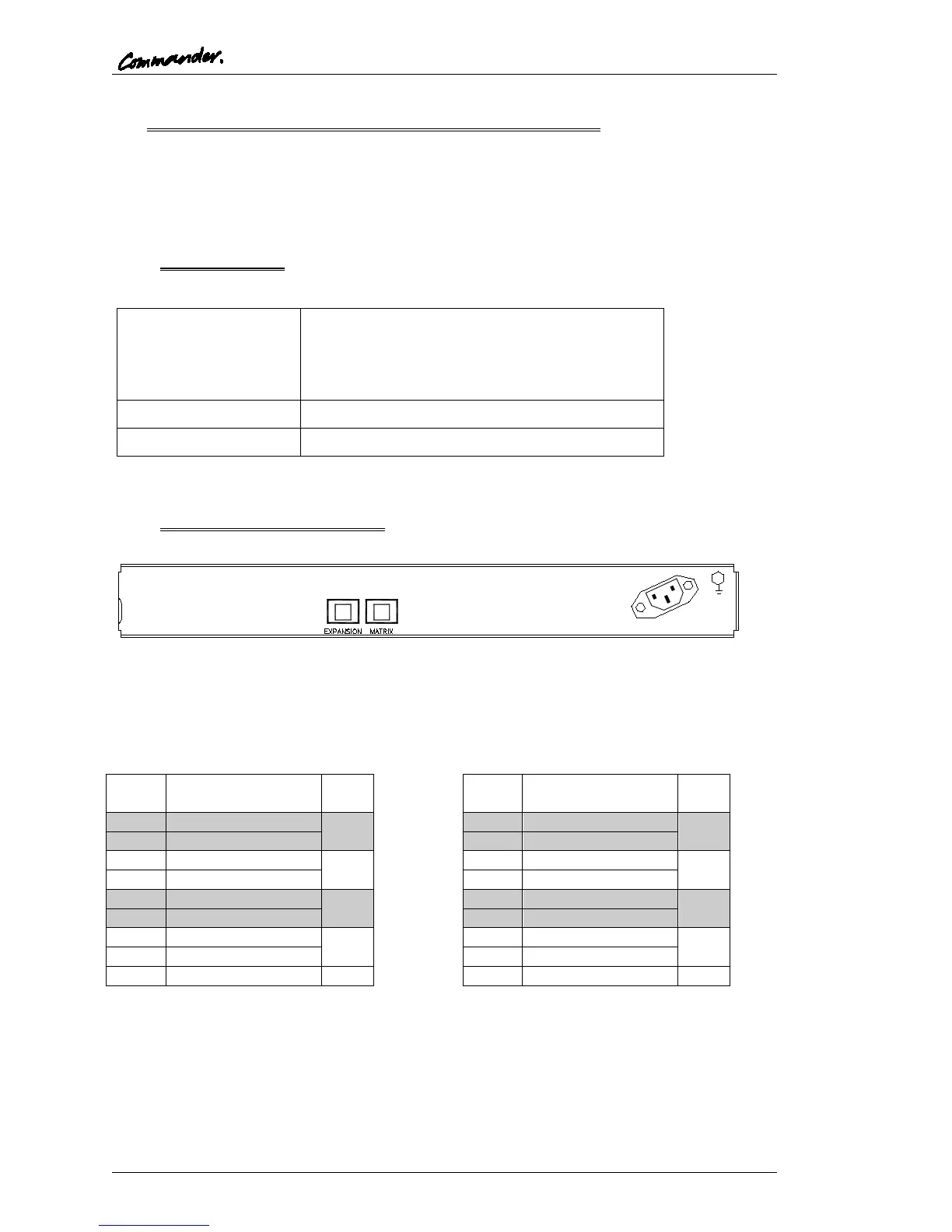

5.6.2 REAR CONNECTOR LAYOUT
The “expansion in” and “expansion out” connections are provided on RJ45 sockets. The pin-
out format of these connectors is given below.
Expansion in (Matrix) – RJ-45 fixed
socket on panel
RJ-45
Pin
Function
1
Panel Data out +
Pair
1
2
Panel Data out -
3
Panel Data In +
Pair
2
6
Panel Data In -
5
Panel Audio out +
Pair
3
4
Panel Audio out -
7
Panel Audio in +
Pair
4
8
Panel Audio in -
Cable Screen
Expansion out (Expansion) – RJ-45
fixed socket on panel
RJ-45
Pin
Function
1
Panel Data in +
Pair
1
2
Panel Data in -
3
Panel Data out +
Pair
2
6
Panel Data out -
5
Panel Audio out +
Pair
3
4
Panel Audio out -
7
Panel Audio in +
Pair
4
8
Panel Audio in -
Cable Screen
