Commander Installation Guide
Trilogy Communications Limited Page 43 of 81
Issue 9.1

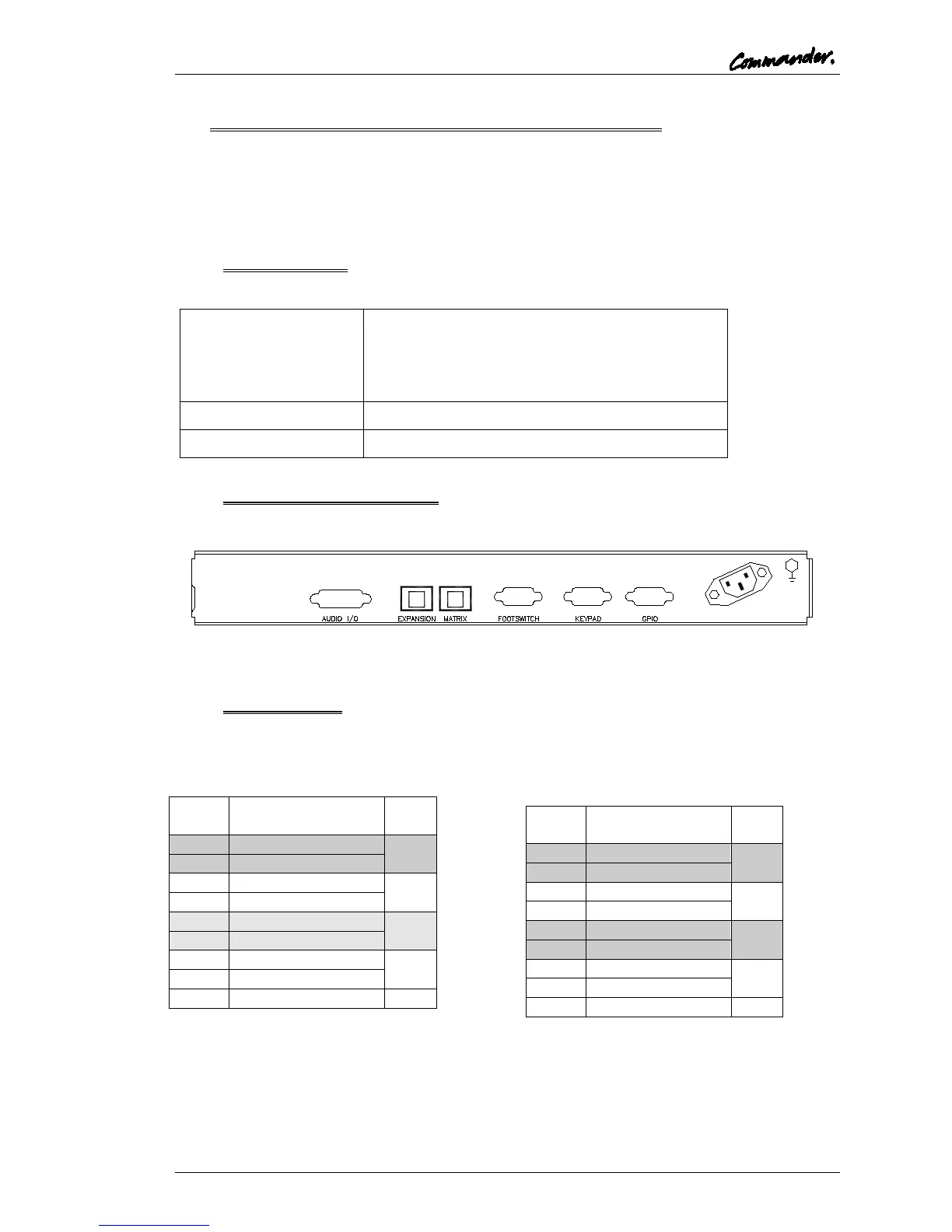

5.7 500-42-50 1U, 10 LEVER KEY PANEL WITH LED DISPLAYS.
Information about the following legacy panel types is also provided here:
• 500-44-50 1U, 10 lever key reduced facility control panel without displays.
• 500-44-51
5.7.1 SPECIFICATION
Dimensions
485mm wide x 44.5mm high x 150mm deep
(excluding connectors) 200m approx. (including
mating connectors)
19” x 1RU rack mounting
Mains Input
90 – 260 V ac, 50-60Hz
Current Consumption
150mA @ 90V ac, 50mA @ 250V ac.
5.7.2 REAR CONNECOR LAYOUT
5.7.3 CONNECTIONS
Expansion out – RJ-45 fixed socket on
panel
RJ-45
Pin
Function
1
Panel Data in +
Pair
1
2
Panel Data in -
3
Panel Data out +
Pair
2
6
Panel Data out -
5
Panel Audio out +
Pair
3
4
Panel Audio out -
7
Panel Audio in +
Pair
4
8
Panel Audio in -
Cable Screen
Matrix – RJ-45 fixed socket on panel
RJ-45
Pin
Function
1
Panel Data out +
Pair
1
2
Panel Data out -
3
Panel Data In +
Pair
2
6
Panel Data In -
5
Panel Audio out +
Pair
3
4
Panel Audio out -
7
Panel Audio in +
Pair
4
8
Panel Audio in -
Cable Screen
