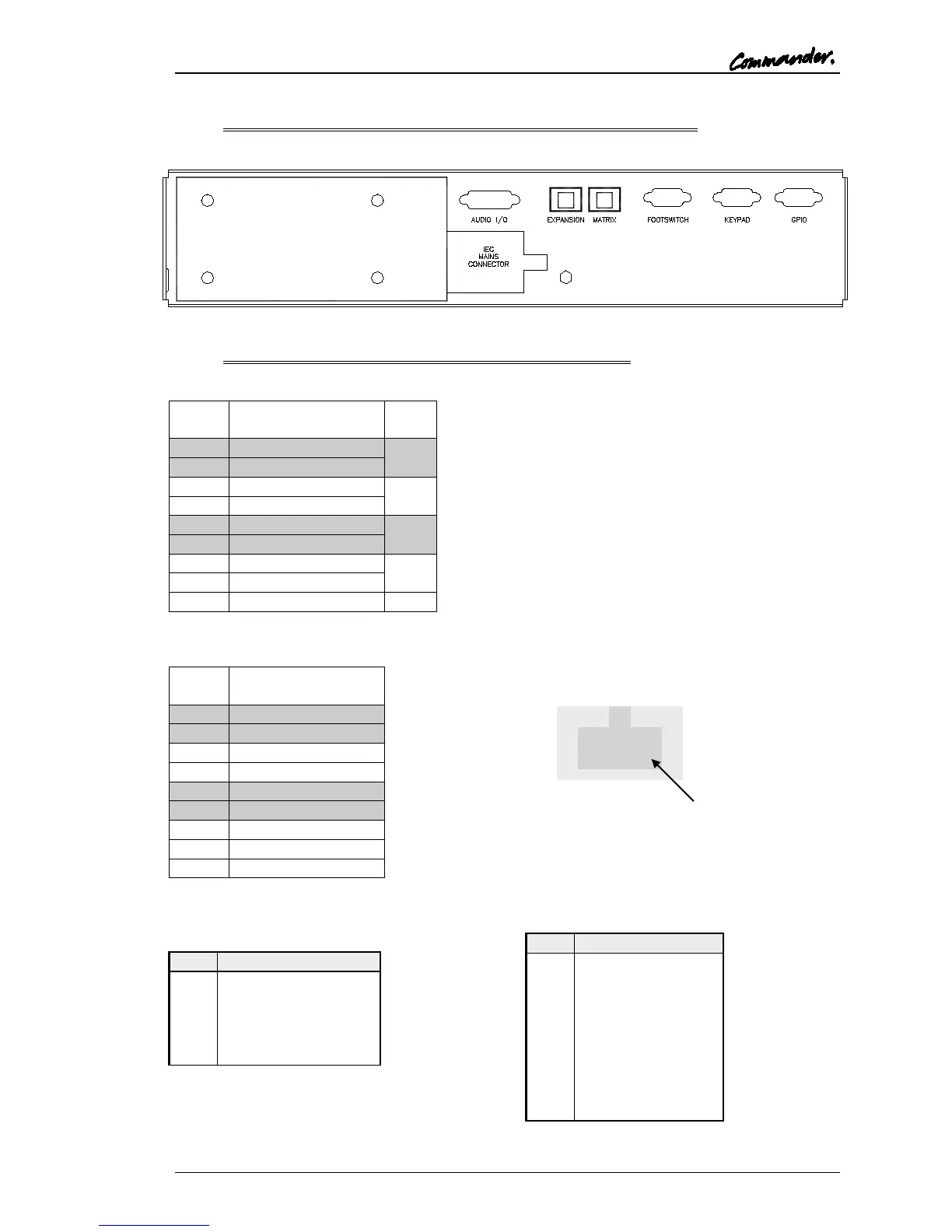

5.5.2 500-3X-5X SERIES STANDARD CONTROL PANEL REAR VIEW
5.5.3 500-3X-5X SERIES CONTROL PANEL CONNECTIONS
Matrix – RJ-45 fixed socket on panel
RJ-45
Pin
Function
1
Panel Data out +
Pair
1
2
Panel Data out -
3
Panel Data In +
Pair
2
6
Panel Data In -
5
Panel Audio out +
Pair
3
4
Panel Audio out -
7
Panel Audio in +
Pair
4
8
Panel Audio in -
Cable Screen
Expansion Port – RJ45 socket
RJ-45
Pin
Function
1
Panel Data in +
2
Panel Data in -
3
Panel Data out +
6
Panel Data out -
5
Panel Audio out +
4
Panel Audio out -
7
Panel Audio in +
8
Panel Audio in -
Cable Screen
Headset - 5 Pin XLR Fixed Socket (front
panel)
Pin
Function
1
Mic IN (Screen)
2
Mic IN
3
Headset Gnd
4
Headset Out
5
Headset Out
Foot Switch - D9 Fixed Socket
Pin
Function
1
Foot Switch Input
2
No Connection
3
Chassis Ground
4
No Connection
5
No Connection
6
Ground
7
No Connection
8
No Connection
9
No Connection
Matrix and Expansion RJ45
socket (view from rear of panel)
PIN 1
