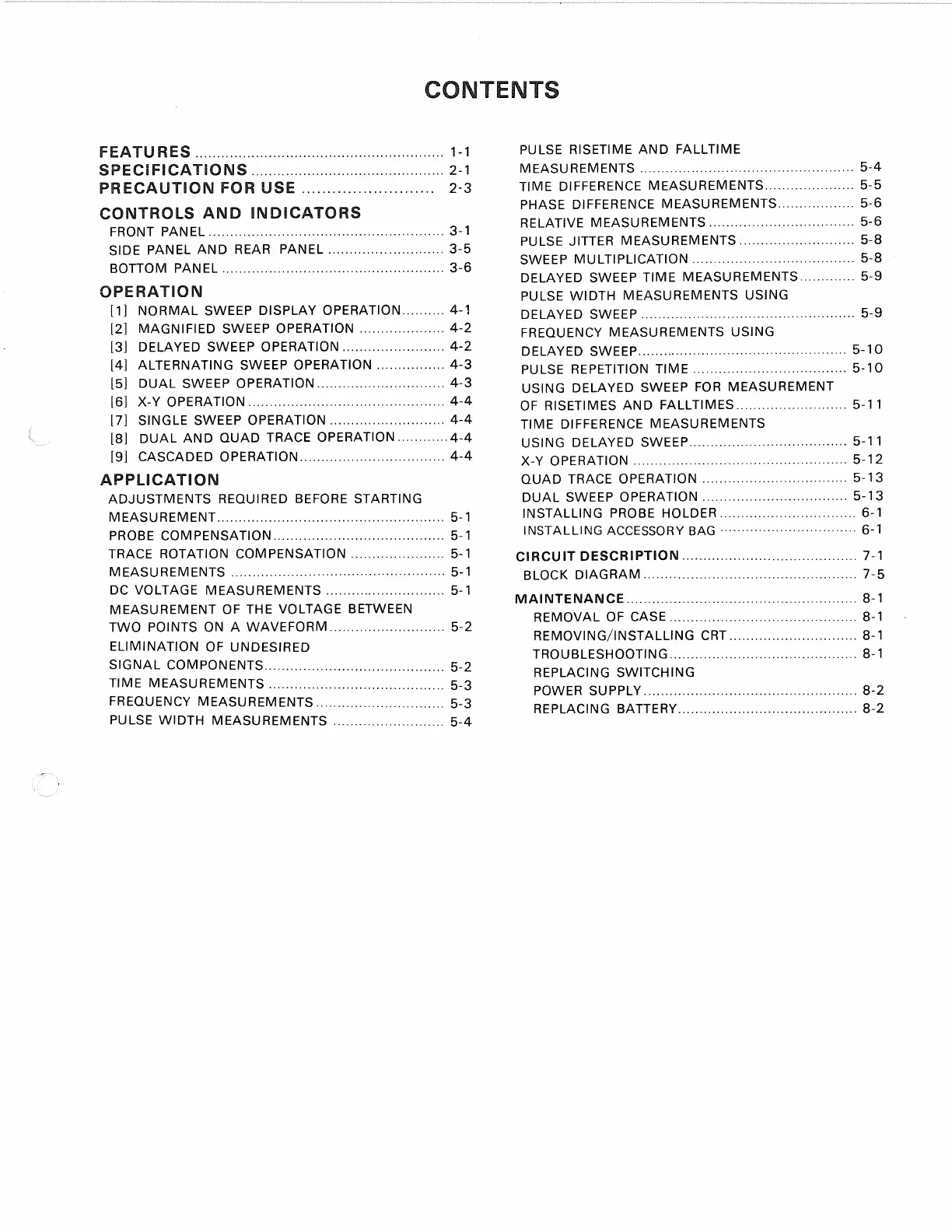

CONTENTS
FEATURES 1-1
SPECIFICATIONS 2-1
PRECAUTION FOR USE 2-3
CONTROLS AND INDICATORS
FRONT
PANEL 3-1
SIDE
PANEL AND REAR PANEL 3-5
BOTTOM PANEL 3-6
OPERATION
[1]
NORMAL SWEEP DISPLAY OPERATION 4-1
12]
MAGNIFIED SWEEP OPERATION 4-2
[3]
DELAYED SWEEP OPERATION 4-2
14]
ALTERNATING SWEEP OPERATION 4-3
15]
DUAL SWEEP OPERATION 4-3
[6]
X-Y OPERATION 4-4
[7]
SINGLE SWEEP OPERATION 4-4
[8]
DUAL AND QUAD TRACE OPERATION 4-4
[9]
CASCADED OPERATION 4-4
APPLICATION
ADJUSTMENTS REQUIRED BEFORE STARTING
MEASUREMENT 5-1
PROBE COMPENSATION 5-1
TRACE ROTATION COMPENSATION 5-1
MEASUREMENTS 5-1
DC
VOLTAGE MEASUREMENTS 5-1
MEASUREMENT OF THE VOLTAGE BETWEEN
TWO POINTS ON A WAVEFORM 5-2
ELIMINATION OF UNDESIRED
SIGNAL COMPONENTS 5-2
TIME
MEASUREMENTS 5-3
FREQUENCY MEASUREMENTS 5-3
PULSE WIDTH MEASUREMENTS 5-4
PULSE RISETIME AND FALLTIME
MEASUREMENTS 5-4
TIME
DIFFERENCE MEASUREMENTS 5-5
PHASE DIFFERENCE MEASUREMENTS 5-6
RELATIVE MEASUREMENTS 5-6
PULSE JITTER MEASUREMENTS 5-8
SWEEP MULTIPLICATION 5-8
DELAYED SWEEP TIME MEASUREMENTS 5-9
PULSE WIDTH MEASUREMENTS USING
DELAYED SWEEP 5-9
FREQUENCY MEASUREMENTS USING
DELAYED SWEEP 5-10
PULSE REPETITION TIME 5-10
USING
DELAYED SWEEP FOR MEASUREMENT
OF
RISETIMES AND FALLTIMES 5-11
TIME
DIFFERENCE MEASUREMENTS
USING
DELAYED SWEEP 5-11
X-Y OPERATION 5-12
QUAD TRACE OPERATION 5-13
DUAL SWEEP OPERATION 5-13
INSTALLING PROBE HOLDER 6-1
INSTALLING ACCESSORY BAG 6-1
CIRCUIT DESCRIPTION 7-1
BLOCK DIAGRAM 7-5
MAINTENANCE 8-1
REMOVAL OF CASE 8-1
REMOVING/INSTALLING CRT 8-1
TROUBLESHOOTING 8-1
REPLACING SWITCHING
POWER SUPPLY 8-2
REPLACING BATTERY 8-2
