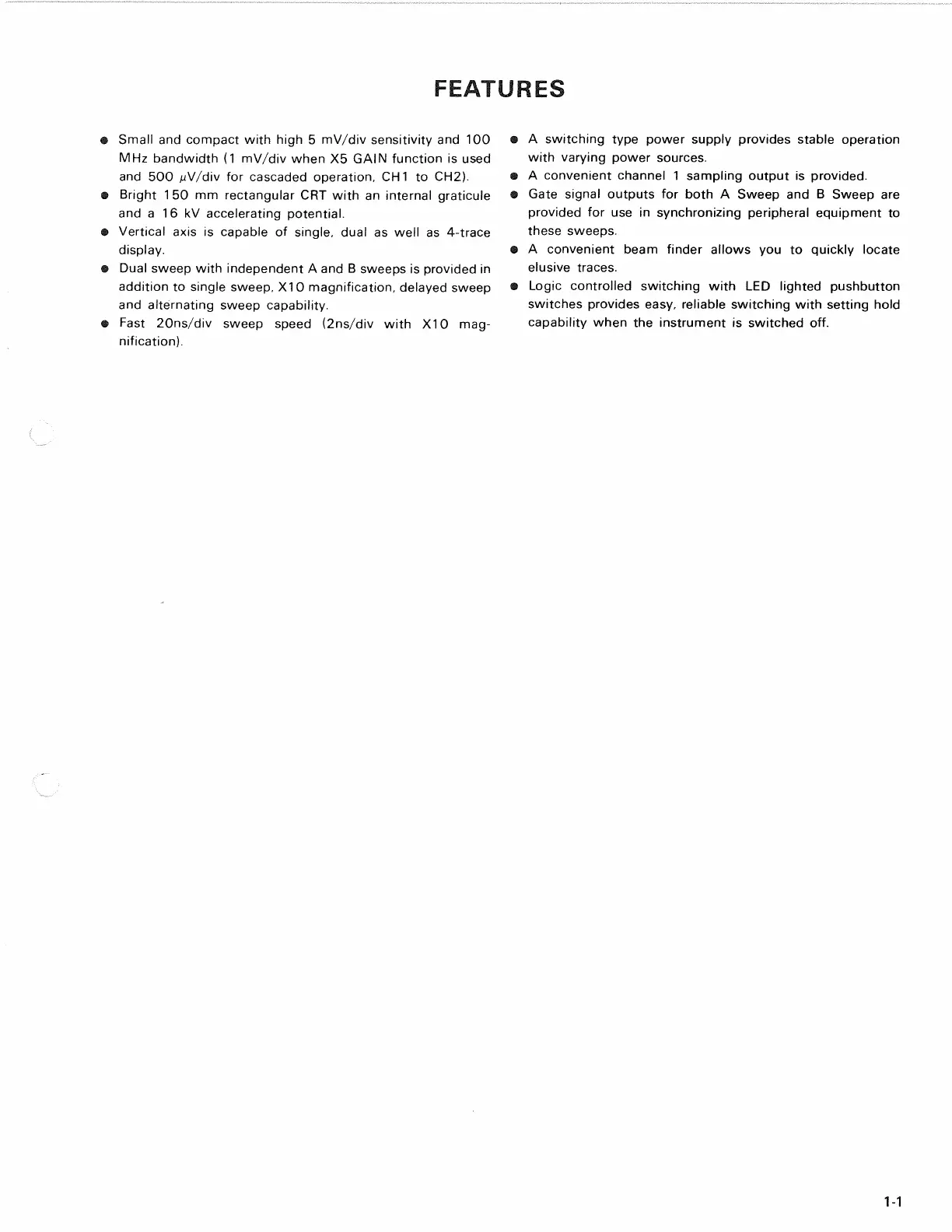

FEATURES
• Small and compact with high 5 mV/div sensitivity and 100
MHz bandwidth (1 mV/div when X5 GAIN function is used
and 500 ^V/div for cascaded operation, CH1 to CH2).
• Bright 1 50 mm rectangular CRT with an internal graticule
and a
1
6 kV accelerating potential.
• Vertical axis is capable of single, dual as well as 4-trace
display.
• Dual sweep with independent A and B sweeps is provided in
addition to single sweep, X10 magnification, delayed sweep
and alternating sweep capability.
• Fast 20ns/div sweep speed (2ns/div with X10 mag-
nification).
• A switching type power supply provides stable operation
with varying power sources.
• A convenient channel 1 sampling output is provided.
• Gate signal outputs for both A Sweep and B Sweep are
provided for use in synchronizing peripheral equipment to
these sweeps.
• A convenient beam finder allows you to quickly locate
elusive traces.
• Logic controlled switching with LED lighted pushbutton
switches provides easy, reliable switching with setting hold
capability when the instrument is switched off.
