17

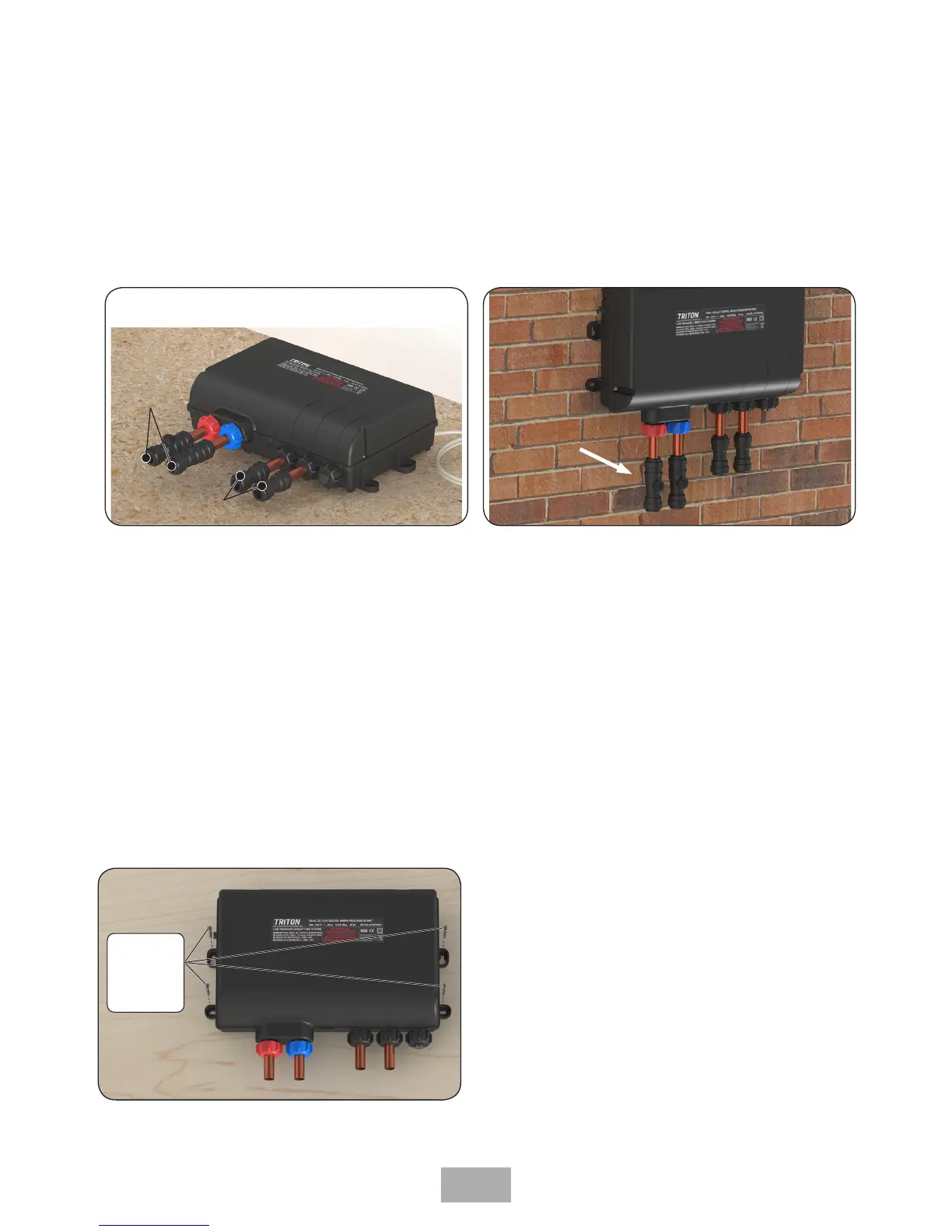

The Digital Mixer Processor unit MUST only be positioned as shown.
The Digital Mixer Processor unit can be mounted on a horizontal surface in any orientation
(Fig.6).
When mounting on a vertical surface the processing unit outlet MUST be at the bottom
(Fig.7). Failure to position the unit correctly could result in a significant reduction in
performance.
Decide on the position for the Digital Mixer Processor unit. Position the Digital Mixer
Processor unit in a dry, well ventilated area.
The Digital Mixer Processor unit MUST always be positioned either flat on a suitable surface
or on a wall so that there is easy access for installation and maintenance.
Mark the four locating screw points for the base. If fixing to brick or a stud partition drill
and plug the wall. (The wall plugs provided are suitable for most brick walls — use an
appropriate masonry drill, but if the wall is plasterboard or a soft building block, you must
use suitable wall plugs and an appropriate drill bit). Secure the Digital Mixer Processor unit
in position using the 4 screws supplied (Fig.8)
Hot
& Cold
Inlets
Outlets
Ensure sufcient space is left surrounding
the processor unit to allow for pipework,
connections and
maintenance
Fig.8
IMPORTANT
If wall mounting the Digital
Mixer Processor unit the out-
lets MUST always be at the
BOTTOM (Fig.7)
Fig.7
Mixer processor
installation
