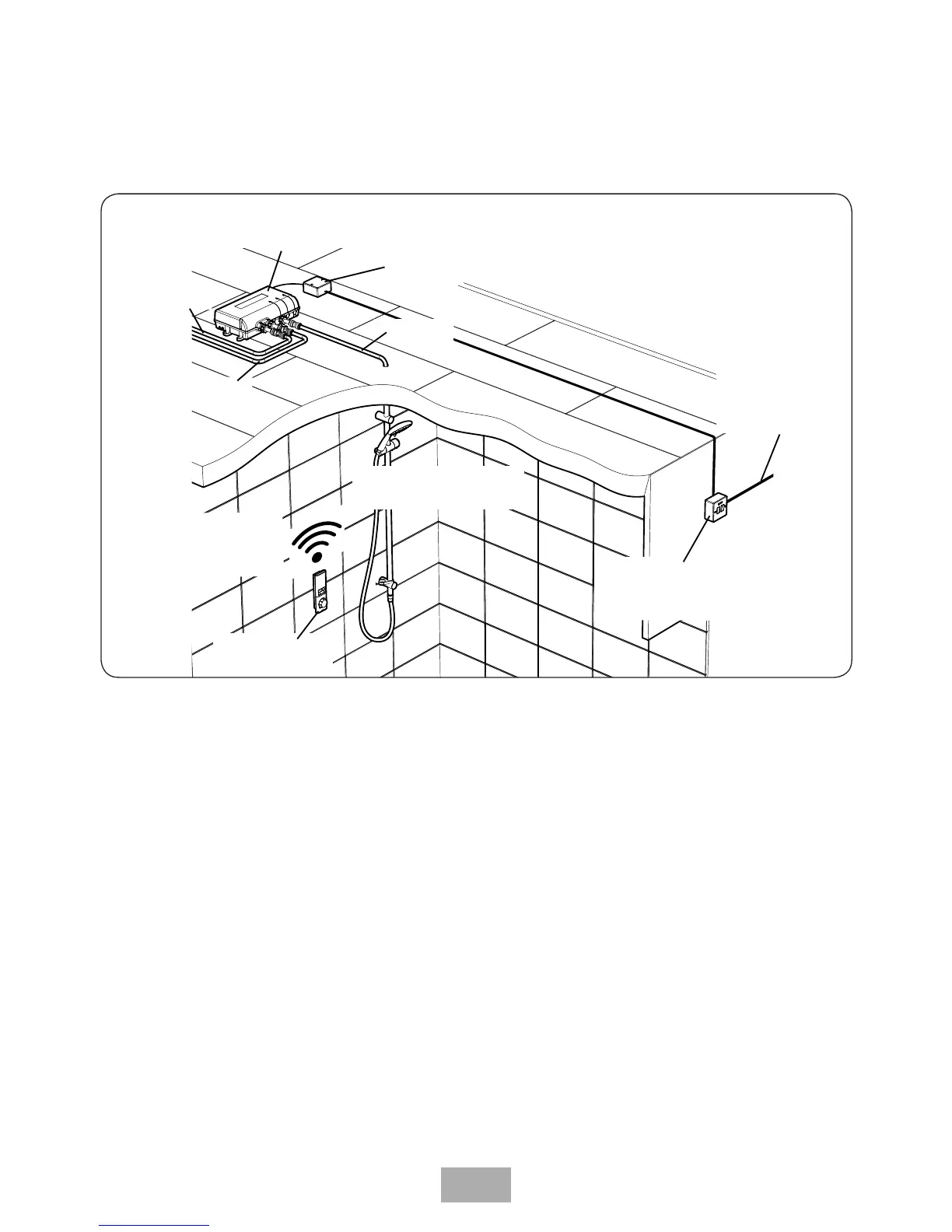

Installation schematic
Examples of poor installation practices
DO NOT install the Digital Mixer Processor unit where it can become frozen
DO NOT install the Digital Mixer Processor unit where it can subjected to ambient
temperatures in excess of 40°C
DO NOT position the Digital Mixer Processor unit where maintenance access is poor or
unsafe
DO NOT install into a system where the cold water cistern holds less than 115 litres (230
litres if other outlets use the same cistern)
DO NOT install into a system where air locking could occur
DO NOT install the wireless Digital Control Panel in a position where communication with
the Digital Mixer Processor unit is poor e.g installed under a metal bath, in front of a metal
cistern, on foil backed plasterboard, outside of the 10 metre range.
DO NOT install the Digital Mixer Processor unit onto shared water supplies
DO NOT fit plastic pipework unless rigidly supported
DO NOT install the low pressure (gravity) Digital Mixer Processor unit less than 100mm from
the lowest level of water in the cistern
DO NOT install a high pressure/combination boiler Digital Mixer Processor unit to a low
pressure pumped gravity system
Mixer processor
installation
