19
IMPORTANT: The fittings on the inlet and outlets are the push-fit type. The pipework must
be cut with a pipe cutter and all burrs and rough edges removed from the end of the tube.
The fittings can be used with copper and plastic pipe.
If using chrome plated copper pipe, remove the first 25 mm of plating completely from the
connecting surfaces. If not completely removed then the collet will not grip the pipe and
under pressure the pipe may be forced out.
Before completing the connection of the water supplies to the inlets of the Digital Mixer
Processor unit, flush out the pipework to remove all swarf and system debris.
1. Turn off the water supplies either at the mains stop valve or the isolating stop valve.
2. Having decided on the position of the unit and direction of pipe entry, complete the
pipework to the Digital Mixer Processor unit.
3. Check for leaks before connecting the pipework to the Digital Mixer Processor unit.

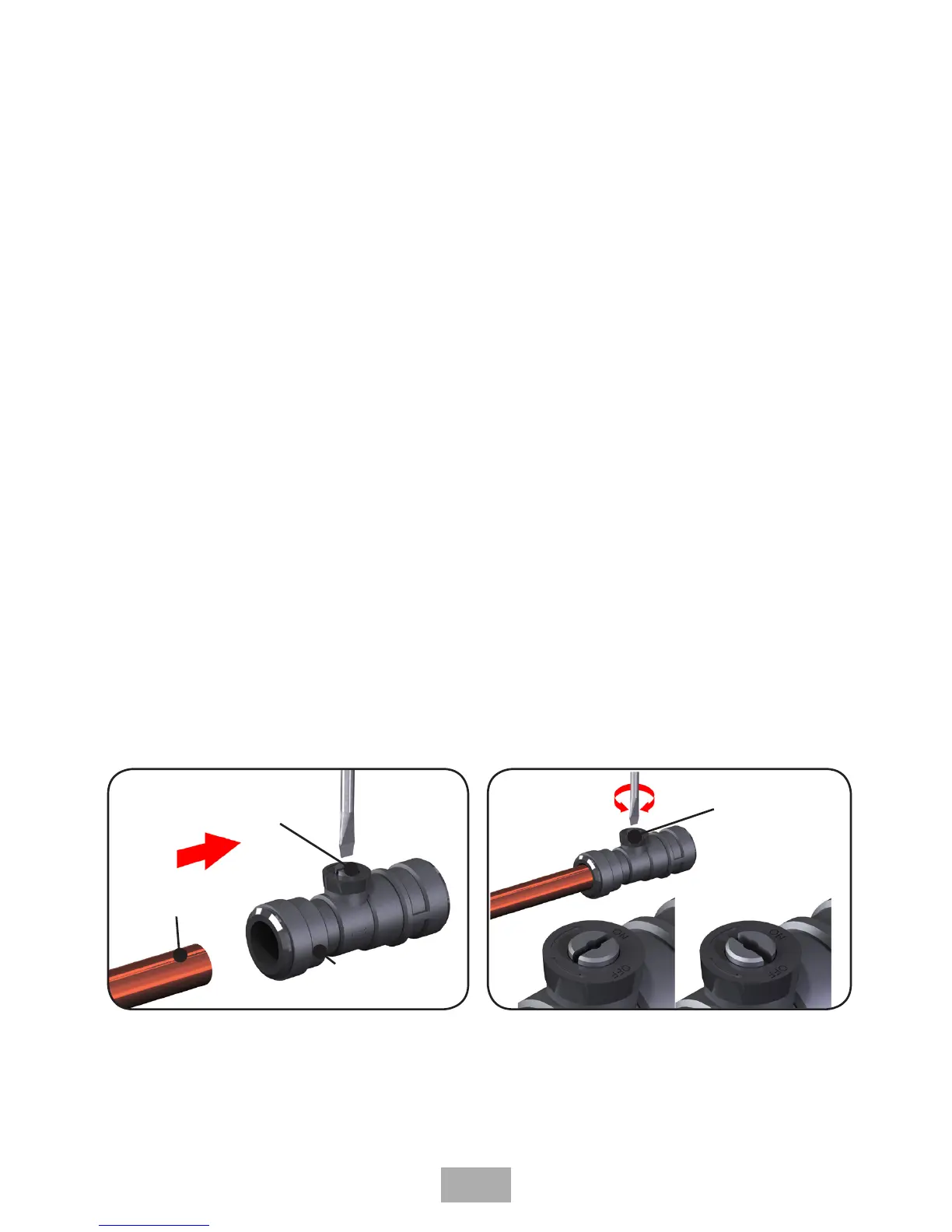

4. Insert the incoming pipework into the 15 mm push-fit connectors (Fig.10).
5. Check that the isolating valves on the inlet connectors are fully open (Fig.11).
For products that have more than one outlet then the above procedure of fitting the pipe
work will need to be conducted for each outlet.
All pipework should be insulated. DO NOT attempt to insulate or
cover the Digital Processor unit
15mm PUSH FIT
CONNECTOR
INCOMING
PIPE
ISOLATING VALVE
Fig.10
ON
OFF
Fig. 11
ISOLATING
VALVE
Mixer processor
installation
