27

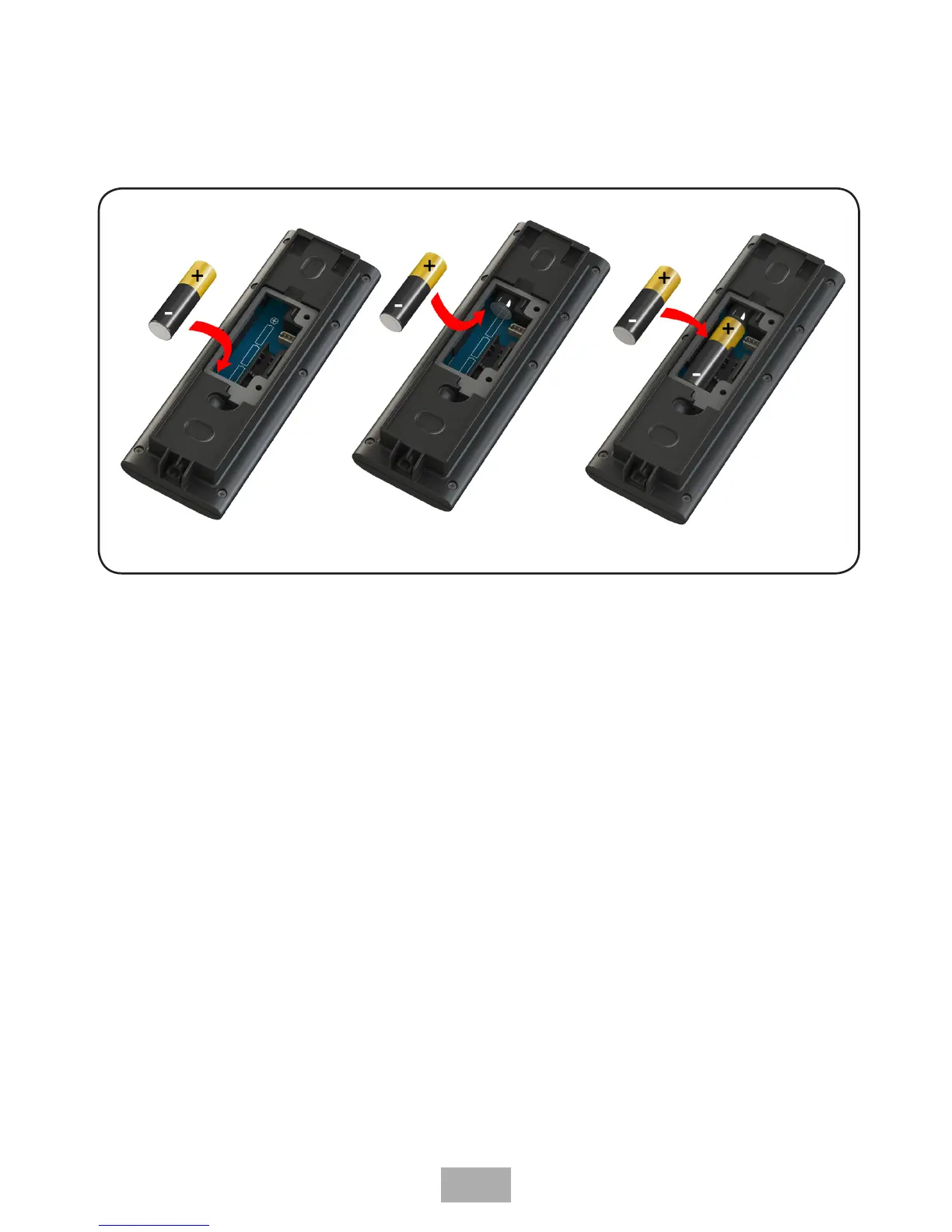

Make sure the tting of the batteries is carried out correctly
otherwise the PCB within the Digital Controller could be damaged.
Replace the Battery Compartment Cover and secure in place using the two fixing screws
previously removed.
Ensure that the Battery Compartment Cover sits flush with the rear housing of the Digital
Controller and that both retaining screws are tight (Fig 20). Do not over tighten the
screws.
Offer the Digital Controller up to the Fixing Bracket.
Fit Digital Controller cut-outs over the Bracket Fixing Lugs (Fig 23) and slide down into
place. Secure with the single screw at the bottom of the Digital Controller (Fig 24). Do
not over tighten the screw.
Digital controller
installation
1 2
3
Fig. 25
