MAINTENANCE AND ADJUSTMENT
100
▼ Tighten the lock nut.
cldc
4
1
2
3

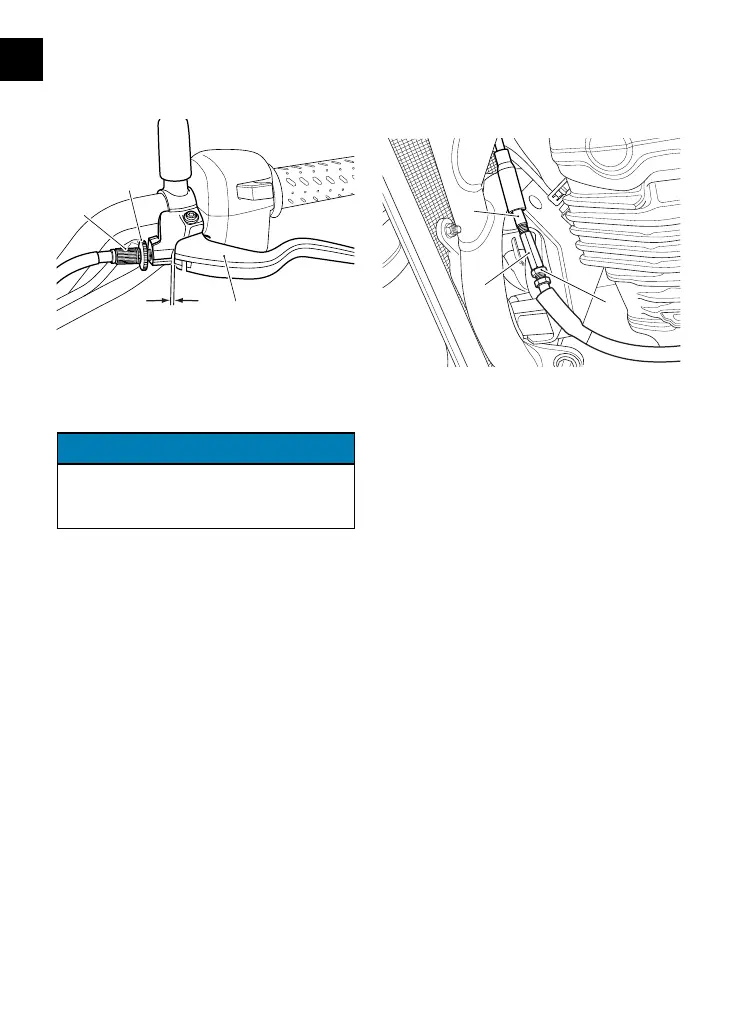

1. Clutch lever
2. Clearance
3. Adjuster sleeve
4. Adjuster lock nut
NOTICE
If correct adjustment cannot be made
using the lever adjuster, use the cable
adjuster at the lower end of the cable.
▼ If the clutch cable is loose, loosen
the lock nut and turn the clutch
cable adjuster clockwise to give 0.12
- 0.2 in (3.0 - 5.0 mm) in straight
handlebar condition of free play at
the clutch lever.
▼ If the clutch cable is tight, loosen
the lock nut and turn the clutch
cable adjuster counterclockwise
to give 0.12 - 0.2 in (3.0 - 5.0 mm) in
straight handlebar condition of free
play at the clutch lever.
▼ Tighten the lock nut to 11 lbf ft
(15 Nm).
clde
2
1
3
1. Adjuster lock nut
2. Clutch cable adjuster
3. Clutch outer cable
