MAINTENANCE AND ADJUSTMENT
112
NOTICE
To prevent paint damage, do not
spill brake fluid onto any area of the
bodywork.
Spilled brake fluid will damage
paintwork.

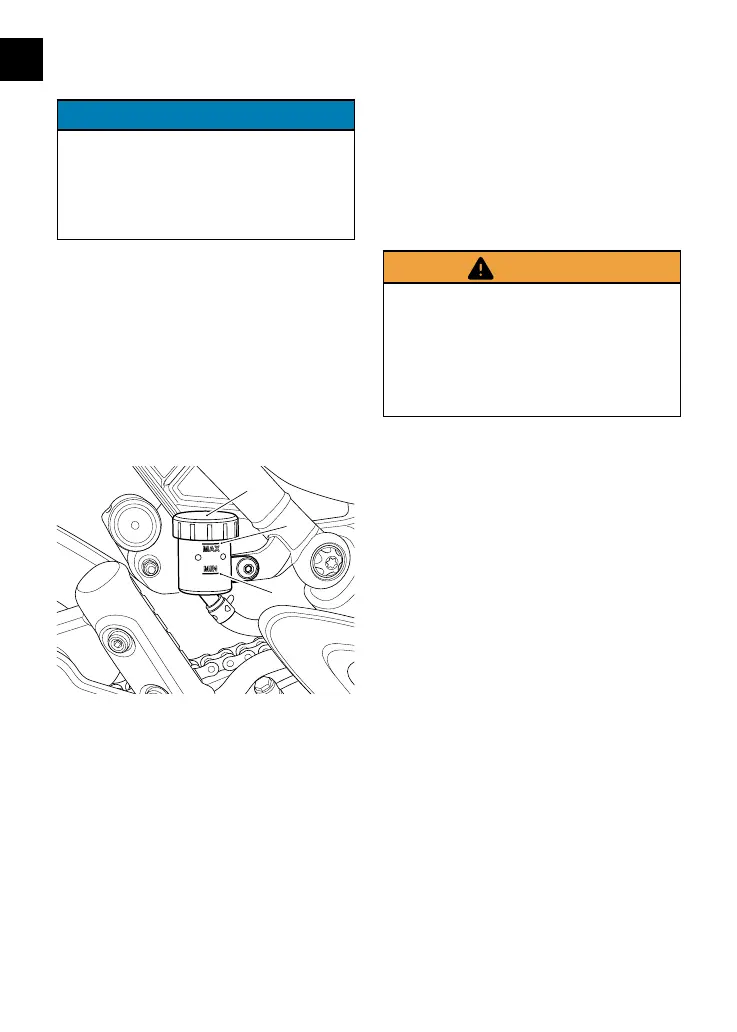

The reservoir is visible from the right
hand side of the motorcycle, forward of
the muffler and below the seat.
To inspect the rear brake fluid level:
▼ Check the level of brake fluid visible
in the reservoir.
▼ The brake fluid level must be kept
between the MAX and MIN marks
(reservoir held horizontal).
3
2
1
1. Reservoir
2. MAX mark
3. MIN mark
To adjust the rear brake fluid level:
▼ Remove the reservoir cap, and the
plastic spacer and diaphragm seal.
▼ Fill the reservoir to the MAX
mark using new DOT 4 brake fluid
from a sealed container. Triumph
Performance DOT 4 brake fluid is
recommended.
▼ Reinstall the reservoir cap making
sure that the plastic spacer
and diaphragm seal is correctly
positioned between the reservoir
cap and the reservoir.
Brake Light Switches
WARNING
Riding the motorcycle with defective
brake lights is illegal and dangerous.
Before riding the motorcycle, make
sure all lights are working.
Failure to follow the advice above
could result in serious injury or death.
The brake light is activated
independently by either the front or
rear brake. If, with the ignition in the ON
position, the brake light does not work
when the front brake lever is pulled
or the rear brake pedal is pressed, the
fault must be checked and rectified by
a competent person with the specialist
knowledge and technical understanding
of motorcycles, such as an authorized
Triumph dealer.
