MAINTENANCE AND ADJUSTMENT
131

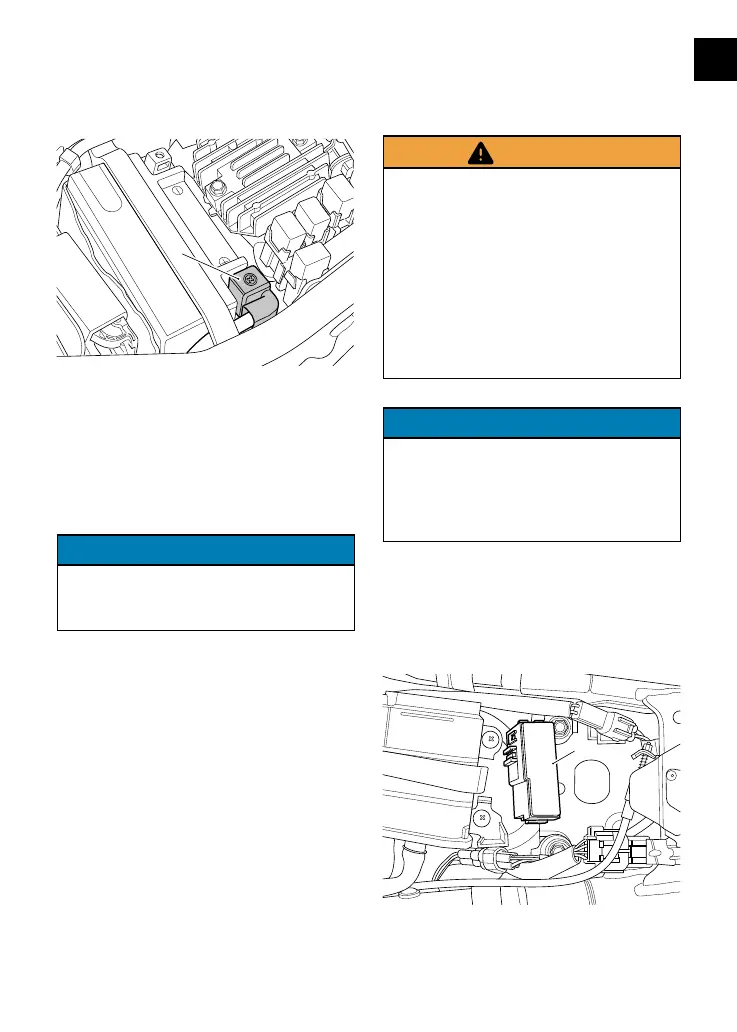

▼ Cover the positive (+) terminal with
the protective cover.
1
clfu_1
1. Positive (+) terminal cover
Speed 400
▼ Reinstall the seat, see page 58.
Scrambler 400 X
▼ Reinstall the rider and passenger
seats, see page 58.
NOTICE
Once the fuse has been reinstalled or
the battery reconnected the rider’s
settings should be reset as noted.
Fuses
WARNING
Always replace blown fuses with new
ones of the correct rating (as specified
on the fuse box cover).
Never replace a blown fuse with a fuse
of a different rating.
Use of an incorrect fuse could lead
to an electrical problem, resulting in
motorcycle damage and leading to
loss of motorcycle control which could
result in serious injury or death.
NOTICE
A blown fuse is indicated when all of
the systems protected by that fuse
become inoperative. When checking
for a blown fuse, use the table to
establish which fuse has blown.
Fuse box 1 is located underneath
the seat. To allow access to the fuse
box, the seat for Speed 400 and the
passenger seat for Scrambler 400 X
must be removed, see page 57.
clfb
1
1. Fuse box 1
