Side Panels
Side Panels - Removal
WARNING
Make sure the motorcycle is stabilized
and adequately supported.
Do not support the motorcycle on
any ancillary component, the exhaust
system or any other non structural
parts of the motorcycle frame.
A correctly supported motorcycle will
help prevent it from falling.
An unstable motorcycle may fall
resulting in motorcycle damage,
serious injury or death.
▼ Remove the seat for Speed 400 and
the rider and passenger seats for
Scrambler 400 X, see page 57.

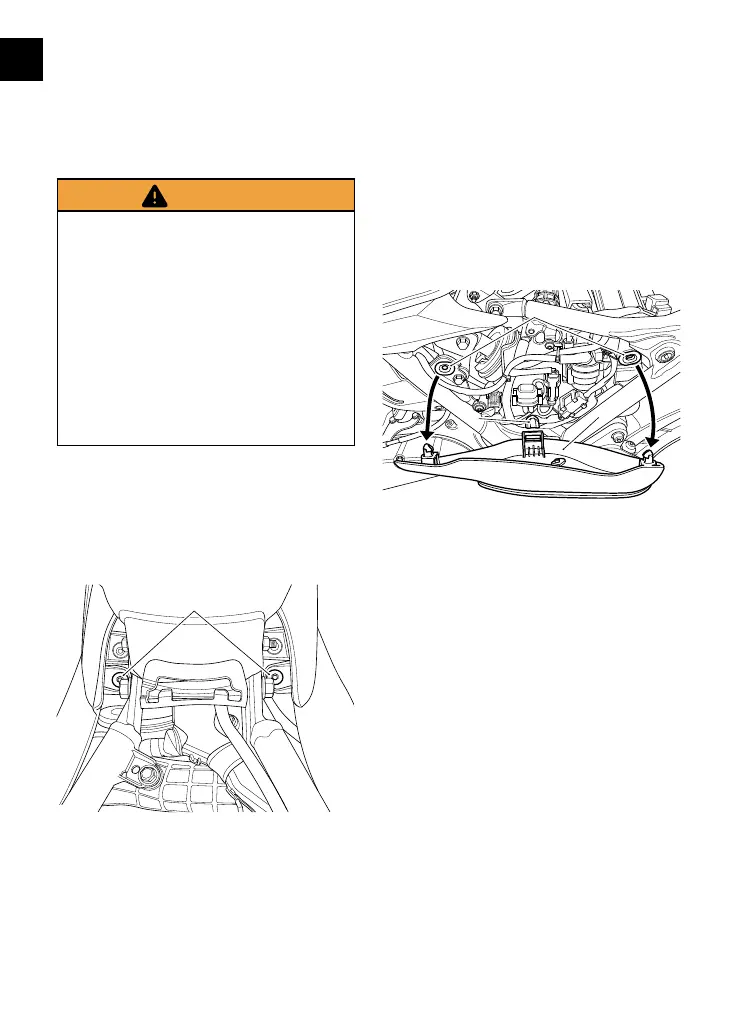

▼ Remove the fasteners at the top of
both side panels.
clgr
1
1. Fasteners
Left Hand Side Panel
To remove the left hand side panel:
▼ Grasp the panel firmly and pull the
panel away from the motorcycle
until it is free from the two retaining
grommets (leaving the grommets in
place).
▼ Lift the side panel upwards to
remove from the lower hook.
clec
2
1
3
1. Side panel (Scrambler 400 X shown)
2. Hook
3. Grommets
Right Hand Side Panel
To remove the right hand side panel:
▼ Grasp the panel firmly and pull the
panel away from the motorcycle
until it is free from the two retaining
grommets (leaving the grommets in
place).
