MAINTENANCE AND ADJUSTMENT
115
NOTICE
Use an open ended spanner to
counter-hold the mirror boss as the
mirror lock nut is loosened/tightened.
Failure to counter-hold the boss will
cause damage to the thread and the
mirror to become loose.
▼ Counter-hold the mirror boss and
loosen the mirror lock nut.
▼ Position the mirror arm to give rear
visibility in the riding position and
tighten the lock nut by hand.
▼ Counter-hold the mirror boss and
tighten the mirror lock nut to
16.6 lbf ft (22.5 Nm).
▼ Slide the rubber cover over the lock
nut.
cleu
1
4
2
3

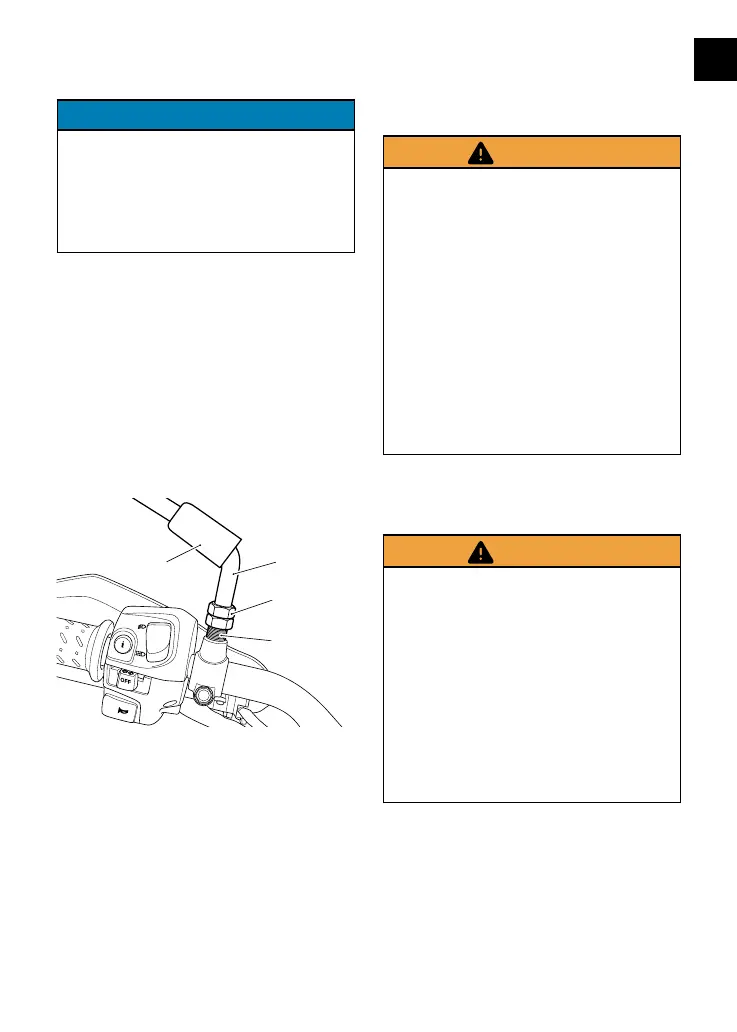

1. Mirror arm (Scrambler 400 X shown)
2. Lock nut
3. Mirror boss
4. Rubber cover
Steering/Wheel Bearings
WARNING
To prevent risk of injury from
the motorcycle falling during the
inspection, make sure that the
motorcycle is stabilized and secured
on a suitable support.
When inspecting steering and wheel
bearings, do not exert extreme force
against each wheel or rock each wheel
vigorously as this may cause the
motorcycle to become unstable and
fall from its support.
Failure to follow the advice above
could result in motorcycle damage,
serious injury or death.
Steering Bearings Inspection
WARNING
Make sure the motorcycle is stabilized
and adequately supported.
Do not support the motorcycle on
any ancillary component, the exhaust
system or any other non structural
parts of the motorcycle frame.
A correctly supported motorcycle will
help prevent it from falling.
An unstable motorcycle may fall
resulting in motorcycle damage,
serious injury or death.
