GENERAL INFORMATION
55
▼ Lift the side panel upwards to
remove from the lower hook.
clgc
2
3
1

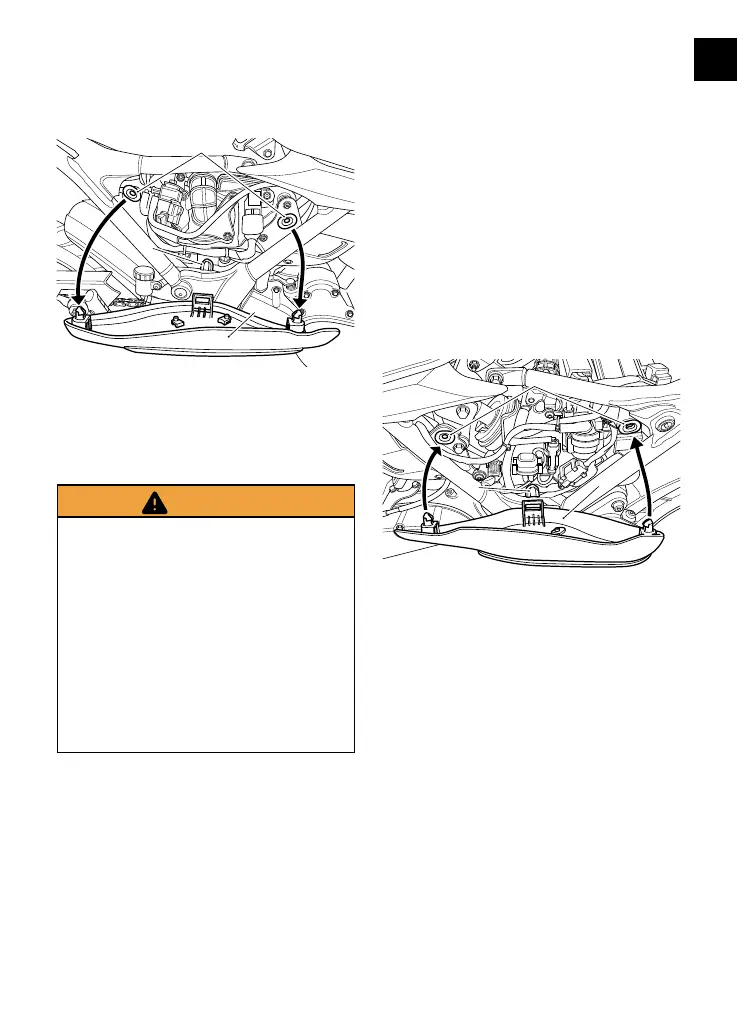

1. Side panel (Scrambler 400 X shown)
2. Hook
3. Grommets
Side Panel - Installation
WARNING
Make sure the motorcycle is stabilized
and adequately supported.
Do not support the motorcycle on
any ancillary component, the exhaust
system or any other non structural
parts of the motorcycle frame.
A correctly supported motorcycle will
help prevent it from falling.
An unstable motorcycle may fall
resulting in motorcycle damage,
serious injury or death.
Left Hand Side Panel
To install the left hand side panel:
▼ Position the bottom of the side
panel onto the lower hook.
▼ Position the two locating dowels to
the grommets, then press firmly to
secure the panel.
▼ Install the fastener at the top of the
side panel and tighten to 40 lbf in
(4.5 Nm).
▼ Finally, grasp the panel and make
sure it is fully retained.
clec_1
2
1
3
1. Side panel (Scrambler 400 X shown)
2. Hook
3. Grommets
