OVERVIEW
SYSTEM CONFIGURATION
GAIN / GUITAR TYPE / PITCH WINDOW / DOUBLE CLICK
BAT
e B G D A E
MENU
BAT
e B G D A
MENU
BAT
e B G D A
MENU
BACK
LEFT / RIGHT
E
E
E
ENTER

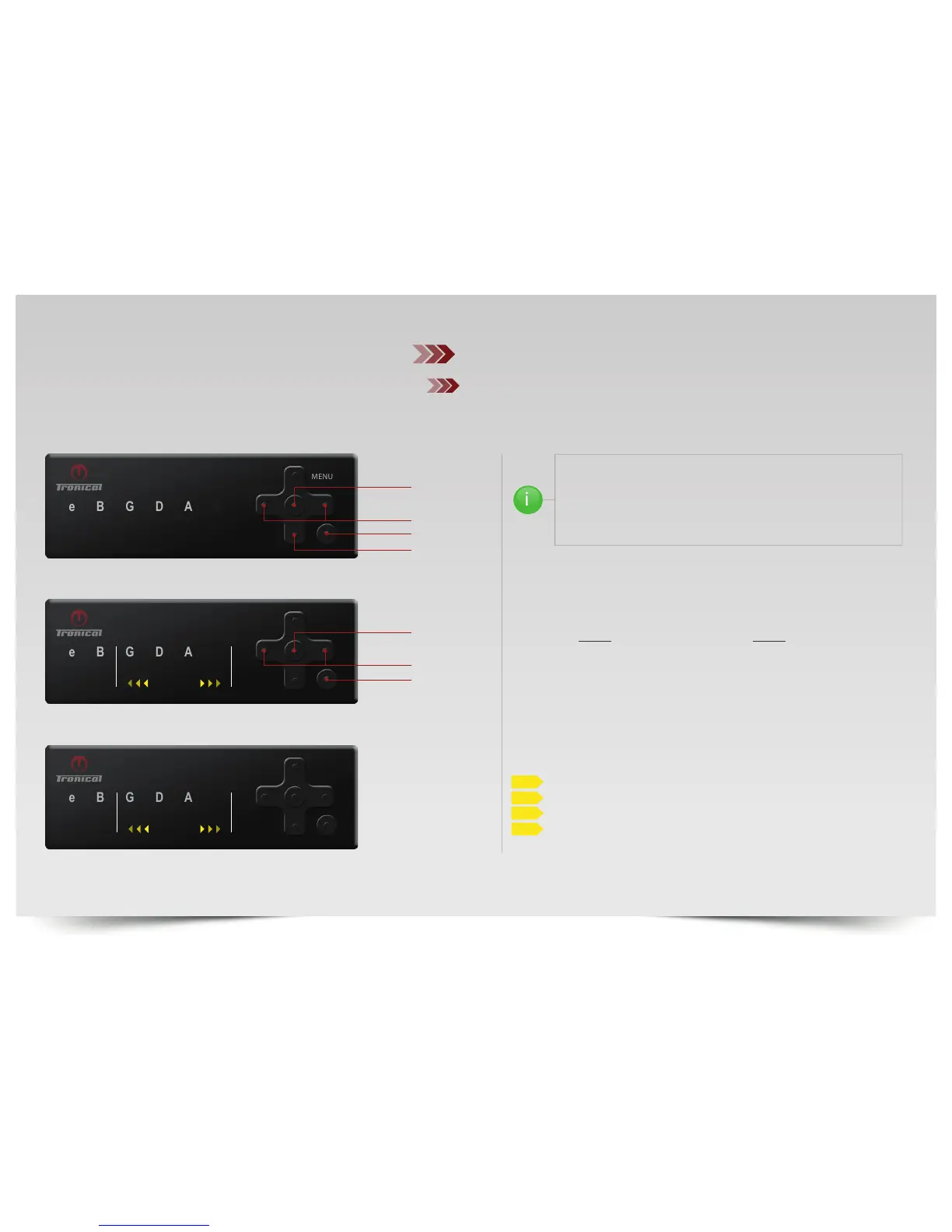

SYSTEM CONFIGURATION
SYSTEM CONFIGURATION
PUSH “ON“ button. The system comes up with the last completed tuning in
MULTISTRING MODE.
PUSH “BACK“ button to enter TUNING SELECTION MODE. MENU LED IS OFF.
TO ENTER SYSTEM CONFIGURATION
PRESS AND HOLD “RIGHT“ and PRESS AND HOLD “ENTER“ at the same time
by PRESSING IN BETWEEN BOTH BUTTONS.
“MENU“LED and “E“LED LIGHT UP YELLOW.
PRESS “LEFT/RIGHT“ to navigate through the menu E, A, D.
PRESS “ENTER“ to confrim or PRESS “BACK“ for TUNING SELECTION MODE.
THE SYSTEM CONFIGURATION MENU IS USED TO CONFIGURE
SYSTEM RELEVANT PARAMETERS LIKE GUITARTYPE, GAIN AND
FREQUENCY SNAP. THE CLICKSTREAM TO ENTER THIS MENU IS
MORE COMPLICATED TO PREVENT UNINTENDED CHANGES. THESE
SETTINGS ARE AFFECTING SYSTEM PERFORMANCE AND ACCURACY.
PLEASE STEP GENTLY.
ENTER
DOWN
LEFT / RIGHT
ON/BACK
SYSTEM CONFIGURATION OVERVIEW
GAIN PG. 32
GUITAR TYPE PG. 33
PITCH WINDOW PG.34
SINGLE OR DOUBLE CLICK FOR TUNE PG. 35
